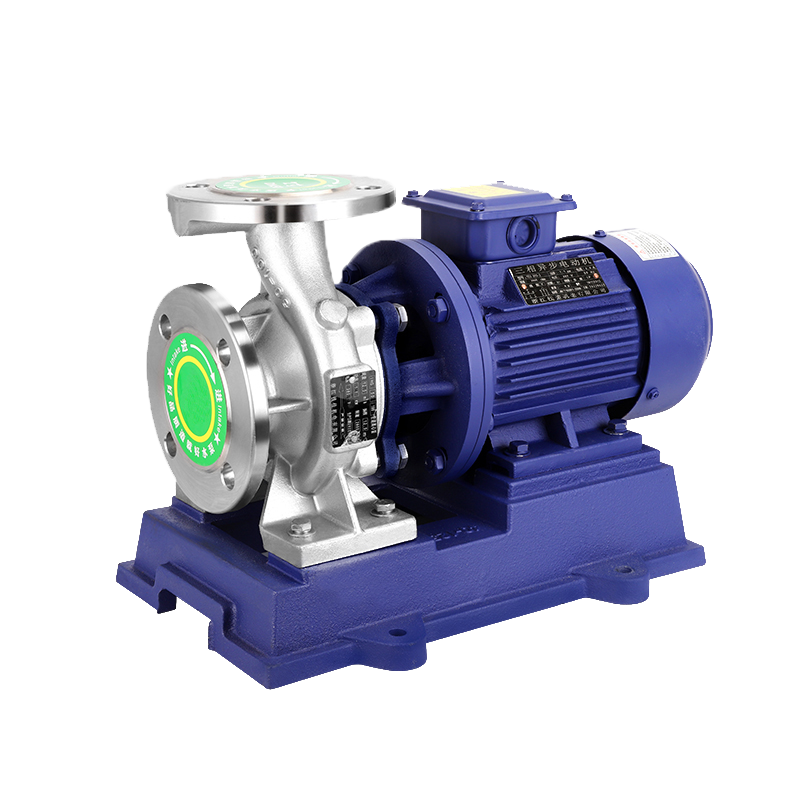

Stainless Steel Pipeline Pump

The stainless steel pipeline pump is a new generation of energy-saving and environmentally friendly horizontal centrifugal pump developed by Baihang on the basis of all technical staff absorbing the advanced technology of similar foreign products and adopting the performance parameters of domestic general centrifugal pumps. Depending on the medium, etc., based on the ISW type, series products suitable for hot water (ISWR), corrosion-resistant chemical pumps (ISWH), and oil pumps (ISWB) are derived. This series of pumps have excellent performance, high reliability, long life, reasonable structure and beautiful appearance, and are industry-leading.

Inquire Now

ADVANTAGE

Fast Delivery
Stock products: 3 days
Customized products: 15 days
After Sale Services
We offer 36 months warranty
OEM&ODM Available
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable
Service Support
Non-disclosure agreement
24-hour online video call after-sales service
Good sealing performance
Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

For conveying corrosive liquids of different concentrations

Material: stainless steel
Flow : 1.1~1800m³/h
Lift: 2.8~150m
Power: 0.12~160kw
Speed: 980~2900r/min

APPLICATION

Biomedical Industry
Electroplating Industry
Fine Chemical Industry
Nuclear Power Thermoelectric
Paper Industry
Petrochemical Industry

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

Model	Power(kw)	Weight(kg)	Flow(T)	Lift(m)	Rotating speed(N)	In/out caliber DN	Material
DYYC25-20-120	0.75	23	4	25	2875	25/20	SUS304/316
DYYC32-25-130	1.1	24	6	25	2875	32/25	SUS304/316
DYYC40-32-135	1.5	30	20	25	2880	32/32 40/32 25/25	SUS304/316
DYYC40-32-135	2.2	35	30	25	2870	40/32	SUS304/316
DYYC50-40-150	3	47	45	25	2880	40/32 50/40 50/32	SUS304/316
DYYC50-40-150	4	56	60	25	2915	50/32 50/40 65/50	SUS304/316
DYYC65-50-155	5.5	87	70	30	2935	65/50	SUS304/316
DYYC65-50-160	7.5	90	90	25	2935	65/50	SUS304/316
DYYC40-32-140	1.5-4	30	18	8	1450	25/20	SUS304/316
DYYC50-32-185	2.2-4	49	23	18	1450	50/32 50/40	SUS304/316
DYYC65-50-200	3-4	52	30	18	1440	50/40 50/32 65/50	SUS304/316
DYYC65-50-220	4-4	80	40	18	1450	65/50	SUS304/316
DYYC80-65-230	5.5-4	87	60	18	1450	80/65	SUS304/316
DYYC100-80-240	7.5-4	90	80	20	1450	100/80	SUS304/316

Expand all

STRUCTURE

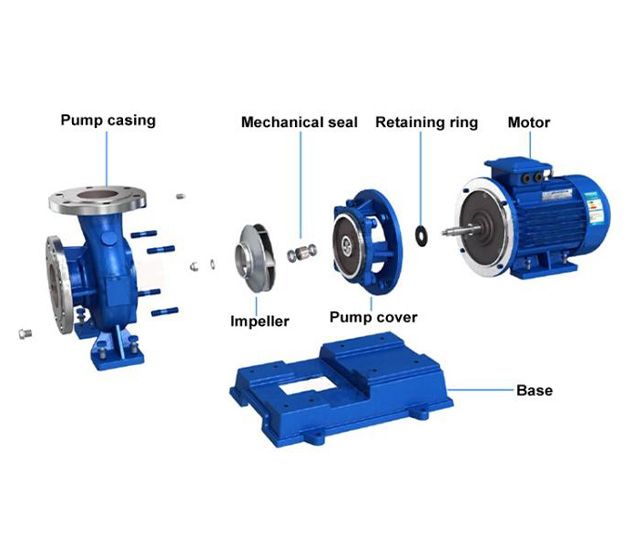

Horizontal pipeline pump structure diagram

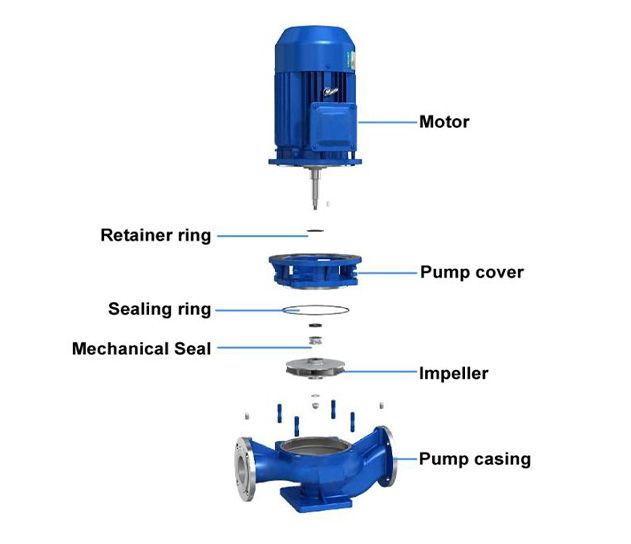

Vertical direct-coupled pump structure diagram

LATEST CASE

Fluorine-Lined Plastic Chemical Pump

Our products have unique advantages in chemical, pharmaceutical, petroleum, pickling liquid and other fields.

DETAILS

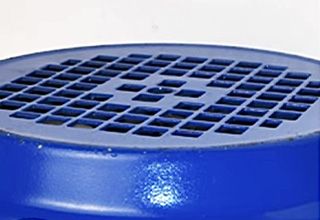

Cooling Fan Cover
Adopt honeycomb four-corner design to increase heat.
Reduce the hazards of shortened service life of water pumps due to heat.

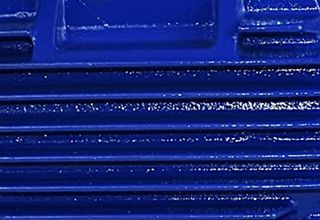

Shell Heat Sink
Adopt a design that lengthens and increases the number of heat sinks.
Fast cooling speed, extending the service life of the water pump.

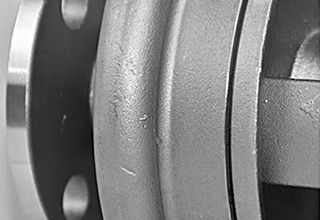

National Standard Flange Outlet
Convenient for connecting water pipes or welding.
Able to withstand greater pressure and feel safer and more secure.
Thickened Base
Thickened base is wear-resistant and corrosion-resistant.
More stable during use.

WORKING CONDITIONS

Product precautions

1. The pump set should be installed horizontally and fixed on a solid foundation, not affected by the vibration of other equipment;

2. Sufficient space should be reserved around the pump set to facilitate the maintenance and repair of the pump set;

3. The base area must be larger than the bottom plate area of the pump set;

4. There should be an adjustable liner between the bottom plate of the pump set and the foundation (for adjusting the level of the pump set);

5. During installation, care should be taken to prevent tools and sundries from falling into the pump cavity;

6. After installation, check whether the two parts of the coupling (pump coupling and electrical coupling) are misaligned. If there is a misalignment, adjust the alignment. The gap between the pump coupling and the electric coupling is preferably 1-2mm. After adjustment, turn the coupling by hand and it should turn freely;

7. Adjust the direction of the pump according to the direction of the arrow on the pump set before starting the machine. If the pump is run in reverse, damage to the pump set components will result. Check that the pump does not run for a long time when it is rotating, so as not to damage the mechanical seal due to the absence of liquid lubrication in the pump unit.
