Fluorine-Lined Plastic Chemical Pump

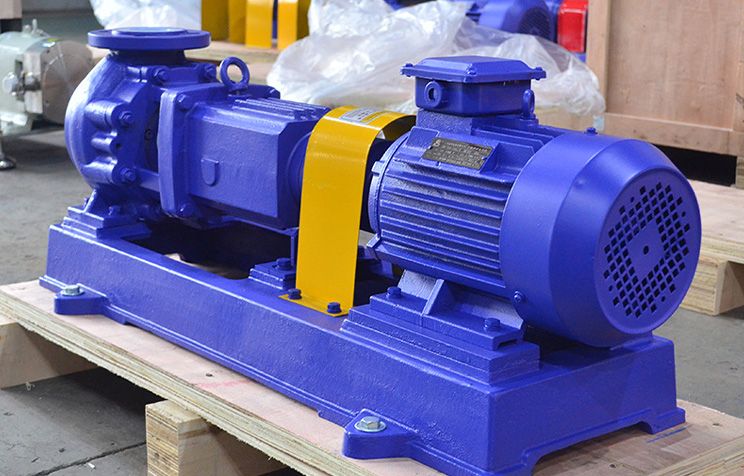

IHF type fluoroplastic alloy chemical centrifugal pump, the pump body is made of metal shell lined with fluoroplastic (F46/F4/PTFE/PFA). The pump cover and impeller are integrally sintered and pressed with metal inserts covered with fluoroplastics (F46/F4/PTFE/PFA). The pump has the advantages of corrosion resistance, wear resistance, high temperature resistance, strict and reliable sealing performance, and long service life. Applicable temperature: -20℃～150℃..
3~2600m³/h
Flow5~600m
Head0.55~500kw
Power
Fluorine-Lined Plastic Chemical Pump

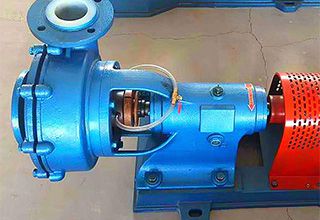

UHB type fluoroplastic chemical pump, the flow parts are made of steel lined with ultra-high molecular weight polyethylene (UHMWPE). It is used to transport various acid and alkaline liquids or slurry; various corrosive pulps in the smelting industry; various dilute acids in the sulfuric acid industry; various sewage in the environmental protection industry, etc. The pump is both corrosion-resistant and wear-resistant, and can be used in a wide range of applications.
3~2600m³/h
Flow5~600m
Head0.55~500kw
Power
The flow parts of this series of end-suction chemical pumps are made of steel lined with fluoroplastics. Its advantages are the best wear resistance, impact resistance (especially low temperature impact resistance), creep resistance (environmental stress cracking resistance) and excellent corrosion resistance among all plastics.
Adapt to various working conditions, such as transporting acid and alkali clear liquid or slurry; various corrosive pulps in the smelting industry; various dilute acids in the sulfuric acid industry; various sewage in the environmental protection industry, etc. The pump is both corrosion-resistant and wear-resistant, and has a wide range of applications.
ADVANTAGE
Stock products: 3 days
Customized products: 15 days
We offer 36 months warranty
We accept OEM&ODM for any quantity
All materials customizable
All capabilities customizable
Non-disclosure agreement
24-hour online video call after-sales service
Alloy seals of different materials are used to transport different media without leakage.
FUNCTION
For conveying corrosive liquids of different concentrations
UHB corrosion-resistant and wear-resistant mortar pump is used to transport 80% H2S04, HIC below 50%, various concentrations of HNO3, NaOH and other corrosive media. It can transport both clear liquid and slurry.
IHF fluorine-lined chemical pumps can transport any concentration of H2S04, HIC, HNO3, NaOH, strong oxidants and other strong corrosive media for a long time.
APPLICATION
Biomedical Industry
Electroplating Industry
Fine Chemical Industry
Nuclear Power Thermoelectric

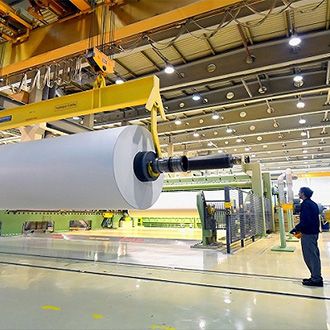

Paper Industry

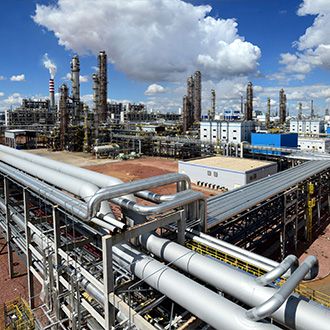

Petrochemical Industry
Do You Have Any Questions In Your Mind?
Ask us we will solve your questions and try to send free sample kit of your requested matierial
SPECIFICATION
| Performance parameter table | |||||||
| Model | Flow (m3/h) | Head (m) | Speed (r/min) | Power(kw) | Inlet and outlet diameter (mmXmm) | Weight (kg) | |
| Shaft | Motor | ||||||
| 40UHB-ZK-10-30 | 10 | 30 | 2900 | 2.2 | 3 | 40×32 | 130 |
| 40UHB-ZK-15-25 | 15 | 25 | 2900 | 2.7 | 3 | ||
| 40UHB-ZK-7.5-6 | 7.5 | 6 | 1450 | 0.4 | 0.75 | ||
| 40UHB-ZK-18-20 | 18 | 20 | 2900 | 2.6 | 3 | ||
| 40UHB-ZK-10-18 | 10 | 18 | 2900 | 1.3 | 2.2 | ||
| 40UHB-ZK-15-15 | 15 | 15 | 2900 | 1.7 | 2.2 | ||
| 50UHB-ZK-15-32 | 15 | 32 | 2900 | 3.5 | 5.5 | 50×40 | 170 |
| 50UHB-ZK-20-30 | 20 | 30 | 2900 | 4.3 | 5.5 | ||
| 50UHB-ZK-20-7.5 | 10 | 7.5 | 1450 | 0.6 | 1.1 | ||
| 50UHB-ZK-25-28 | 25 | 28 | 2900 | 5 | 5.5 | ||
| 50UHB-ZK-10-35 | 10 | 35 | 2900 | 3.2 | 4 | ||
| 50UHB-ZK-12-40 | 12 | 40 | 2900 | 3.8 | 5.5 | ||
| 50UHB-ZK-15-43 | 15 | 43 | 2900 | 5.6 | 7.5 | ||
| 50UHB-ZK-20-20 | 20 | 20 | 2900 | 3 | 4 | ||
| 50UHB-ZK-25-18 | 25 | 18 | 2900 | 3.2 | 4 | ||
| 50UHB-ZK-30-15 | 30 | 15 | 2900 | 3.1 | 4 | ||
| 65UHB-ZK-30-25 | 30 | 25 | 2900 | 5.3 | 5.5 | 65×50 | 220 |
| 65UHB-ZK-35-20 | 35 | 20 | 2900 | 5.1 | 5.5 | ||
| 65UHB-ZK-40-15 | 40 | 15 | 2900 | 4.5 | 5.5 | ||
| 65UHB-ZK-30-32 | 30 | 32 | 2900 | 6.5 | 7.5 | ||
| 65UHB-ZK-15-8 | 15 | 8 | 1450 | 0.9 | 1.1 | ||
| 65UHB-ZK-35-25 | 35 | 25 | 2900 | 6.2 | 7.5 | ||
| 65UHB-ZK-40-20 | 40 | 20 | 2900 | 5.9 | 7.5 | ||
| 65UHB-ZK-10-45 | 10 | 45 | 2900 | 4.8 | 7.5 | ||
| 65UHB-ZK-5-11 | 5 | 11 | 1450 | 0.6 | 1.1 | ||
| 65UHB-ZK-10-40 | 10 | 40 | 2900 | 4.2 | 5.5 | ||
| 65UHB-ZK-20-50 | 20 | 50 | 2900 | 8.7 | 11 | ||
| 65UHB-ZK-10-12.5 | 10 | 12.5 | 1450 | 1.2 | 2.2 | ||
| 65UHB-ZK-30-50 | 30 | 50 | 2900 | 12 | 15 | ||
| 65UHB-ZK-15-12.5 | 15 | 12.5 | 1450 | 1.6 | 2.2 | ||
| 65UHB-ZK-30-40 | 30 | 40 | 2900 | 9.6 | 11 | ||
| 80UHB-ZK-40-20 | 40 | 20 | 2900 | 5.8 | 7.5 | 80×65 | 270 |
| 80UHB-ZK-45-18 | 45 | 18 | 2900 | 6.1 | 7.5 | ||
| 80UHB-ZK-50-15 | 50 | 15 | 2900 | 5.6 | 7.5 | ||
| 80UHB-ZK-35-45 | 35 | 45 | 2900 | 108 | 11 | ||
| 80UHB-ZK-17.5-11 | 17.5 | 11 | 1450 | 1.5 | 2.2 | ||
| 80UHB-ZK-40-35 | 40 | 35 | 2900 | 10.2 | 11 | ||
| 80UHB-ZK-45-32 | 45 | 32 | 2900 | 10.1 | 11 | ||
| 80UHB-ZK-60-30 | 60 | 30 | 2900 | 12.6 | 15 | ||
| 80UHB-ZK-45-50 | 45 | 50 | 2900 | 14.8 | 15 | ||
| 80UHB-ZK-22.5-12.5 | 22.5 | 12.5 | 1450 | 2.3 | 3 | ||
| 80UHB-ZK-50-40 | 55 | 40 | 2900 | 15 | 15 | ||
| 100UHB-ZK-50-58 | 50 | 58 | 2900 | 21 | 22 | 100×80 | 370 |
| 100UHB-ZK-50-50 | 50 | 50 | 2900 | 17.5 | 18.5 | ||
| 100UHB-ZK-60-50 | 60 | 50 | 2900 | 21.5 | 22 | ||
| 100UHB-ZK-60-40 | 60 | 40 | 2900 | 16.8 | 18.5 | ||
| 100UHB-ZK-60-30 | 60 | 30 | 2900 | 13.8 | 15 | ||
| 100UHB-ZK-70-45 | 70 | 45 | 2900 | 22.1 | 22 | ||
| 100UHB-ZK-80-35 | 80 | 35 | 2900 | 17.8 | 18.5 | ||
| 100UHB-ZK-100-27 | 100 | 27 | 2900 | 18.4 | 18.5 | ||
| 100UHB-ZK-80-15 | 80 | 15 | 2900 | 10.2 | 11 | ||
| 100UHB-ZK-100-20 | 100 | 20 | 2900 | 15 | 15 | ||
| 100UHB-ZK-80-50 | 80 | 50 | 2900 | 27 | 30 | ||
| 100UHB-ZK-100-45 | 100 | 45 | 2900 | 28 | 30 | ||
| 100UHB-ZK-50-11 | 50 | 11 | 1450 | 4.2 | 5.5 | ||
| 100UHB-ZK-120-40 | 120 | 40 | 2900 | 28.5 | 30 | ||
| 100UHB-ZK-145-28 | 145 | 28 | 2900 | 29.5 | 30 | ||
| 100UHB-ZK-80-30 | 80 | 30 | 2900 | 17.5 | 18.5 | ||
| 100UHB-ZK-100-25 | 100 | 25 | 2900 | 17.9 | 18.5 | ||
| 100UHB-ZK-120-20 | 120 | 20 | 2900 | 17.2 | 18.5 | ||
| 100UHB-ZK-140-15 | 140 | 15 | 2900 | 16.8 | 18.5 | ||
| 100UHB-ZK-100-20 | 100 | 20 | 2900 | 14.9 | 15 | ||
| 100UHB-ZK-120-15 | 120 | 15 | 2900 | 14.2 | 15 | ||
| 100UHB-ZK-140-10 | 140 | 10 | 2900 | 14.5 | 15 | ||
| 125UHB-ZK-100-40 | 100 | 40 | 2900 | 28.8 | 30 | 125×100 | 480 |
| 125UHB-ZK-120-35 | 120 | 35 | 2900 | 29.4 | 30 | ||
| 125UHB-ZK-140-25 | 140 | 25 | 2900 | 25 | 30 | ||
| 125UHB-ZK-120-32 | 120 | 32 | 2900 | 26.8 | 30 | ||
| 125UHB-ZK-140-28 | 140 | 28 | 2900 | 27.6 | 30 | ||
| 125UHB-ZK-160-24 | 160 | 24 | 2900 | 28.1 | 30 | ||
| 125UHB-ZK-120-20 | 120 | 20 | 2900 | 17.2 | 18.5 | ||
| 125UHB-ZK-140-18 | 140 | 18 | 2900 | 21 | 22 | ||
| 125UHB-ZK-150-15 | 150 | 15 | 2900 | 21.5 | 22 | ||
| 125UHB-ZK-80-15 | 80 | 15 | 1450 | 10.2 | 11 | ||
| 150UHB-ZK-120-25 | 120 | 25 | 1450 | 22 | 30 | 150×125 | 1000 |
| 150UHB-ZK-80-11 | 80 | 11 | 980 | 8.9 | 11 | ||
| 150UHB-ZK-150-20 | 150 | 20 | 1450 | 24.5 | 30 | ||
| 150UHB-ZK-180-30 | 180 | 30 | 1450 | 35.5 | 37 | ||
| 150UHB-ZK-210-26 | 210 | 26 | 1450 | 36.4 | 37 | ||
| 150UHB-ZK-148-11 | 1748 | 11 | 870 | 15 | 15 | ||
| 150UHB-ZK-240-24 | 240 | 24 | 1450 | 37 | 37 | ||
| 150UHB-ZK-270-20 | 270 | 20 | 1450 | 36 | 37 | ||
| 150UHB-ZK-190-18 | 190 | 18 | 1450 | 22 | 22 | ||
| 150UHB-ZK-135-8 | 135 | 8 | 980 | 10.5 | 11 | ||
| 150UHB-ZK-260-16 | 260 | 16 | 1450 | 28 | 30 | ||
| 150UHB-ZK-270-14 | 280 | 14 | 1450 | 28.2 | 30 | ||
| 150UHB-ZK-120-40 | 120 | 40 | 1450 | 33.6 | 37 | ||
| 150UHB-ZK-150-40 | 150 | 40 | 1450 | 42 | 45 | ||
| 150UHB-ZK-121-18 | 121 | 18 | 980 | 12.8 | 15 | ||
| 150UHB-ZK-200-32 | 200 | 32 | 1450 | 44 | 45 | ||
| 150UHB-ZK-250-30 | 250 | 30 | 1450 | 44.5 | 45 | ||
| 150UHB-ZK-300-25 | 300 | 25 | 1450 | 45 | 45 | ||
| 200UHB-ZK-320-32 | 320 | 21 | 1450 | 55 | 55 | 200×150 | 1200 |
| 200UHB-ZK-210-14 | 210 | 14 | 980 | 18.4 | 18.5 | ||
| 200UHB-ZK-350-28 | 350 | 28 | 1450 | 88 | 55 | ||
| 200UHB-ZK-400-25 | 400 | 25 | 1450 | 70 | 75 | ||
| 200UHB-ZK-250-45 | 250 | 45 | 1450 | 74 | 75 | ||
| 200UHB-ZK-168-20 | 168 | 20 | 980 | 27 | 30 | ||
| 200UHB-ZK-300-38 | 300 | 38 | 1450 | 72 | 75 | ||
| 200UHB-ZK-350-34 | 350 | 34 | 1450 | 73.8 | 75 | ||
| 200UHB-ZK-320-24 | 320 | 24 | 1450 | 42 | 45 | ||
| 200UHB-ZK-215-10 | 215 | 10 | 980 | 15.6 | 18.5 | ||
| 200UHB-ZK-350-20 | 340 | 20 | 1450 | 43 | 45 | ||
| 200UHB-ZK-400-18 | 400 | 18 | 1450 | 44 | 45 | ||
| 200UHB-ZK-500-12 | 500 | 12 | 1450 | 45 | 45 | ||
| 250UHB-ZK-400-45 | 400 | 45 | 1450 | 112 | 132 | 250×200 | 1450 |
| 250UHB-ZK-270-20 | 270 | 20 | 980 | 35 | 37 | ||
| 250UHB-ZK-500-37 | 500 | 37 | 1450 | 118 | 132 | ||
| 250UHB-ZK-600-30 | 600 | 30 | 1450 | 120 | 132 | ||
| 250UHB-ZK-400-32 | 400 | 32 | 1450 | 85 | 90 | ||
| 250UHB-ZK-270-14 | 270 | 15 | 980 | 25 | 30 | ||
| 250UHB-ZK-500-26 | 500 | 26 | 1450 | 79 | 90 | ||
| 250UHB-ZK-600-20 | 600 | 20 | 1450 | 84 | 90 | ||
Expand all
STRUCTURE

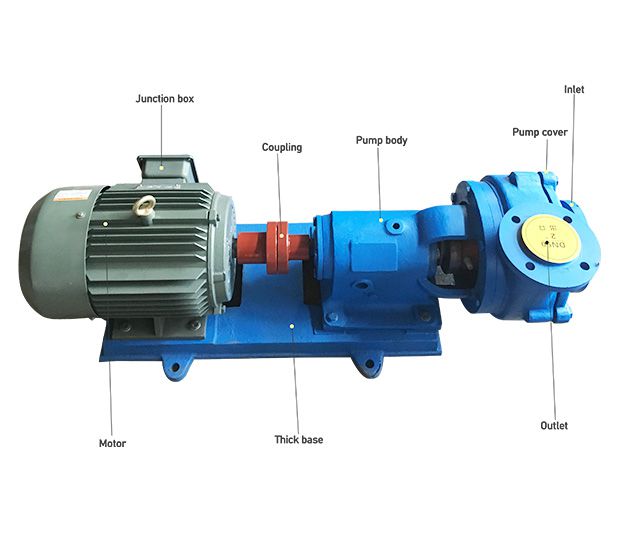

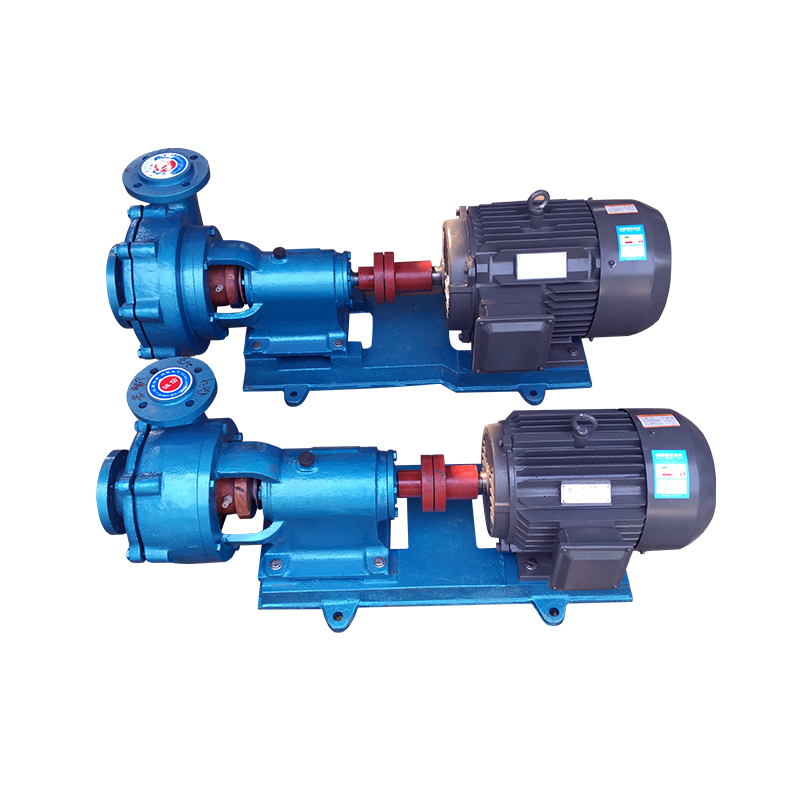

UHB series corrosion-resistant wear-resistant mortar pump

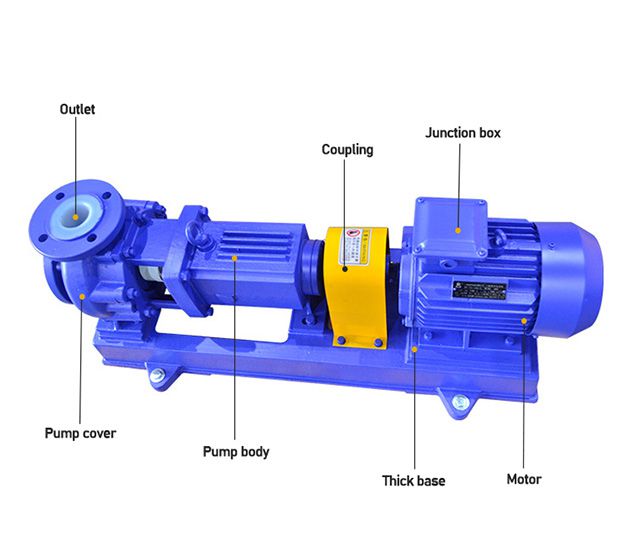

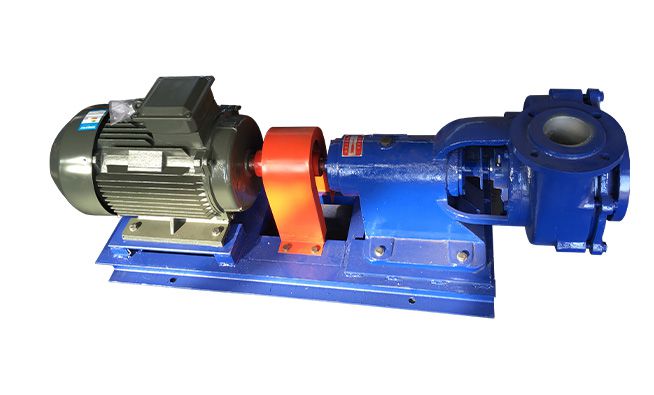

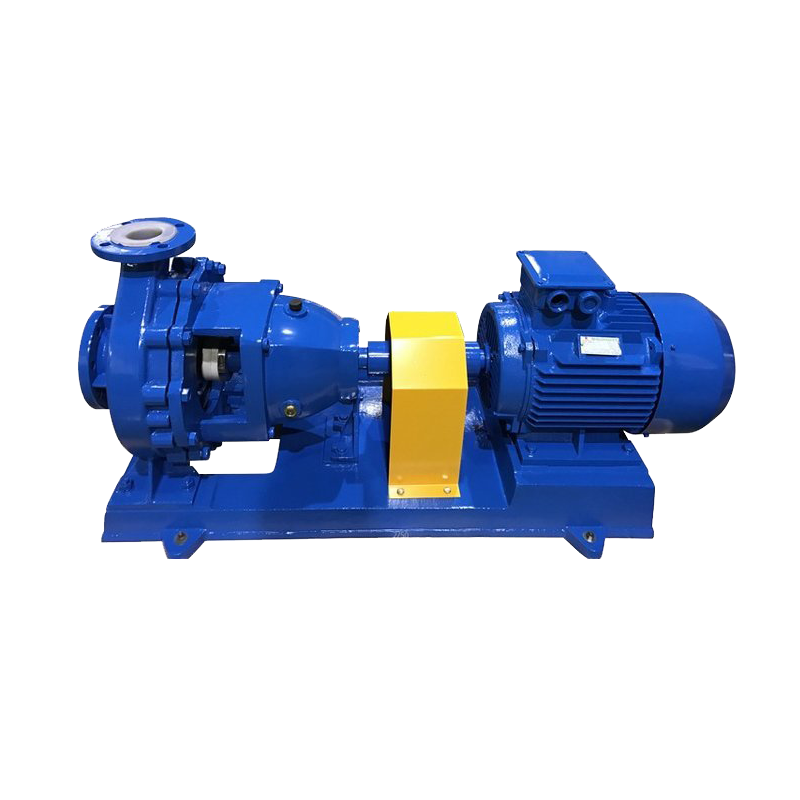

IHF series fluorine-lined plastic chemical centrifugal pump
DETAILS

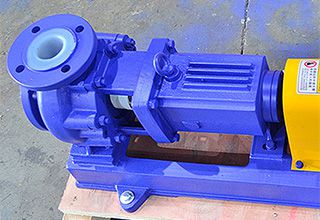

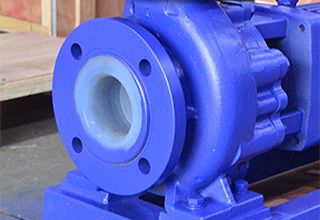

Steel lined with fluoroplastic
Anti-shedding, anti-cracking
Corrosion-resistant and wear-resistant, durable.
Steel lined with fluoroplastic
Tortoiseshell mesh lining to prevent cracking, deformation, and shedding
Corrosion resistance, wear resistance, long service life, etc.

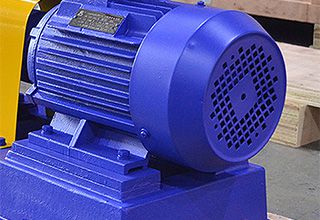

Thicken the heat dissipation mesh cover to increase the heat dissipation power.
Extend motor life.

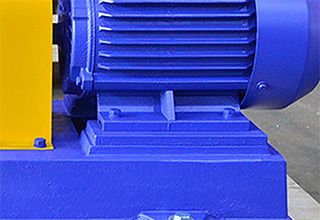

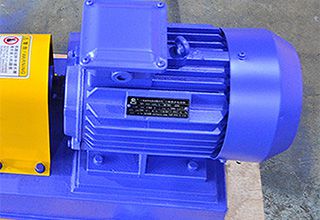

High-sealed full iron box,
To a greater extent, the safety of electricity consumption is guaranteed.
Direct connection with standard flange joints can improve work efficiency.
100% copper wire motor
Protection class: IP68
Explosion-proof motors can be equipped under special working conditions
WORKING CONDITIONS
Product precautions
1. The pump set should be installed horizontally and fixed on a solid foundation, not affected by the vibration of other equipment;
2. Sufficient space should be reserved around the pump set to facilitate the maintenance and repair of the pump set;
3. The base area must be larger than the bottom plate area of the pump set;
4. There should be an adjustable liner between the bottom plate of the pump set and the foundation (for adjusting the level of the pump set);
5. During installation, care should be taken to prevent tools and sundries from falling into the pump cavity;
6. After installation, check whether the two parts of the coupling (pump coupling and electrical coupling) are misaligned. If there is a misalignment, adjust the alignment. The gap between the pump coupling and the electric coupling is preferably 1-2mm. After adjustment, turn the coupling by hand and it should turn freely;
7. Adjust the direction of the pump according to the direction of the arrow on the pump set before starting the machine. If the pump is run in reverse, damage to the pump set components will result. Check that the pump does not run for a long time when it is rotating, so as not to damage the mechanical seal due to the absence of liquid lubrication in the pump unit.
