Stainless Steel Chemical Pump

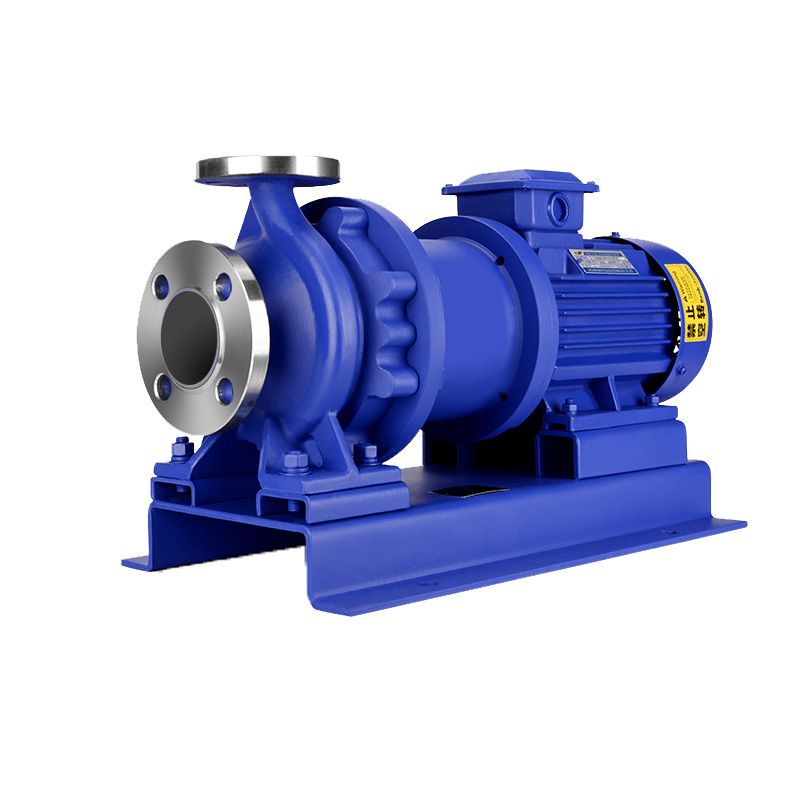

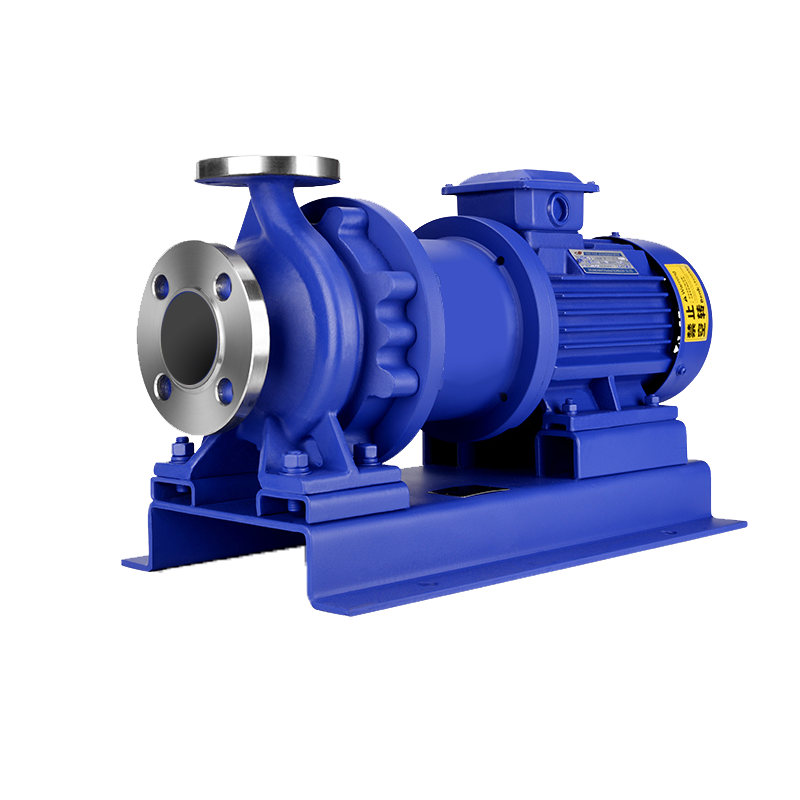

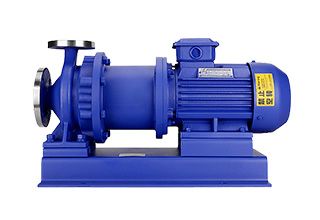

CQB magnetic drive pump is composed of motor, magnetic coupling and corrosion-resistant pump body. Its main feature is the use of magnetic coupling to transmit power without leakage at all. When the motor drives the outer magnetic steel of the magnetic coupling to rotate, the magnetic line of force acts on the inner magnetic steel through the gap and the spacer sleeve, so that the pump rotor and the motor rotate synchronously. , to transmit torque without mechanical contact. At the power input end of the pump shaft, there is no leakage at all because the liquid is sealed in the stationary spacer sleeve and there is no dynamic seal.
3.2~400m³/h
Flow4.2~80m
Head0.55~90kw
Power
Stainless Steel Chemical Pump

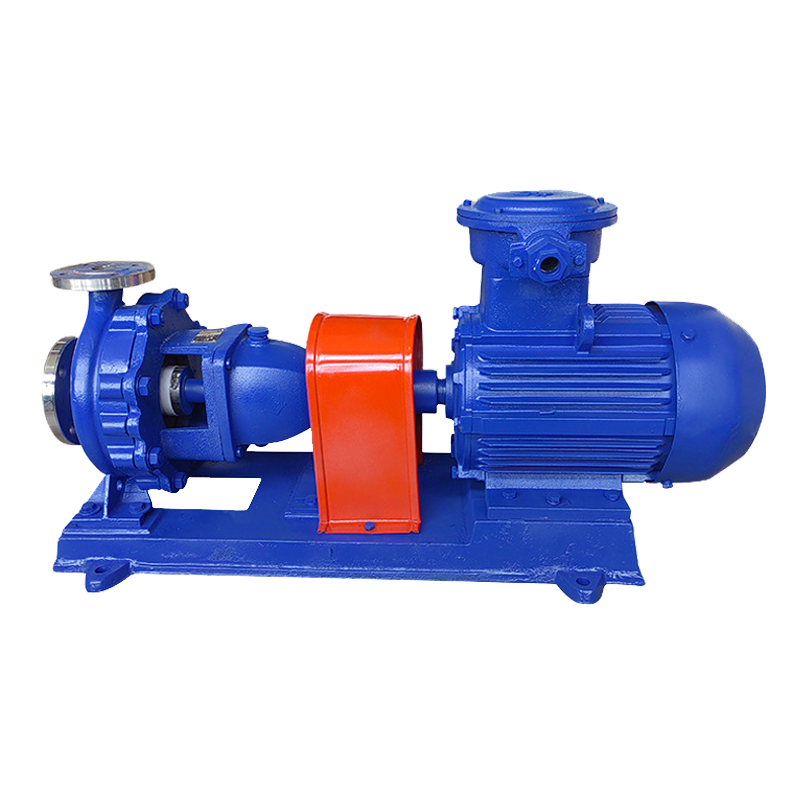

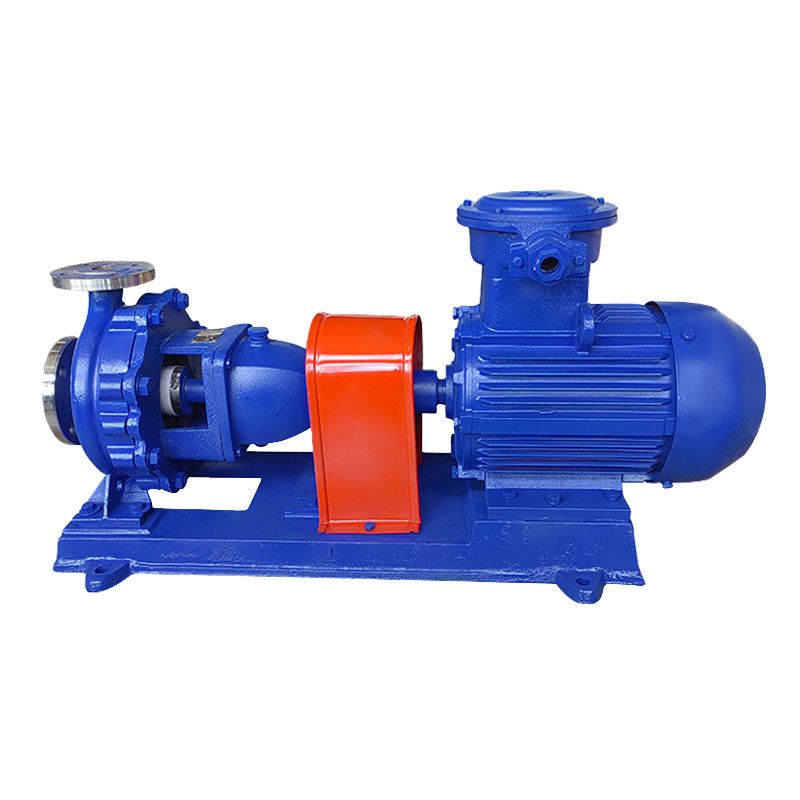

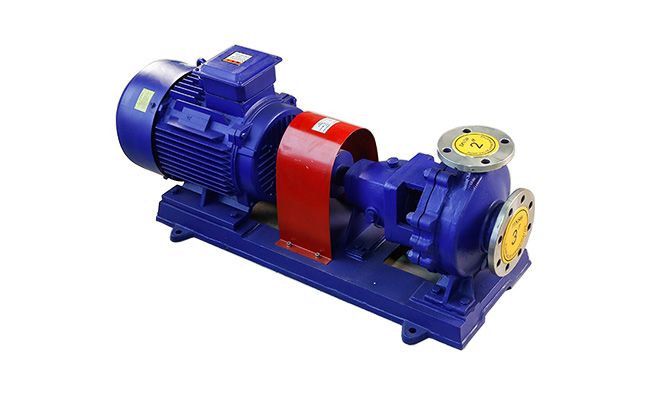

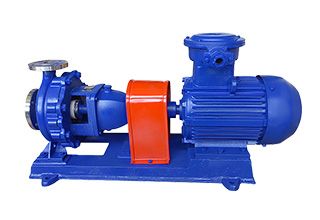

IH series stainless steel chemical pumps are mainly composed of pump body, pump cover, impeller, shaft, sealing ring, intermediate bracket, sealing parts and suspension parts. The pump body and pump cover constitute the working chamber of the pump, the oil inlet is horizontal to the pump body, and the outlet is vertical upward. Its advantage is easy maintenance. There is no need to disassemble the pump body, pipeline and motor, just remove the intermediate connecting piece of the extended coupling, and then the rotor can be taken out for maintenance.
3.2~400m³/h
Flow4.2~80m
Head0.55~90kw
Power
IH series chemical pumps and CQB series magnetic drive pumps are both made of 304/316 stainless steel. IH type stainless steel chemical pump is a horizontal end suction structure. It has the advantages of convenient maintenance and high work efficiency. The flow part of CQB magnetic drive pump is made of all stainless steel, which has strong wear resistance and ensures the service life of the product. It is an ideal pump for conveying toxic, flammable, explosive and corrosive media without leakage.
ADVANTAGE
Stock products: 3 days
Customized products: 15 days
We offer 36 months warranty
We accept OEM&ODM for any quantity
All materials customizable
All capabilities customizable
Non-disclosure agreement
24-hour online video call after-sales service
Alloy seals of different materials are used to transport different media without leakage.
FUNCTION
For conveying corrosive liquids of different concentrations
The maximum working pressure of the IH series stainless steel chemical pump is 1.6MPa. The main parts of the pump's flow-through part can be selected from different materials according to the corrosiveness of the conveying medium. Suitable for transporting corrosive clean water chemical liquids.
The CQB series stainless steel magnetic pump has a maximum working pressure of 1.6MPa, a temperature not exceeding 100°C, a density not exceeding 1600kg/m3, and a viscosity not exceeding 30×10-6m2/S without hard liquid particles and fibers. It is an ideal equipment for transporting flammable, explosive, volatile, toxic, rare and precious liquids and various corrosive
APPLICATION

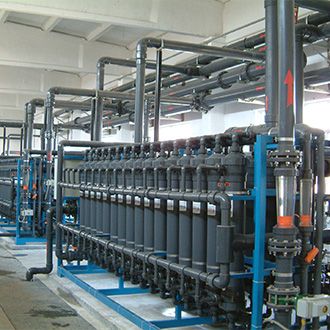

Biopharmaceutical
Electroplating Industry

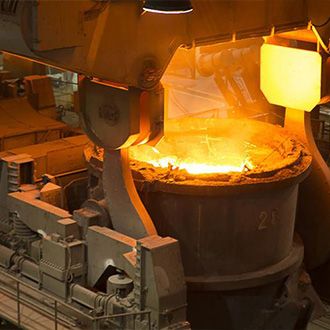

Ferrous Metallurgy

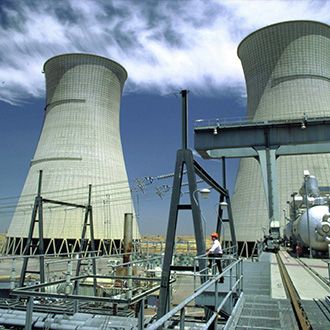

Nuclear Power Thermoelectric

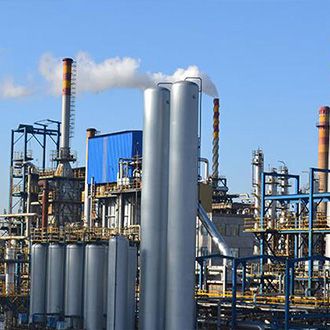

Petrochemical
Do You Have Any Questions In Your Mind?
Ask us we will solve your questions and try to send free sample kit of your requested matierial
SPECIFICATION
| Performance parameter table | ||||||
| Model | Speed 2900r/min | Speed 1450r/min | ||||
| Flow | Head | Power | Flow | Head | Power | |
| (m3/h) | (m) | (KW) | (m3/h) | （m） | （KW） | |
| IH25-25-125 | 3.2 | 20 | 1.1 | 1.6 | 5 | 0.55 |
| IH25-25-160 | 32 | 2.2 | 8 | 0.55 | ||
| IH25-25-200 | 50 | 5.5 | 12.5 | 0.75 | ||
| IH25-25-250 | 80 | 7.5 | 20 | 1.5 | ||
| IH40-32-125 | 6.3 | 20 | 1.5 | 3.2 | 5 | 0.55 |
| IH40-32-160 | 32 | 3 | 8 | 0.55 | ||
| IH40-32-200 | 50 | 5.5 | 12.5 | 1.1 | ||
| IH40-32-250 | 80 | 11 | 20 | 2.2 | ||
| IH50-32-125 | 12.5 | 20 | 3 | 6.3 | 5 | 0.55 |
| IH50-32-160 | 32 | 4 | 8 | 0.55 | ||
| IH50-32-200 | 50 | 7.5 | 12.5 | 1.5 | ||
| IH50-32-250 | 80 | 15 | 20 | 2.2 | ||
| IH65-50-125 | 25 | 20 | 3 | 12.5 | 5 | 0.55 |
| IH65-50-160 | 32 | 5.5 | 8 | 0.75 | ||
| IH65-40-200 | 50 | 11 | 12.5 | 1.5 | ||
| IH65-40-250 | 80 | 18.5 | 20 | 3 | ||
| IH65-40-315 | 125 | 30 | 32 | 5.5 | ||
| IH80-65-125 | 50 | 20 | 5.5 | 25 | 5 | 0.75 |
| IH80-65-160 | 32 | 11 | 8 | 1.5 | ||
| IH80-50-200 | 50 | 15 | 12.5 | 2.2 | ||
| IH80-50-250 | 80 | 30 | 20 | 4 | ||
| IH80-50-315 | 125 | 45 | 32 | 7.5 | ||
| IH100-80-125 | 100 | 20 | 11 | 50 | 5 | 1.5 |
| IH100-80-160 | 32 | 15 | 8 | 2.2 | ||
| IH100-65-200 | 50 | 22 | 12.5 | 4 | ||
| IH100-65-250 | 80 | 37 | 20 | 5.5 | ||
| IH100-65-315 | 125 | 75 | 32 | 11 | ||
| IH125-100-200 | 200 | 50 | 45 | 100 | 12.5 | 7.5 |
| IH125-100-250 | 80 | 75 | 20 | 11 | ||
| IH125-100-315 | 125 | 75 | 32 | 18.5 | ||
| IH125-100-400 | 50 | 30 | ||||
| IH150-125-250 | 200 | 20 | 18.5 | |||
| IH150-125-315 | 32 | 30 | ||||
| IH150-125-400 | 50 | 45 | ||||
| IH200-150-250 | 400 | 20 | 37 | |||
| IH200-150-315 | 32 | 55 | ||||
| IH200-150-400 | 50 | 90 | ||||
Expand all
DETAILS

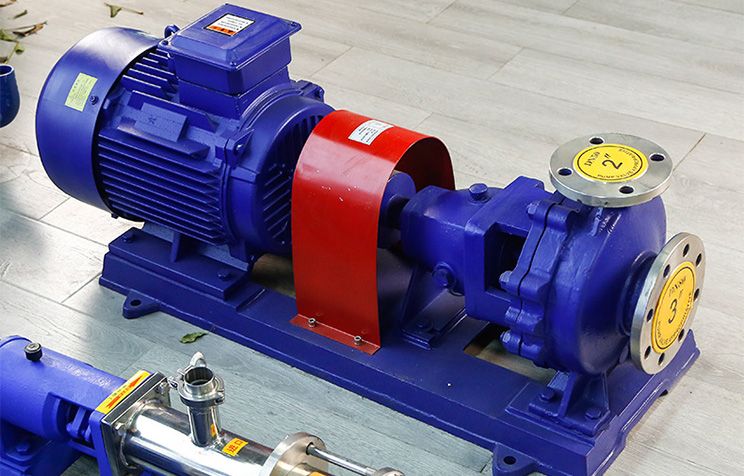

The pump is an electric end-suction chemical pump, and the temperature of the conveying medium is -20°C to 150°C. Equipped with a double-end mechanical seal cooling device, the delivery temperature can reach 280°C.
Excellent wear resistance
Anti-acid and alkali corrosion
Suitable for common acid and alkali corrosive liquids and food and medicine
Stainless steel 316L pump body
higher wear resistance
Excellent acid and alkali corrosion resistance
Suitable for strong acid and strong alkali corrosion liquid food and medicine and laboratory
Coupling plus protective cover
All-round protection is safer
100% copper wire motor
Protection class: IP68
Explosion-proof motors can be equipped under special working conditions

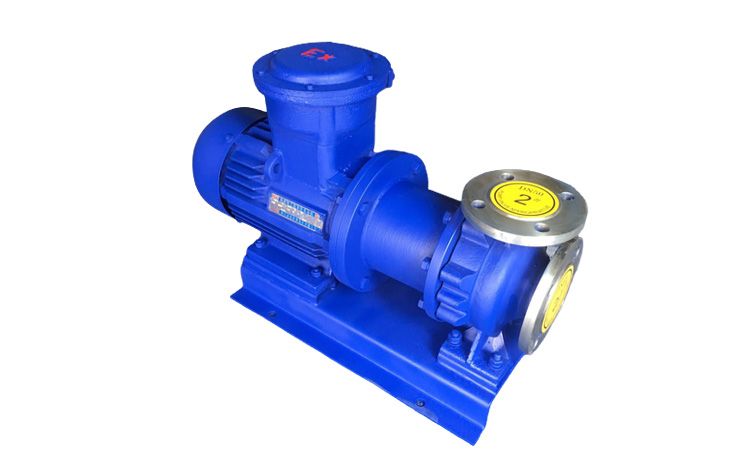

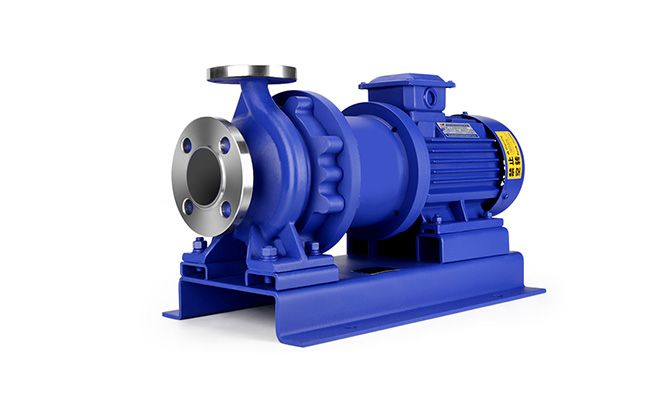

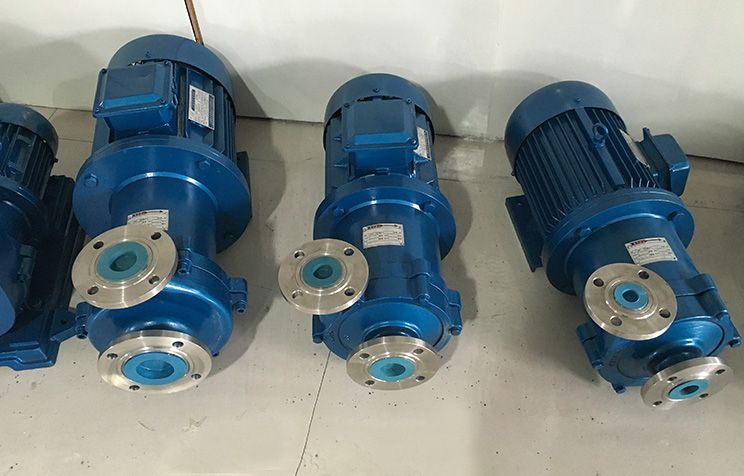

The pump is designed without shaft seal and is completely sealed. The flow part of the pump is made of all stainless steel. Suitable for petroleum, chemical, pharmaceutical, smelting, electroplating, environmental protection, food, film and television printing, water treatment and other industries
Excellent wear resistance
Anti-acid and alkali corrosion
Suitable for common acid and alkali corrosive liquids and food and medicine
Stainless steel 316L pump body
Higher wear resistance
Excellent acid and alkali corrosion resistance
Suitable for strong acid and strong alkali corrosion liquid food and medicine and laboratory
100% copper wire motor
Protection class: IP68
Explosion-proof motors can be equipped under special working conditions
Choose a thickened anti-shock base, strong and shock-absorbing
Easy to install and use, longer service life
WORKING CONDITIONS
Installation and debugging
