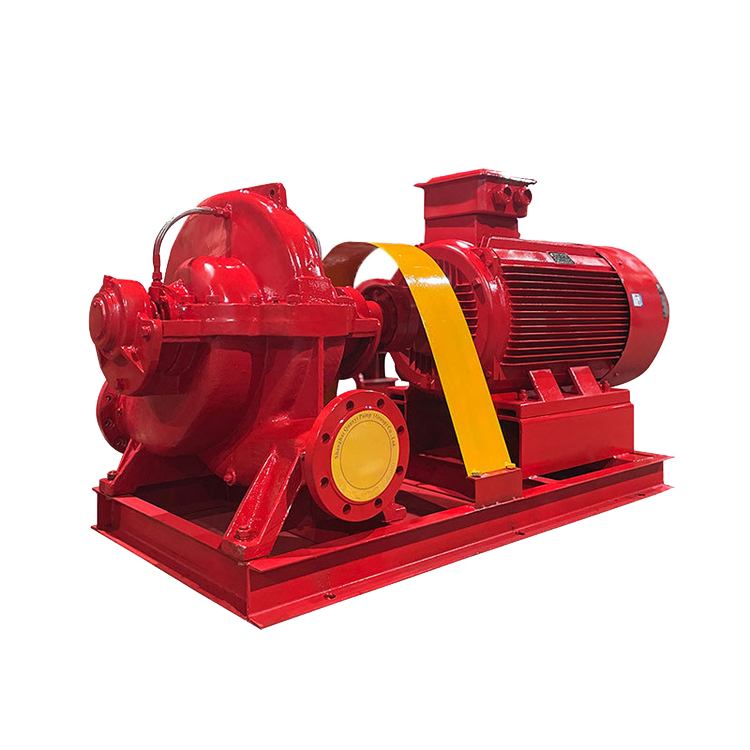

Flexible Coupled Series

SH type pump is a single-stage, double-suction, centrifugal pump with a center-opening pump casing, used for pumping clean water and liquids with physical and chemical properties similar to hand water.
When the head of this type of pump is 9 meters to 140 meters, the flow rate is 126 m³/h to 12500 m³/h. The maximum temperature of the liquid shall not exceed 80°C. It is suitable for factories, mines, urban water supply, power stations, large water conservancy projects, and farmland irrigation. It is used for drainage and waterlogging. The 48SH-22 large-scale pump can also be used as a circulation pump for thermal power stations.

Inquire Now

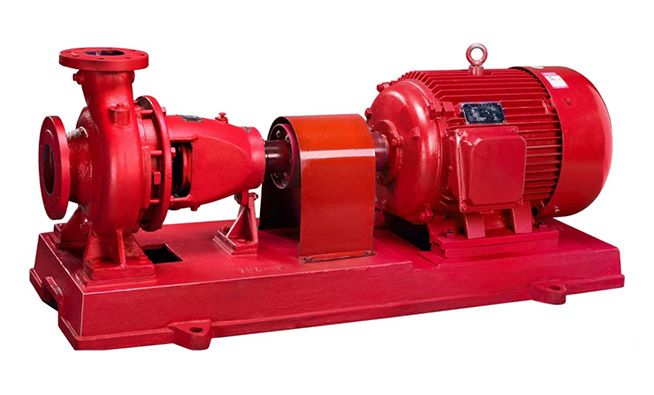

Flexible Coupled Series

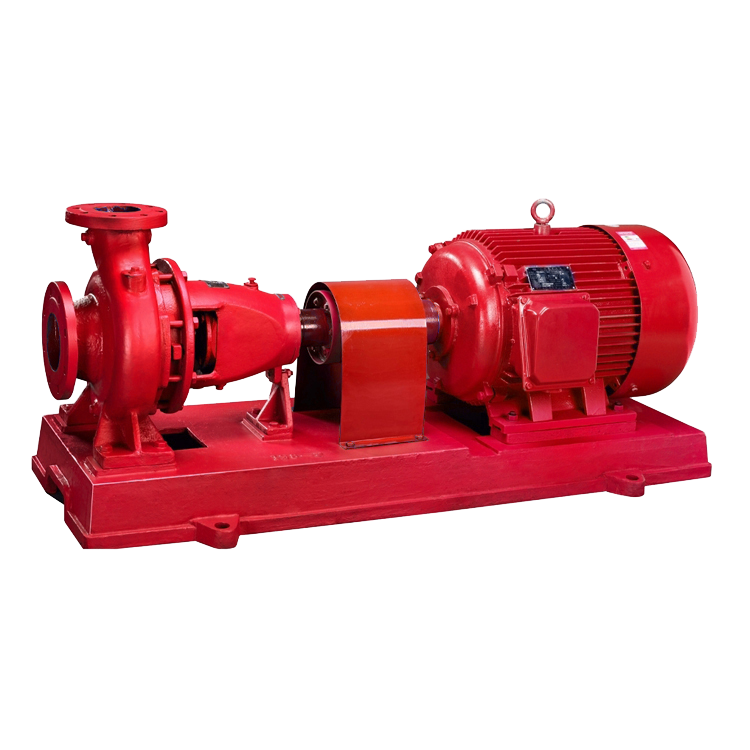

The I IS type pump is a single-stage single-suction centrifugal pump, designed in accordance with the international standard ISO2858. It is an updated product of the BA type water pump. It is suitable for industrial and urban water supply and drainage, and can also be used for agricultural drainage and irrigation. For conveying clean water or other liquids with physical and chemical properties similar to clean water, the temperature does not exceed 80°C.

Inquire Now

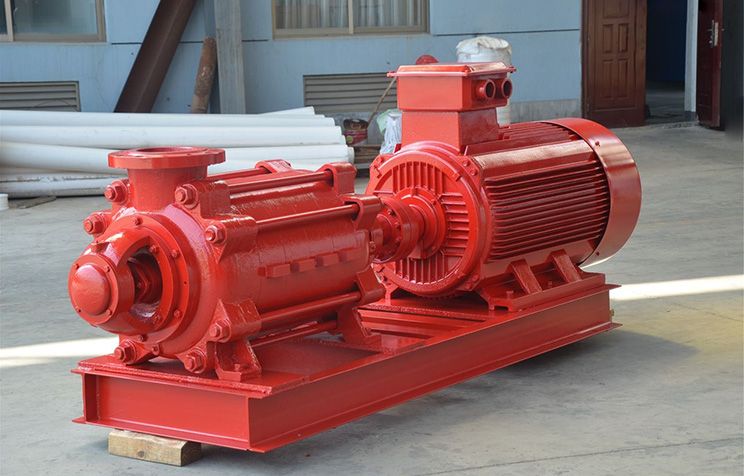

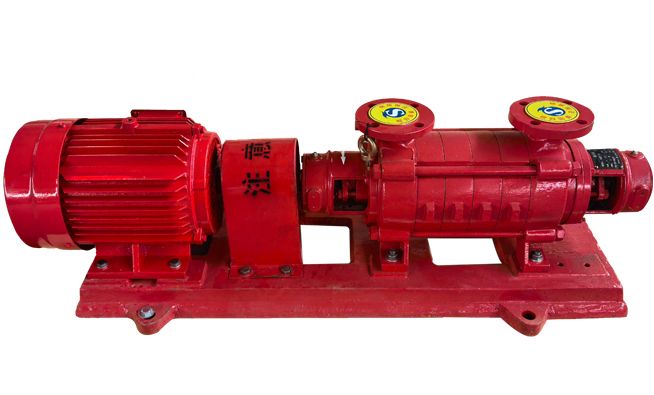

Flexible Coupled Series

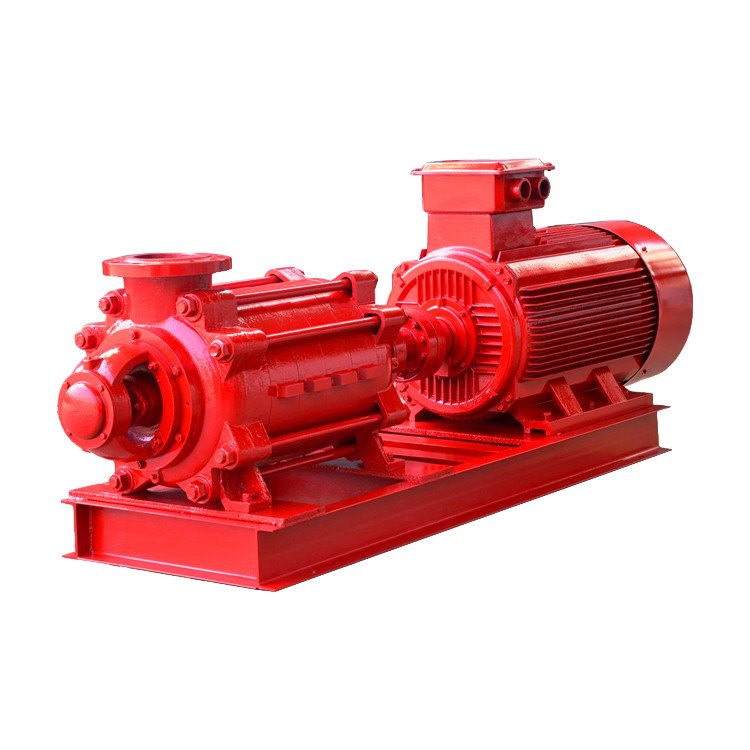

Type D and DC pumps are horizontal multi-stage centrifugal pumps. It is suitable for transporting clean water (containing impurities less than 1% and particle size less than 0.1 mm) and other liquids with physical and chemical properties similar to clean water.
The temperature of the medium transported by the D-type pump is not greater than 80°. It is suitable for mine drainage, factories, urban water supply and other occasions.
The temperature of the medium transported by the DG pump is not greater than 105°. It is suitable for small boiler feed water pumps or similar hot water transportation.

Inquire Now

Flexible Coupled Series

Flexible coupled fire fighting pump series, this series of products have the characteristics of environmental protection, high efficiency and energy saving, low noise, stable operation and reliable performance. It is mainly used in fire hydrant fire extinguishing, automatic sprinkler fire extinguishing and other fire extinguishing systems in industrial and mining enterprises, engineering construction, high-rise buildings and other fixed fire extinguishing systems.

Inquire Now

ADVANTAGE

Fast Delivery
Stock products: 3 days
Customized products: 15 days
After Sale Services
We offer 36 months warranty
OEM&ODM Available
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable
Service Support
Non-disclosure agreement
24-hour online video call after-sales service
Good sealing performance
Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

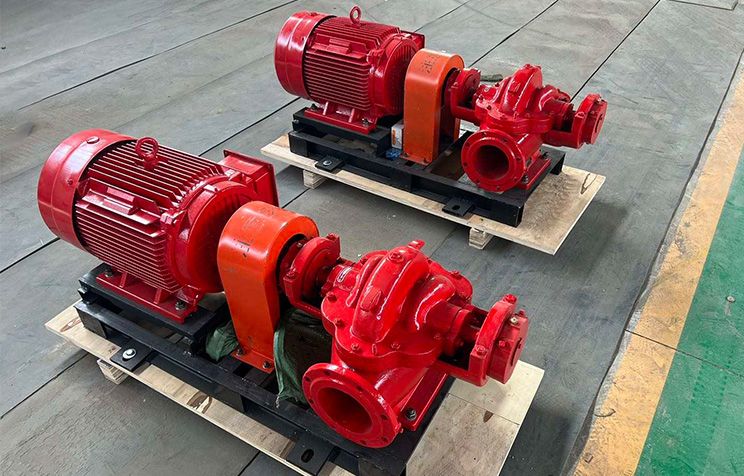

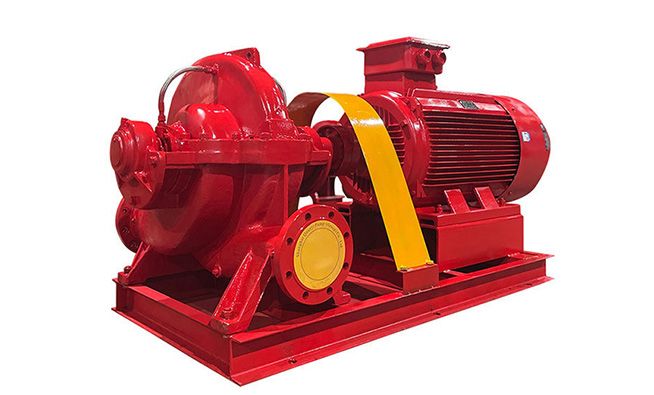

S/SH split case fire fighting pumpMaterial: cast iron Flow: 112~6250m³/h Lift: 11~125m Power: 18.5~800kw Speed: 980~2900r/min

IS end suction fire fighting pumpMaterial: cast iron/stainless steel Flow: 3.75~460m³/h Lift: 3.5~127m Power: 0.55~110kw Speed: 1450~2900r/min

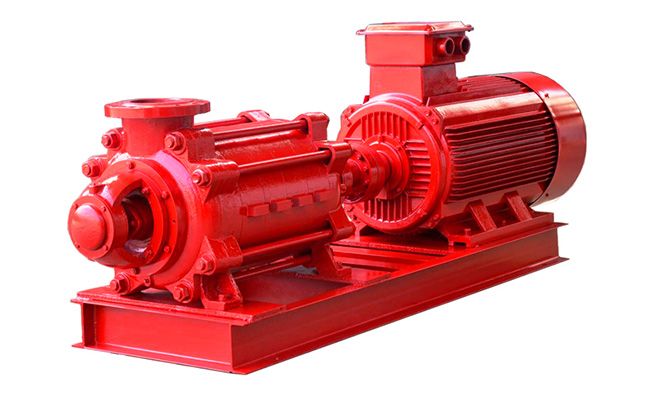

D/DG multistage fire fighting pumpMaterial: cast iron Flow: 112~6250m³/h Lift: 11~125m Power: 18.5~800kw Speed: 980~2900r/min

APPLICATION

Flood Control and Drainage
High-rise pressurized water supply
Dry land water delivery
Farmland irrigation
The fire
Garden irrigation

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

Specification		Detailed description
Flow Q		1.1~1800m³/h
Pressure/Head H		2.8~247m
Power KW		0.12~160kw
Speed r/min		980~2900r/min
Protection/Alarm		Short circuit, overload, phase loss protection, indicator light alarm.
Material		Cast Iron/Stainless Steel
Protection class		IP55/IP68
Work requirements	Installation conditions	A concrete platform with sufficient load-bearing capacity or a flat ground that can guarantee normal working requirements.
	Power supply	220V/380V 50HZ/60HZ（Can be customized according to usage requirements）
	Application environment	It can be installed and used indoors and outdoors, and can also be customized according to the transmission medium.

Expand all

LATEST CASE

Close Coupled Fire Fighting Pump Series Jun. 20, 2022

Our products have unique advantages in fire protection, long-distance water delivery, irrigation and other fields.

DETAILS

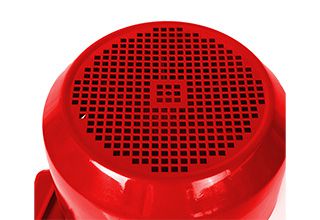

Radiator cover
Thicken the heat dissipation mesh cover to increase the heat dissipation power.
Extend motor life.

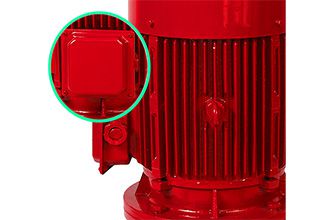

Sealed Junction Box
High-sealed full iron box,
To a greater extent, the safety of electricity consumption is guaranteed.

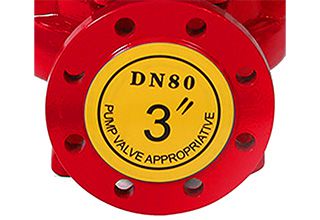

Flange outlet
Direct connection with standard flange joints can improve work efficiency.

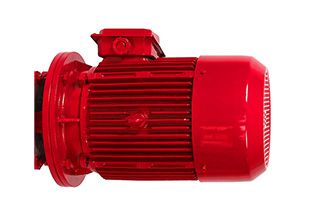

Stable and reliable motor
100% copper wire motor
Protection class: IP68
Explosion-proof motors can be equipped under special working conditions

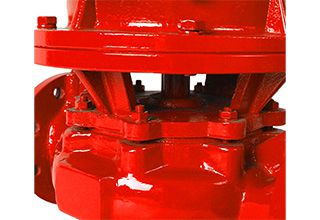

Thickened pump body
Compact structure, strong and durable.
Cast iron and stainless steel can be customized according to the use environment.

WORKING CONDITIONS

Working conditions

1. Before starting up, carefully check whether the electric pump is deformed or damaged during transportation, storage and installation, and whether the fasteners are loose or fall off.
2. Check the cable for damage or breaks. If it is damaged in any way, it will need to be replaced to avoid leaks.
3. Check whether the power supply device is safe and reliable, and the rated voltage must be consistent with the nameplate.
4. Under normal working conditions, after the electric pump has been working for one year, it should be maintained, the wearing parts should be replaced, the fastening state should be checked, and the bearing grease and mechanical oil should be filled. Check the refill or replace chamber to make sure the pump is in good condition.

Our quality can be trusted

Our products have unique advantages in food, mining, electric power, farmland irrigation, river dredging, pipeline pressurization, sewage treatment and other fields.
