• Diesel Engine Drive Series

    SH type pump is a single-stage, double-suction, centrifugal pump with a center-opening pump casing, used for pumping clean water and liquids with physical and chemical properties similar to hand water.

    When the head of this type of pump is 9 meters to 140 meters, the flow rate is 126 m³/h to 12500 m³/h. The maximum temperature of the liquid shall not exceed 80°C. It is suitable for factories, mines, urban water supply, power stations, large water conservancy projects, and farmland irrigation. It is used for drainage and waterlogging. The 48SH-22 large-scale pump can also be used as a circulation pump for thermal power stations.

  • Diesel Engine Drive Series

    The I IS type pump is a single-stage single-suction centrifugal pump, designed in accordance with the international standard ISO2858. It is an updated product of the BA type water pump. It is suitable for industrial and urban water supply and drainage, and can also be used for agricultural drainage and irrigation. For conveying clean water or other liquids with physical and chemical properties similar to clean water, the temperature does not exceed 80°C.

  • Diesel Engine Drive Series

    Type D and DC pumps are horizontal multi-stage centrifugal pumps. It is suitable for transporting clean water (containing impurities less than 1% and particle size less than 0.1 mm) and other liquids with physical and chemical properties similar to clean water.

    The temperature of the medium transported by the D-type pump is not greater than 80°. It is suitable for mine drainage, factories, urban water supply and other occasions.

    The temperature of the medium transported by the DG pump is not greater than 105°. It is suitable for small boiler feed water pumps or similar hot water transportation.

Diesel Engine Drive Series

Diesel engine drive fire fighting pump series, this series of products have the characteristics of environmental protection, high efficiency and energy saving, low noise, stable operation and reliable performance. It is mainly used in fire hydrant fire extinguishing, automatic sprinkler fire extinguishing and other fire extinguishing systems in industrial and mining enterprises, engineering construction, high-rise buildings and other fixed fire extinguishing systems.

Inquire Now


  • Fast Delivery
    Fast Delivery

    Stock products: 3 days

    Customized products: 15 days

  • After Sale Services
    After Sale Services

    We offer 36 months warranty

  • OEM&ODM Available
    OEM&ODM Available

    We accept OEM&ODM for any quantity

  • Customize Capability
    Customize Capability

    All materials customizable

    All capabilities customizable

  • Service Support
    Service Support

    Non-disclosure agreement

    24-hour online video call after-sales service

  • Good sealing performance
    Good sealing performance

    Alloy seals of different materials are used to transport different media without leakage.

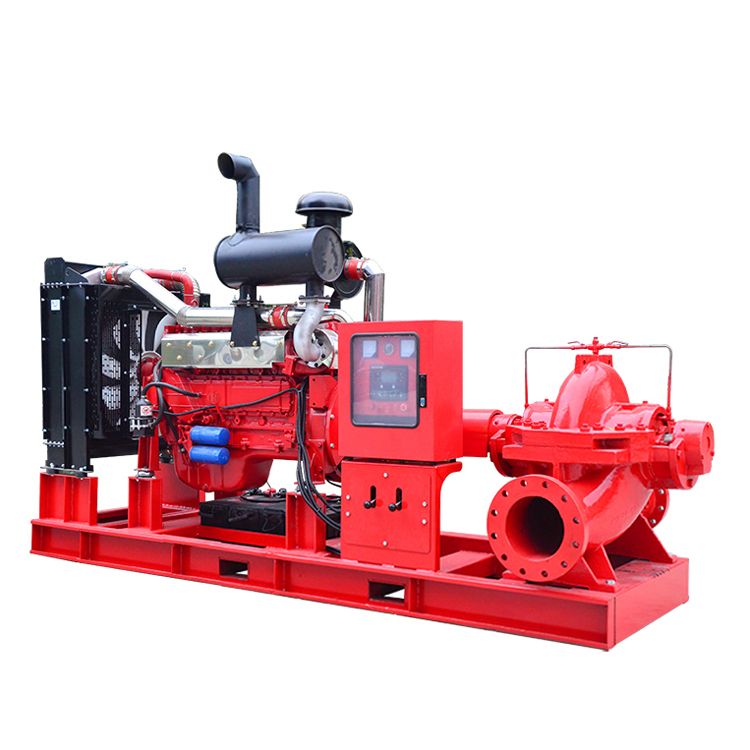

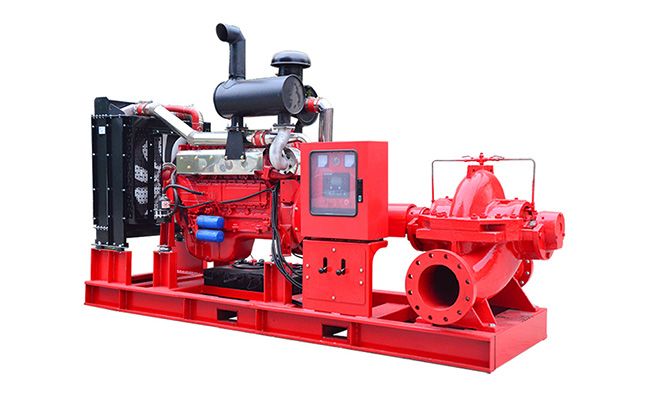

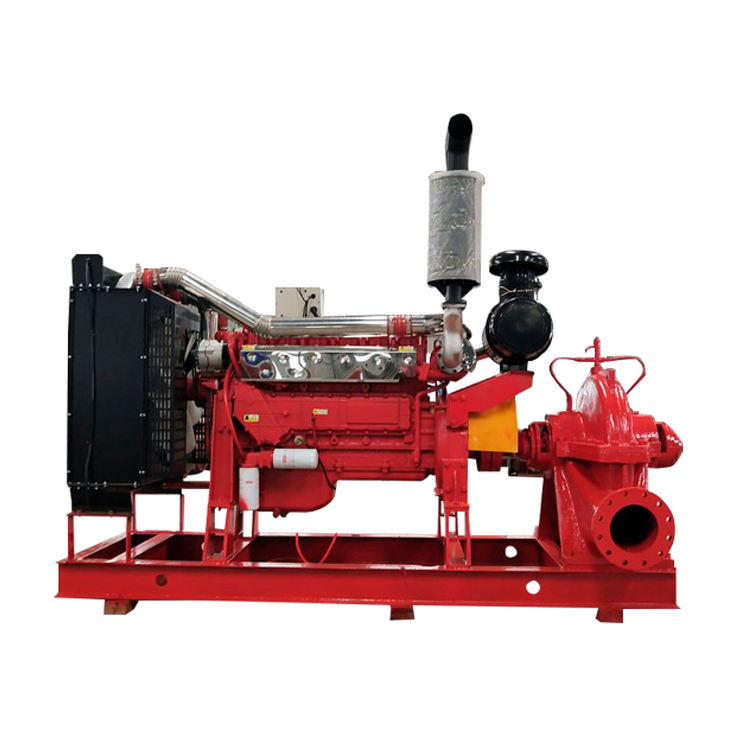

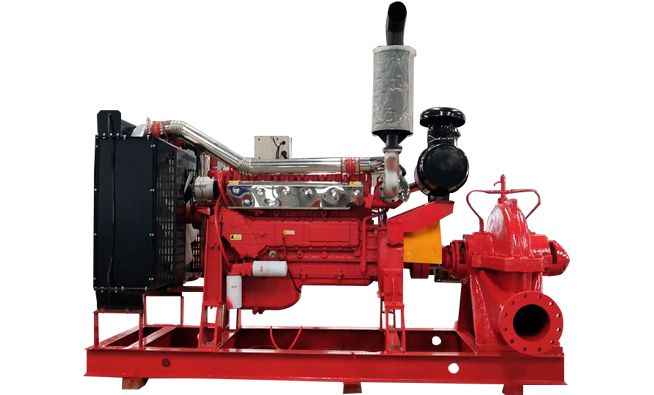

SH split case fire fighting pump Material: cast iron Flow: 112~6250m³/h Lift: 11~125m Power: 18.5~800kw Speed: 980~2900r/min

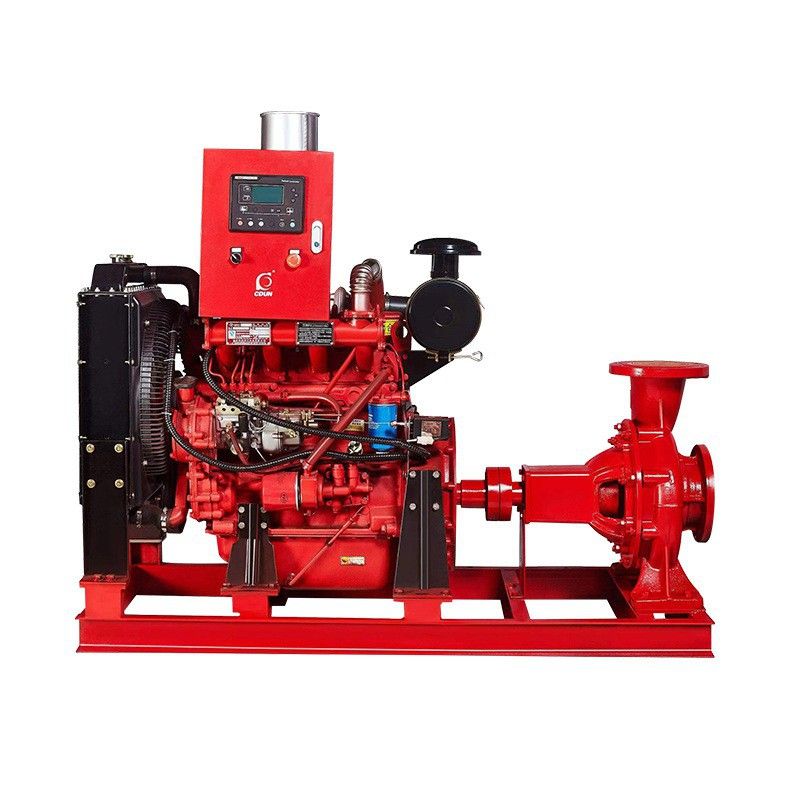

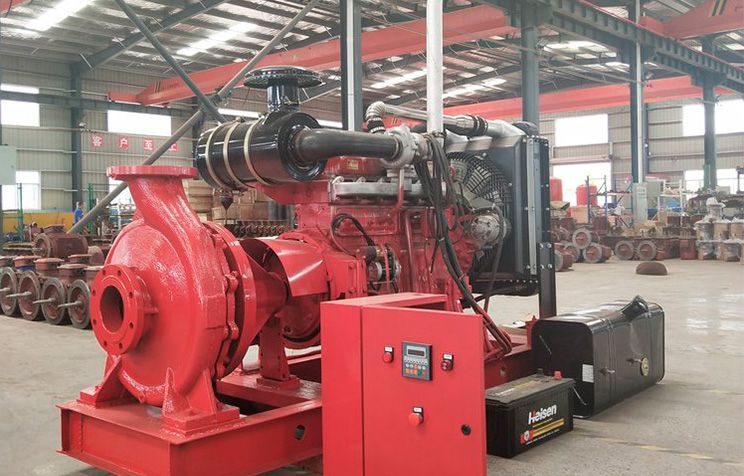

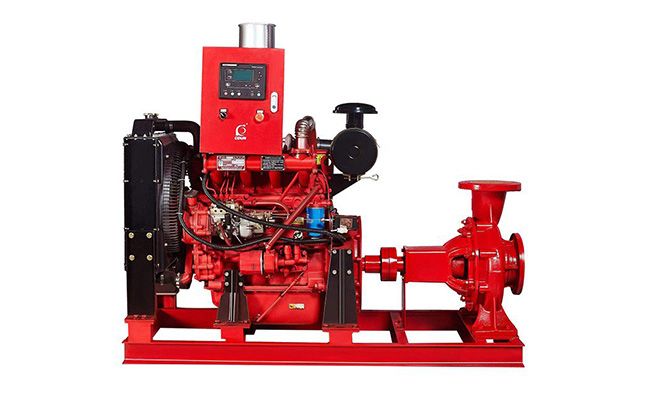

IS end suction fire fighting pump Material: cast iron/stainless steel Flow: 3.75~460m³/h Lift: 3.5~127m Power: 0.55~110kw Speed: 1450~2900r/min

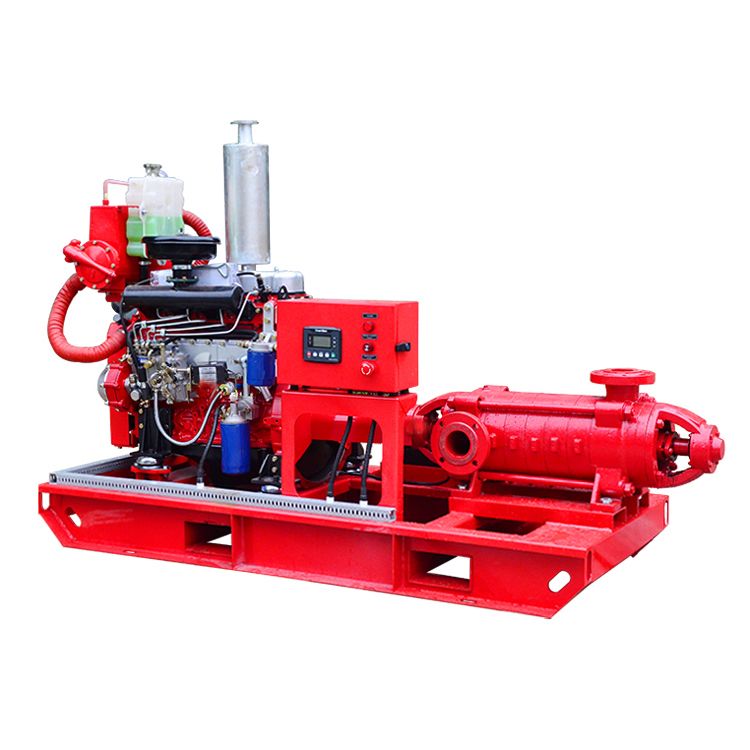

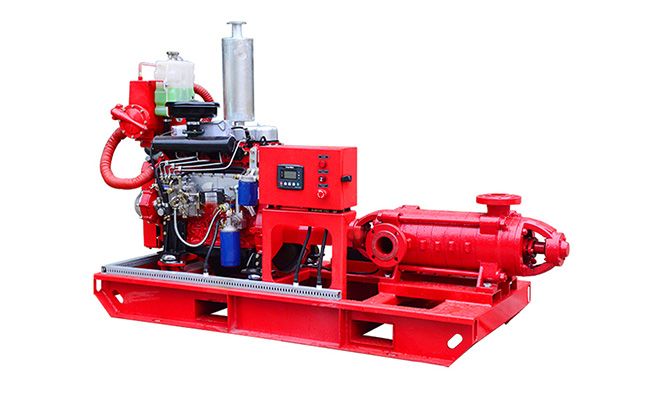

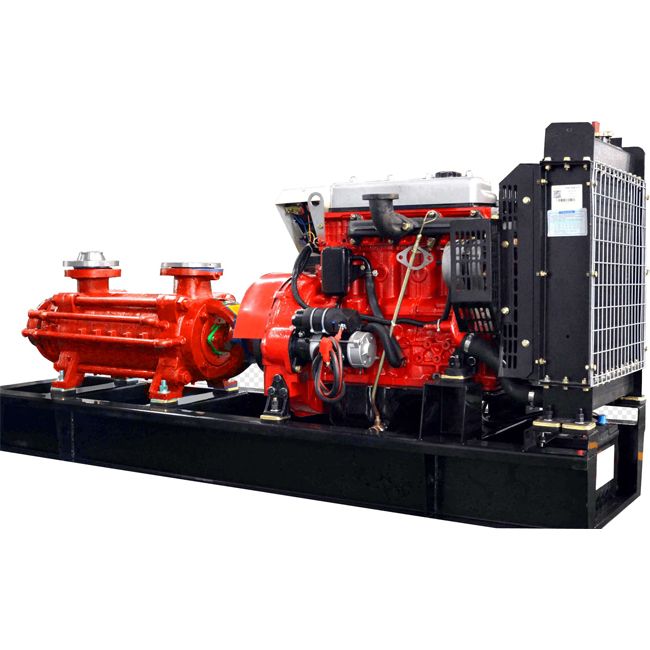

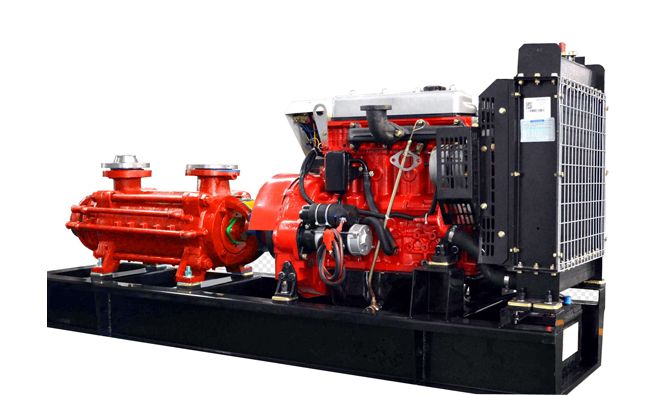

D/DG multistage fire fighting pump Material: cast iron Flow: 112~6250m³/h Lift: 11~125m Power: 18.5~800kw Speed: 980~2900r/min

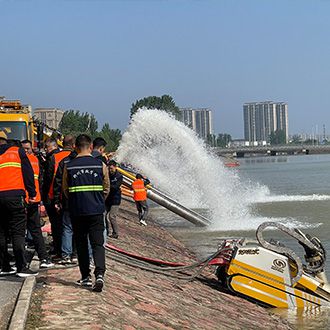

  • Flood Control and Drainage

    Flood Control and Drainage

  • High-rise pressurized water supply

    High-rise pressurized water supply

  • Dry land water delivery

    Dry land water delivery

  • Farmland irrigation

    Farmland irrigation

  • The fire

    The fire

  • Garden irrigation

    Garden irrigation

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial


SpecificationDetailed description
Flow  Q1.1~1800m³/h
Pressure/Head  H2.8~247m
Power  KW0.12~160kw
Speed  r/min980~2900r/min
Protection/AlarmShort circuit, overload, phase loss protection, indicator light alarm.
MaterialCast Iron/Stainless Steel
Protection classIP68
Work requirementsInstallation conditionsA concrete platform with sufficient load-bearing capacity or a flat ground that can guarantee normal working requirements.
Power supply220V/380V     50HZ/60HZ(Can be customized according to usage requirements)
Application environmentIt can be installed and used indoors and outdoors, and can also be customized according to the transmission medium.

Expand all

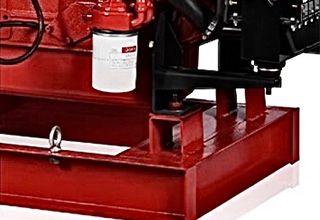

  • Sturdy Base
    Sturdy Base

    Automotive-grade paint to effectively protect various components from corrosion.

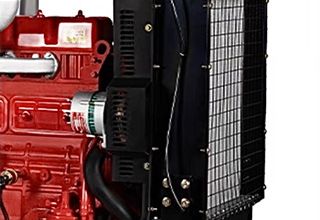

  • Efficient Heat Dissipation
    Efficient Heat Dissipation

    The water tank and fan are durable and efficient.

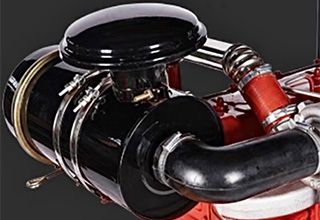

  • High-quality Air Filter
    High-quality Air Filter

    Powerfully filters impurities in the air to ensure equipment operation.


Working conditions

1. Before starting up, carefully check whether the electric pump is deformed or damaged during transportation, storage and installation, and whether the fasteners are loose or fall off.
2. Check the cable for damage or breaks. If it is damaged in any way, it will need to be replaced to avoid leaks.
3. Check whether the power supply device is safe and reliable, and the rated voltage must be consistent with the nameplate.
4. Under normal working conditions, after the electric pump has been working for one year, it should be maintained, the wearing parts should be replaced, the fastening state should be checked, and the bearing grease and mechanical oil should be filled. Check the refill or replace chamber to make sure the pump is in good condition.

Our quality can be trusted

Our products have unique advantages in food, mining, electric power, farmland irrigation, river dredging, pipeline pressurization, sewage treatment and other fields.
