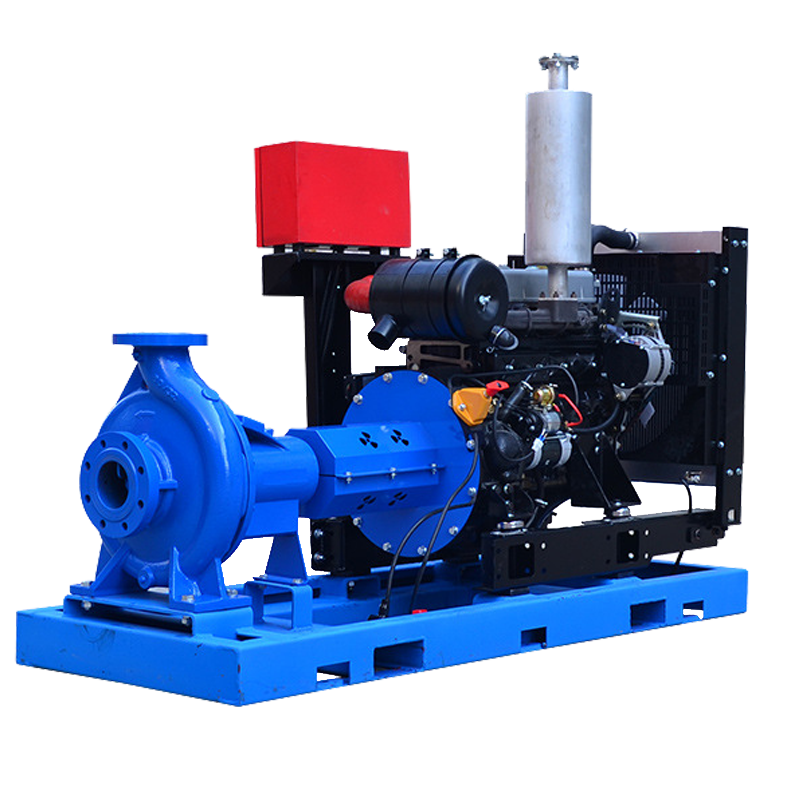

Diesel Engine Water Pump

The diesel engine water pump unit is a new type of water pump unit developed in accordance with strict installation standards, performance requirements and test methods. type, segmented multi-stage type) can be divided into three sub-series of IS, S, SH, D,DG, ZX, ZW, etc., equipment pressure, flow range is wide, and its application can almost meet the requirements of agriculture, fire protection, pressurization equipment, flood control, drainage, etc. various occasions. The diesel engines equipped with the equipment are all high-quality products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable equipment.

12500m³/h
Max Flow

680m
Max Head

1156HP
Max power

Inquire Now
Diesel Engine Water Pump

The diesel engine water pump unit is a new type of water pump unit developed in accordance with strict installation standards, performance requirements and test methods. type, segmented multi-stage type) can be divided into three sub-series of IS, S, SH, D,DG, ZX, ZW, etc., equipment pressure, flow range is wide, and its application can almost meet the requirements of agriculture, fire protection, pressurization equipment, flood control, drainage, etc. various occasions. The diesel engines equipped with the equipment are all high-quality products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable equipment.

12500m³/h
Max Flow

680m
Max Head

1156HP
Max power

Inquire Now
Diesel Engine Water Pump

The diesel engine water pump unit is a new type of water pump unit developed in accordance with strict installation standards, performance requirements and test methods. type, segmented multi-stage type) can be divided into three sub-series of IS, S, SH, D,DG, ZX, ZW, etc., equipment pressure, flow range is wide, and its application can almost meet the requirements of agriculture, fire protection, pressurization equipment, flood control, drainage, etc. various occasions. The diesel engines equipped with the equipment are all high-quality products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable equipment.

12500m³/h
Max Flow

680m
Max Head

1156HP
Max power

Inquire Now
Diesel Engine Water Pump

The diesel engine water pump unit is a new type of water pump unit developed in accordance with strict installation standards, performance requirements and test methods. type, segmented multi-stage type) can be divided into three sub-series of IS, S, SH, D,DG, ZX, ZW, etc., equipment pressure, flow range is wide, and its application can almost meet the requirements of agriculture, fire protection, pressurization equipment, flood control, drainage, etc. various occasions. The diesel engines equipped with the equipment are all high-quality products, which have the characteristics of good starting characteristics, strong overload capacity, compact structure, convenient maintenance, simple use, and high degree of automation. It is an advanced and reliable equipment.

12500m³/h
Max Flow

680m
Max Head

1156HP
Max power

Inquire Now

Diesel Engine Water Pump

Close-coupled fire fighting pump series, this series of products have the characteristics of environmental protection, high efficiency and energy saving, low noise, stable operation and reliable performance. It is mainly suitable for fire extinguishing systems such as fire hydrant fire extinguishing and automatic sprinkler fire extinguishing in fixed fire extinguishing systems such as industrial and mining enterprises, engineering construction, and high-rise buildings.

Inquire Now

ADVANTAGE

Fast Delivery
Stock products: 3 days
Customized products: 15 days
After Sale Services
We offer 36 months warranty
OEM&ODM Available
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable
Service Support
Non-disclosure agreement
24-hour online video call after-sales service
Good sealing performance
Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

Single-cylinder and multi-cylinder diesel engines can be selected according to actual use requirements

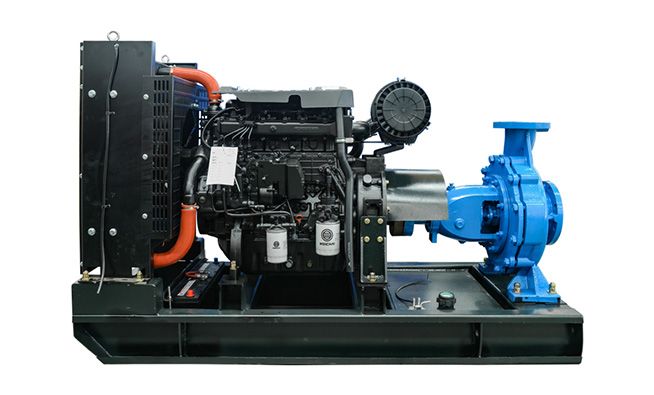

Type: IS
Max power: 110 kw (150 hp)
Max flow: 460 m³/h
Drive mode: diesel, electric
Pressure:≤0.8 Mpa
Convenient maintenance: There is no need to dismantle the pump body, suction pipeline, and discharge pipeline during maintenance. You only need to remove the screws connecting the pump body and the pump cover to perform the maintenance.

Type: S/SH
Max power: 680kw (925hp)
Max flow: 12500m3/h
Drive mode: diesel, electric

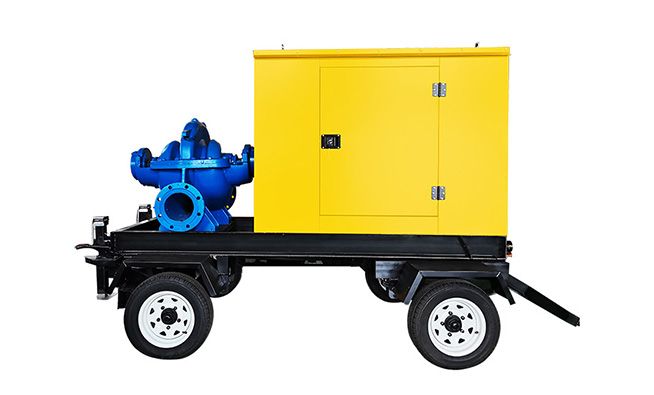

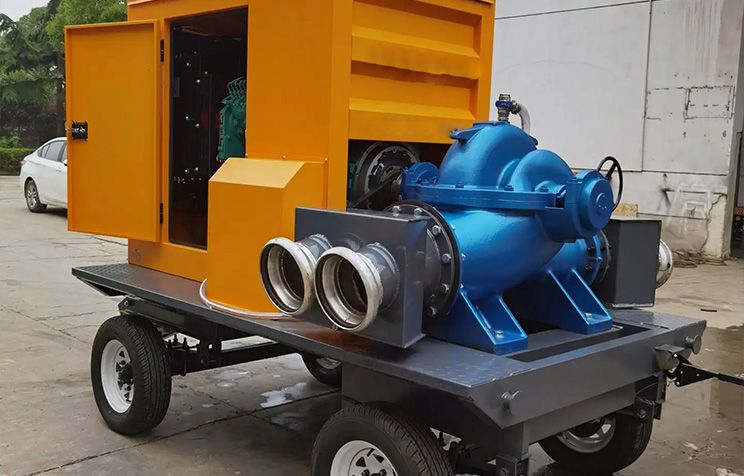

Pump type: ordinary type, outdoor mobile type (two-wheel mobile type and four-wheel mobile type, rain cover can be added)

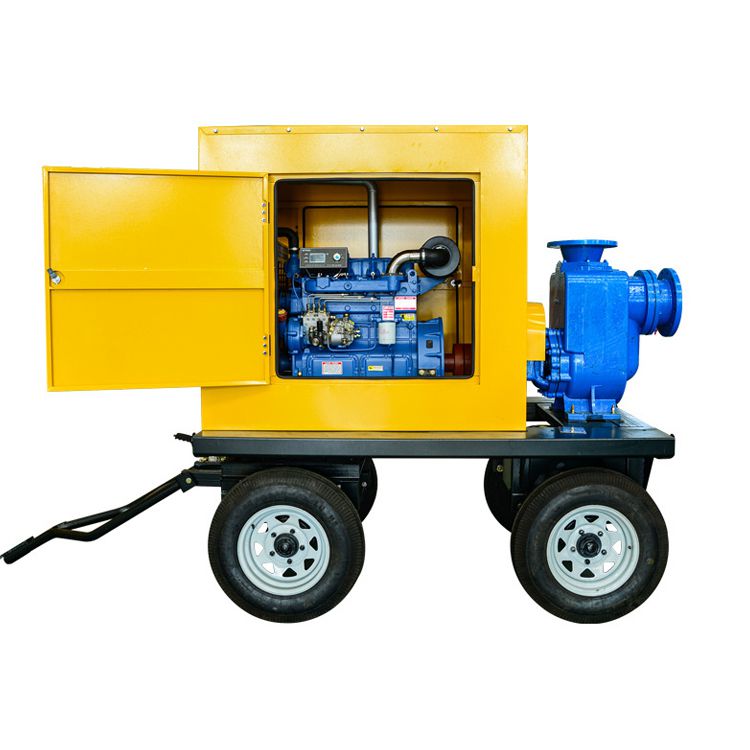

Type: ZX/ZW
Max power: 110kw (150hp)
Max flow: 800m3/h
Drive mode: diesel, electric
Pump type: ordinary type, outdoor type, mobile type (two-wheel mobile type and four-wheel mobile type)

Type: D/DG
Material: cast iron
Flow: 3.75~500m³/h
Lift: 69~680m
Power: 7.5~1156HP
Drive mode: diesel, electric
Pump type: ordinary type, outdoor type, mobile type (two-wheel mobile type and four-wheel mobile type)

APPLICATION

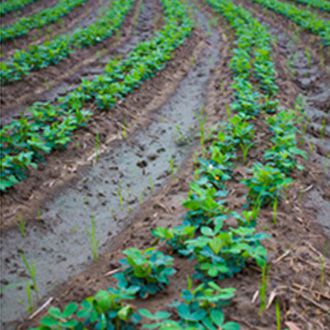

Farmland irrigation
Garden irrigation

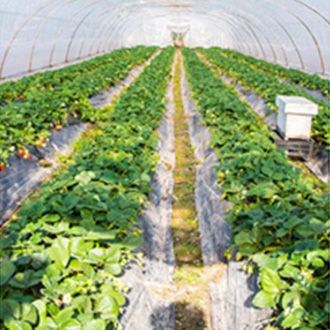

Greenhouse planting
Field water
Fire water
Floor cleaning

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

Performance parameter table
Model	Pump						Diesel engine
	Speed	Flow		Pressure	Power	Caliber	Speed	Power
	rpm	m3/h	L/S	Mpa	kW	mm	rpm	hp	kW
XBC3/5-IS	2950	18	5	0.3	4	65/65	3000	7.5	5.7
XBC4/5-IS	2950	18	5	0.4	5.5	65/65	3000	14	10.5
XBC5/5-IS	2950	18	5	0.5	7.5	65/65	3000	14	10.5
XBC6/5-IS	2950	18	5	0.6	7.5	65/65	3000	14	10.5
XBC7/5-IS	2950	18	5	0.7	11	65/65	3000	27	20
XBC8/5-IS	2950	18	5	0.8	15	65/65	3000	27	20
XBC9/5-IS	2950	18	5	0.9	15	65/65	3000	27	20
XBC10/5-IS	2950	18	5	1	18.5	65/65	3000	31	23
XBC11/5-IS	2950	18	5	1.1	22	65/65	3000	39	29
XBC12/5-IS	2950	18	5	1.2	30	65/65	3000	48	35
XBC3/10-IS	2950	36	10	0.3	5.5	80/80	3000	14	10.5
XBC4/10-IS	2950	36	10	0.4	11	80/80	3000	27	20
XBC5/10-IS	2950	36	10	0.5	15	80/80	3000	27	20
XBC6/10-IS	2950	36	10	0.6	15	80/80	3000	27	20
XBC7/10-IS	2950	36	10	0.7	18.5	80/80	3000	31	23
XBC8/10-IS	2950	36	10	0.8	22	80/80	3000	39	29
XBC9/10-IS	2950	36	10	0.9	22	80/80	3000	39	29
XBC10/10-IS	2950	36	10	1	30	80/80	3000	48	35
XBC11/10-IS	2950	36	10	1.1	30	80/80	3000	48	35
XBC12/10-IS	2950	36	10	1.2	37	80/80	3000	62	46

XBC10/25-IS	1450	900	250	1	450	350/300	1450	694	510
XBC11/250-IS	1450	900	250	1.1	500	350/300	1450	830	610
XBC12/250-IS	1450	900	250	1.2	500	350/300	1450	830	610
XBC3/5-zx	2950	18	5	0.3	4	65/65	3000	7.5	5.7
XBC4/5-zx	2950	18	5	0.4	5.5	65/65	3000	14	10.5
XBC5/5-zx	2950	18	5	0.5	7.5	65/65	3000	14	10.5
XBC6/5-zx	2950	18	5	0.6	7.5	65/65	3000	14	10.5
XBC7/5-zx	2950	18	5	0.7	11	65/65	3000	27	20
XBC8/5-zx	2950	18	5	0.8	15	65/65	3000	27	20
XBC9/5-zx	2950	18	5	0.9	15	65/65	3000	27	20
XBC10/5-zx	2950	18	5	1	18.5	65/65	3000	31	23
XBC11/5-zx	2950	18	5	1.1	22	65/65	3000	39	29
XBC12/5-zx	2950	18	5	1.2	30	65/65	3000	48	35
XBC3/10-zx	2950	36	10	0.3	5.5	80/80	3000	14	10.5
XBC4/10-zx	2950	36	10	0.4	11	80/80	3000	27	20
XBC5/10-zx	2950	36	10	0.5	15	80/80	3000	27	20
XBC6/10-zx	2950	36	10	0.6	15	80/80	3000	27	20
XBC7/10-zx	2950	36	10	0.7	18.5	80/80	3000	31	23
XBC8/10-zx	2950	36	10	0.8	22	80/80	3000	39	29
XBC9/10-zx	2950	36	10	0.9	22	80/80	3000	39	29
XBC10/10-zx	2950	36	10	1	30	80/80	3000	48	35
XBC11/10-zx	2950	36	10	1.1	30	80/80	3000	48	35
XBC12/10-zx	2950	36	10	1.2	37	80/80	3000	62	46

XBC10/25-zx	1450	900	250	1	450	350/300	1450	694	510
XBC11/250-zx	1450	900	250	1.1	500	350/300	1450	830	610
XBC12/250-zx	1450	900	250	1.2	500	350/300	1450	830	610
XBC3/5-D	2950	18	5	0.3	4	65/65	3000	7.5	5.7
XBC4/5-D	2950	18	5	0.4	5.5	65/65	3000	14	10.5
XBC5/5-D	2950	18	5	0.5	7.5	65/65	3000	14	10.5
XBC6/5-D	2950	18	5	0.6	7.5	65/65	3000	14	10.5
XBC7/5-D	2950	18	5	0.7	11	65/65	3000	27	20
XBC8/5-D	2950	18	5	0.8	15	65/65	3000	27	20
XBC9/5-D	2950	18	5	0.9	15	65/65	3000	27	20
XBC10/5-D	2950	18	5	1	18.5	65/65	3000	31	23
XBC11/5-D	2950	18	5	1.1	22	65/65	3000	39	29
XBC12/5-D	2950	18	5	1.2	30	65/65	3000	48	35
XBC3/10-D	2950	36	10	0.3	5.5	80/80	3000	14	10.5
XBC4/10-D	2950	36	10	0.4	11	80/80	3000	27	20
XBC5/10-D	2950	36	10	0.5	15	80/80	3000	27	20
XBC6/10-D	2950	36	10	0.6	15	80/80	3000	27	20
XBC7/10-D	2950	36	10	0.7	18.5	80/80	3000	31	23
XBC8/10-D	2950	36	10	0.8	22	80/80	3000	39	29
XBC9/10-D	2950	36	10	0.9	22	80/80	3000	39	29
XBC10/10-D	2950	36	10	1	30	80/80	3000	48	35
XBC11/10-D	2950	36	10	1.1	30	80/80	3000	48	35
XBC12/10-D	2950	36	10	1.2	37	80/80	3000	62	46

XBC10/25-D	1450	900	250	1	450	350/300	1450	694	510
XBC11/250-D	1450	900	250	1.1	500	350/300	1450	830	610
XBC12/250-D	1450	900	250	1.2	500	350/300	1450	830	610
XBC3/5-S	2950	18	5	0.3	4	65/65	3000	7.5	5.7
XBC4/5-S	2950	18	5	0.4	5.5	65/65	3000	14	10.5
XBC5/5-S	2950	18	5	0.5	7.5	65/65	3000	14	10.5
XBC6/5-S	2950	18	5	0.6	7.5	65/65	3000	14	10.5
XBC7/5-S	2950	18	5	0.7	11	65/65	3000	27	20
XBC8/5-S	2950	18	5	0.8	15	65/65	3000	27	20
XBC9/5-S	2950	18	5	0.9	15	65/65	3000	27	20
XBC10/5-S	2950	18	5	1	18.5	65/65	3000	31	23
XBC11/5-S	2950	18	5	1.1	22	65/65	3000	39	29
XBC12/5-S	2950	18	5	1.2	30	65/65	3000	48	35
XBC3/10-S	2950	36	10	0.3	5.5	80/80	3000	14	10.5
XBC4/10-S	2950	36	10	0.4	11	80/80	3000	27	20
XBC5/10-S	2950	36	10	0.5	15	80/80	3000	27	20
XBC6/10-S	2950	36	10	0.6	15	80/80	3000	27	20
XBC7/10-S	2950	36	10	0.7	18.5	80/80	3000	31	23
XBC8/10-S	2950	36	10	0.8	22	80/80	3000	39	29
XBC9/10-S	2950	36	10	0.9	22	80/80	3000	39	29
XBC10/10-S	2950	36	10	1	30	80/80	3000	48	35
XBC11/10-S	2950	36	10	1.1	30	80/80	3000	48	35
XBC12/10-S	2950	36	10	1.2	37	80/80	3000	62	46

XBC10/25-S	1450	900	250	1	450	350/300	1450	694	510
XBC11/250-S	1450	900	250	1.1	500	350/300	1450	830	610
XBC12/250-S	1450	900	250	1.2	500	350/300	1450	830	610

Expand all

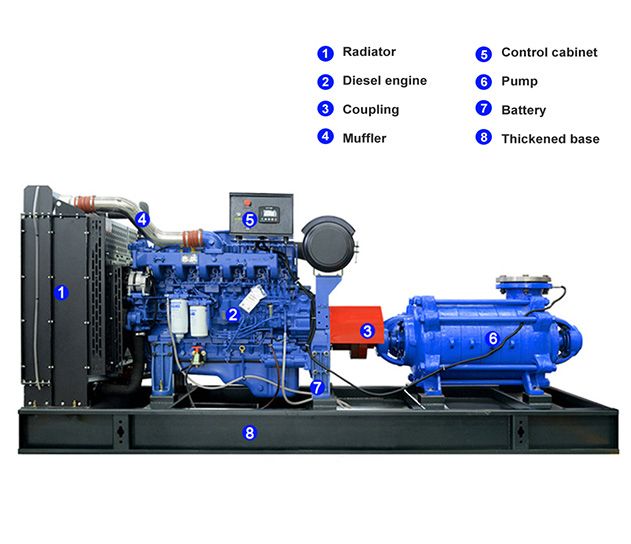

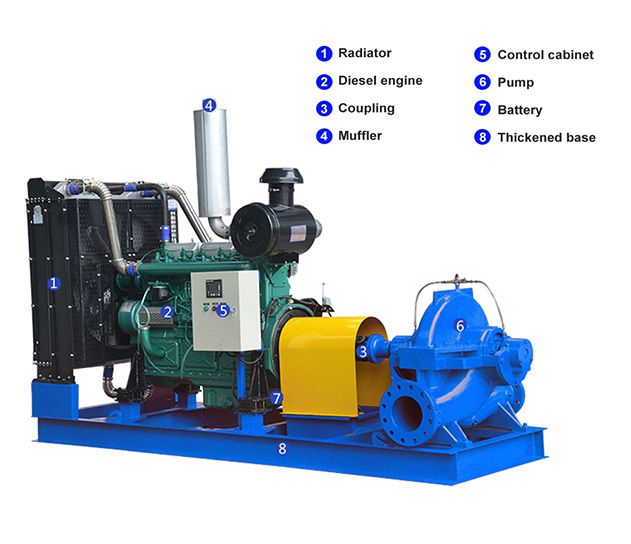

STRUCTURE

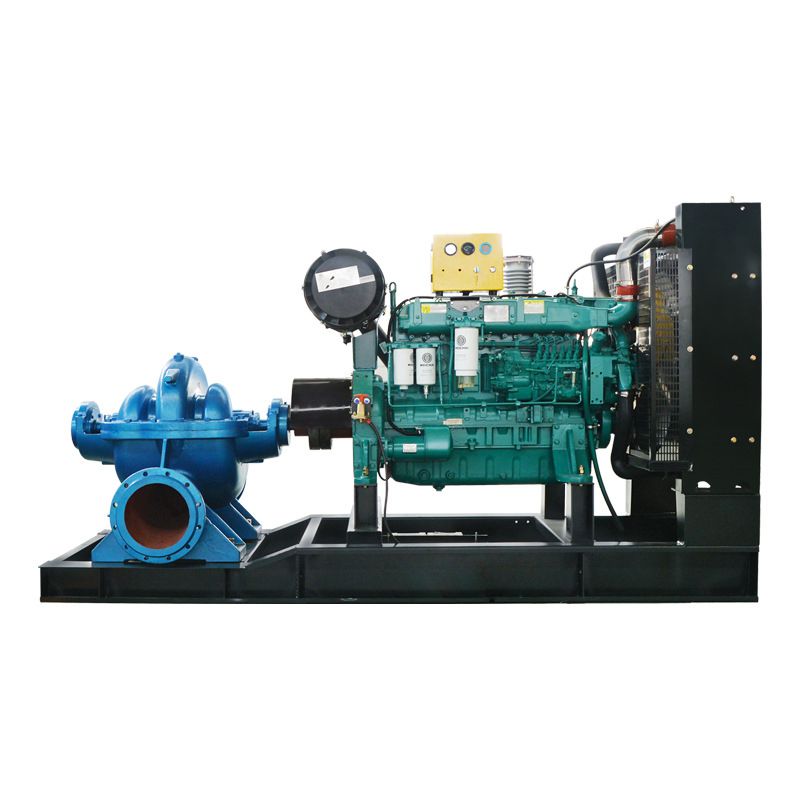

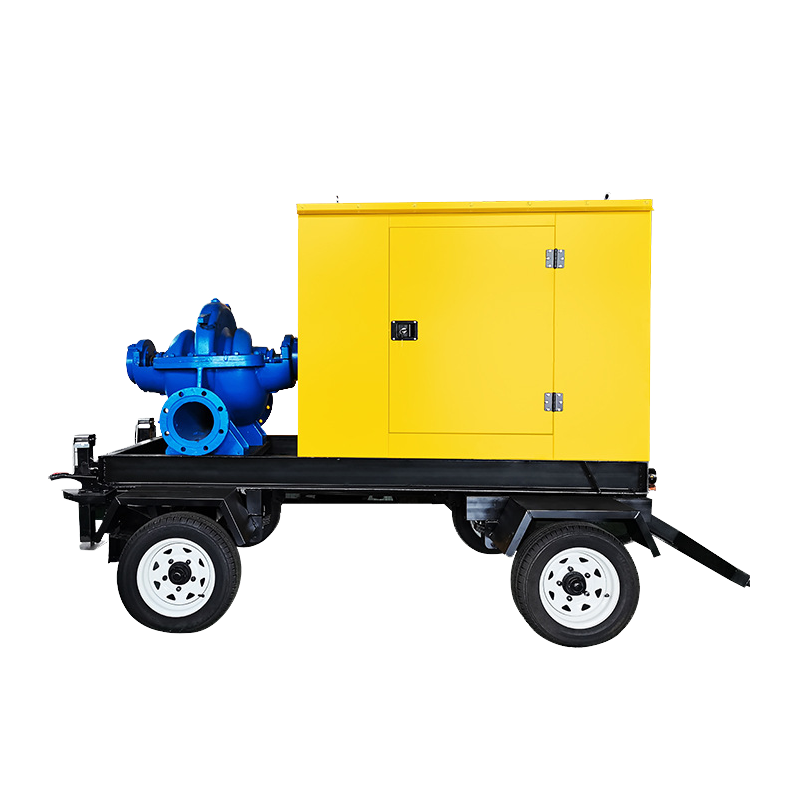

Split Case Type Irrigation Pump

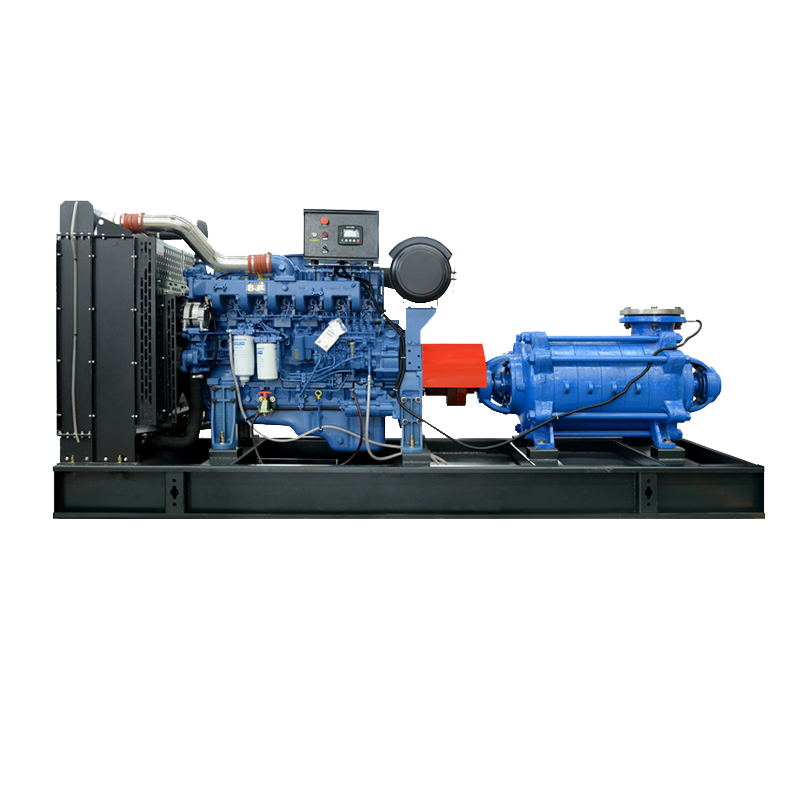

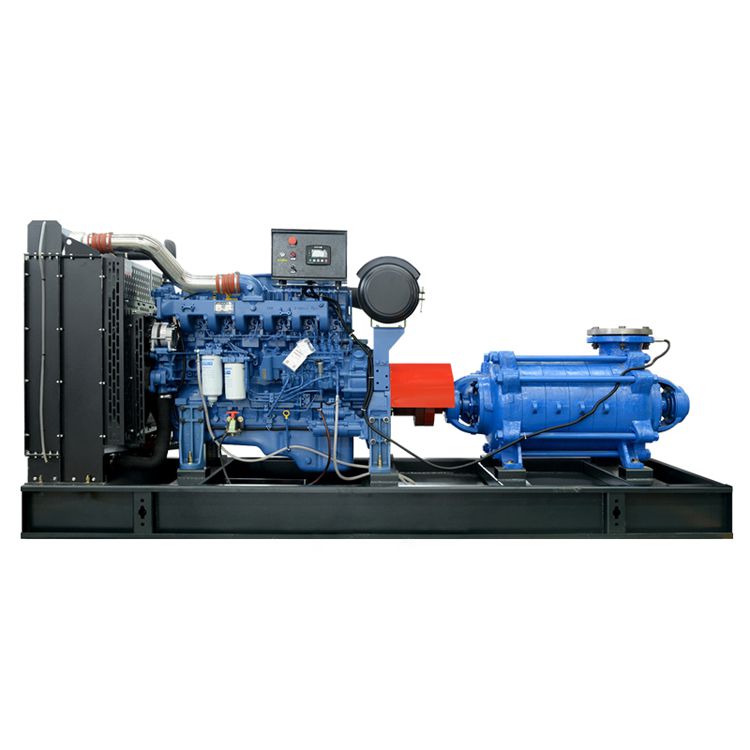

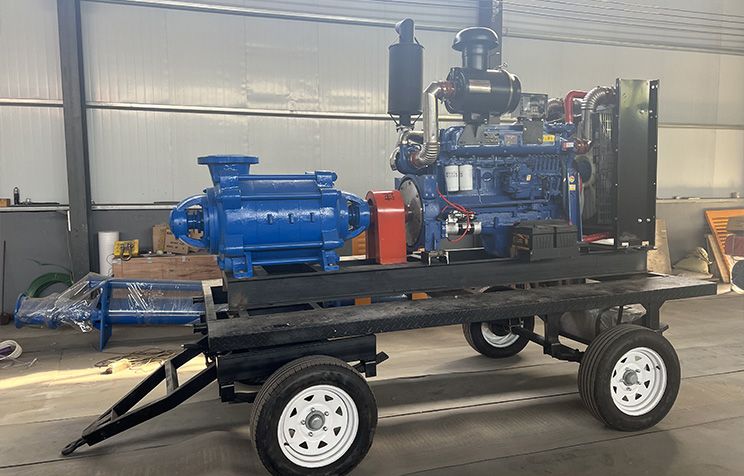

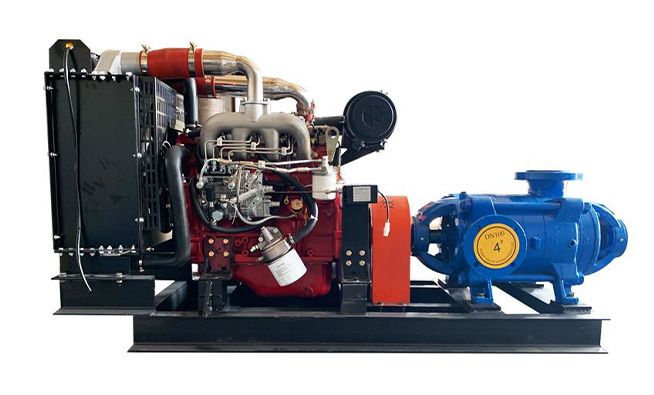

Multi-stage Booster Supply Pump

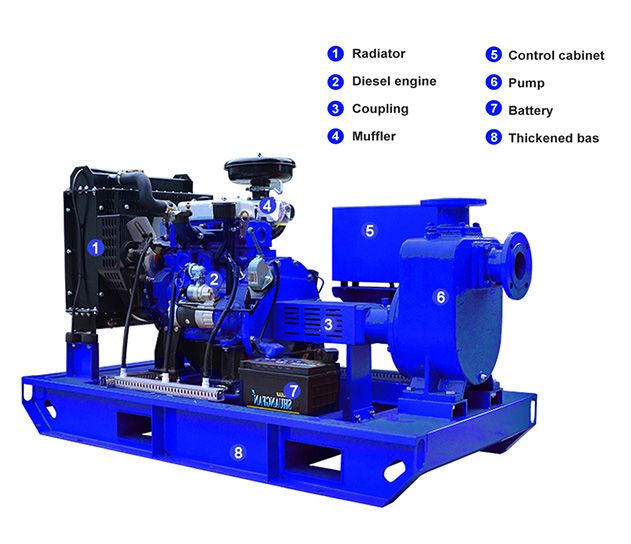

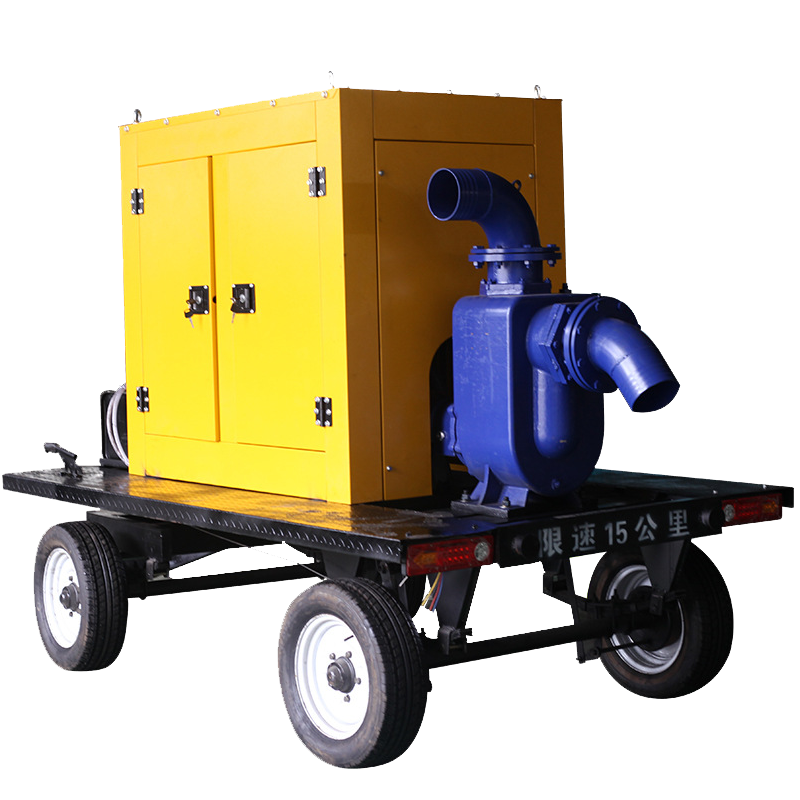

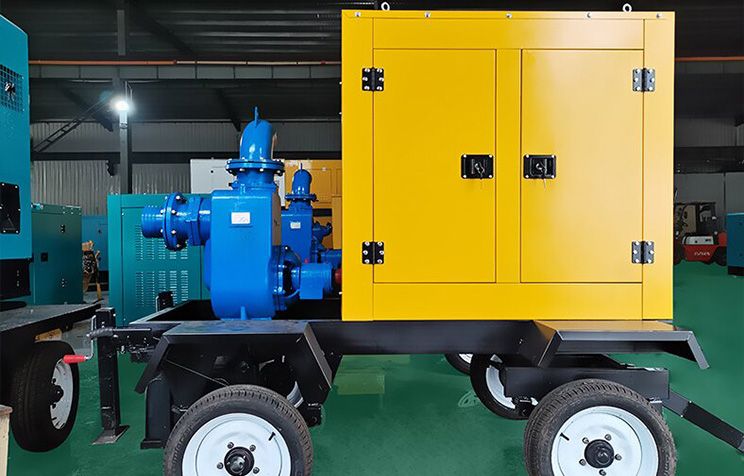

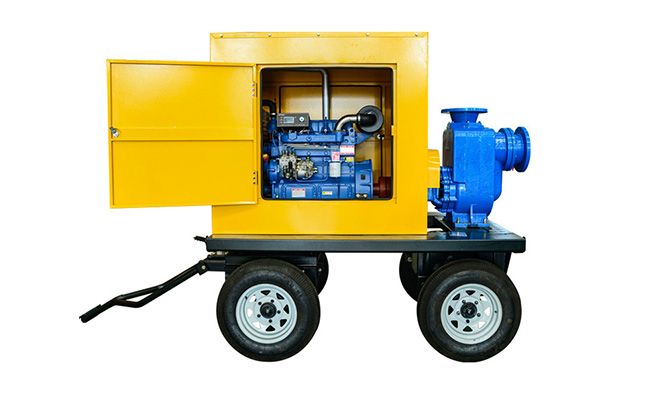

Diesel Driven Self Priming Irrigation Pump

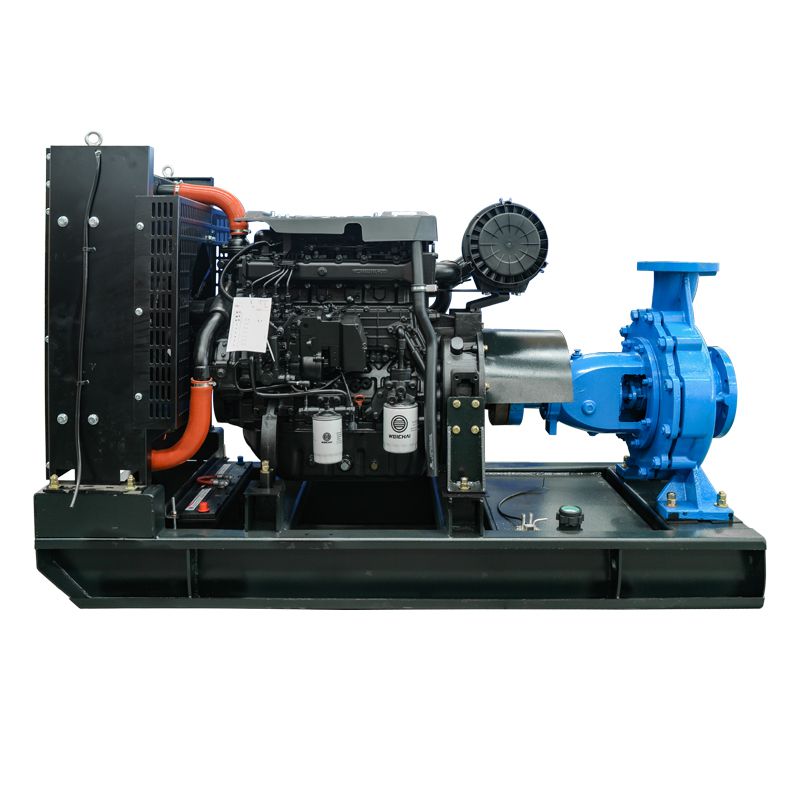

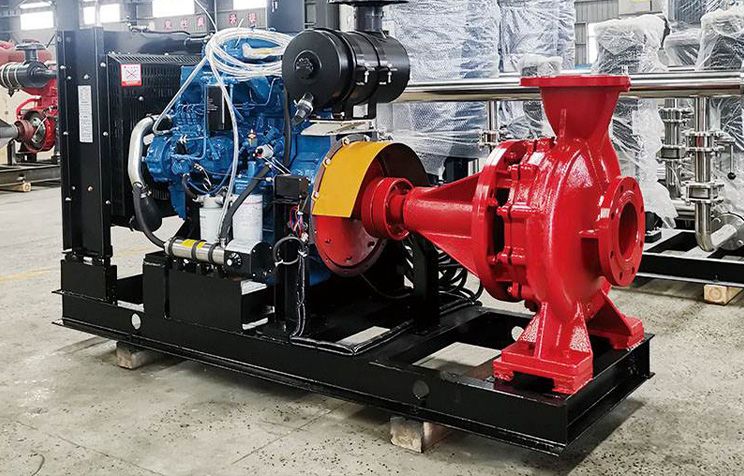

End Suction Centrifugal Pump

LATEST CASE

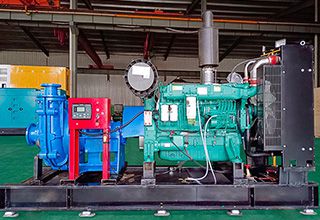

Diesel Engine Water Pump

Our products have unique advantages in fields such as farmland irrigation, flood control and drainage, and fire boosting.

DETAILS

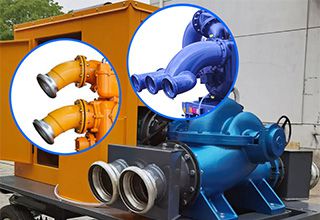

Flange quick connector:
Water pump inlet and outlet distributor and quick connector, the maximum flow rate can reach 4000m³/h, and the head is 600m.

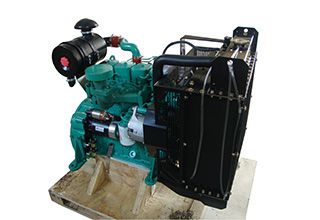

Powerful power:
Single-cylinder, double-cylinder, four-cylinder and other multi-cylinder diesel engines can be customized according to the actual working environment. It is more convenient to operate and use.
Control System:
Fully computerized automatic numerical control technology, precise digital control of the operation of the diesel engine water pump unit, stable performance, reasonable structure, and easy installation.
Rain cover:
Adopt advanced structural design concept and software control system, customize the rain cover according to the actual working environment, effectively protect the pump unit equipment and prolong the service life.

WORKING CONDITIONS

Precautions for use:

1. When starting the diesel engine water pump, pay attention to whether the steering of the pump shaft is correct.
2. Pay attention to whether there is any abnormal sound and vibration when turning.
3. Pay attention to the readings of the pressure gauge and vacuum gauge. After starting, when the readings of the pressure gauge and vacuum gauge fluctuate for a period of time and indicate stability, it means that the pump has been filled with liquid and enters the normal infusion operation.
4. When the pump enters the normal working process, special attention should be paid to the rise of the water temperature in the pump. If the process is too long and the water temperature in the pump is too high, stop the pump to check the reason.
5. If there is strong vibration and noise during the working process of the pump, it may be caused by cavitation of the pump. There are two reasons for cavitation: one is that the flow rate of the inlet pipe is too large, and the other is that the suction is too high. When the flow rate is too high, the outlet control valve can be adjusted to increase the reading of the pressure gauge. When the inlet pipeline is blocked, it should be removed in time; when the suction lift is too high, the installation height of the pump can be appropriately reduced.
6. Pay attention to check whether there is any leakage in the piping system.
7. Pay attention to observe the working data of the control cabinet and whether the diesel engine has oil leakage.
