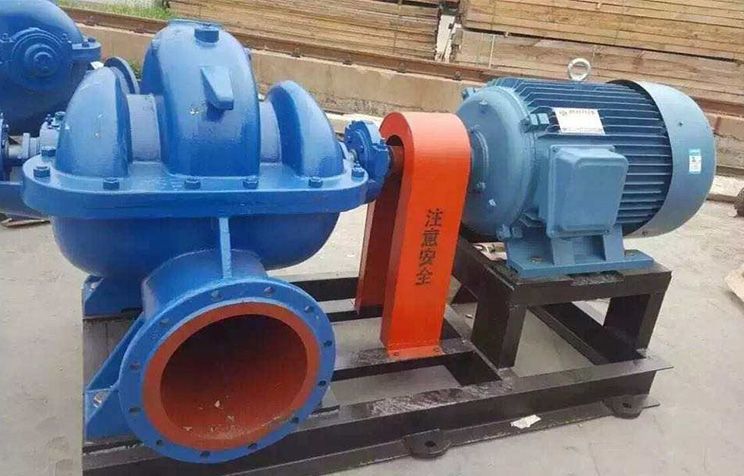

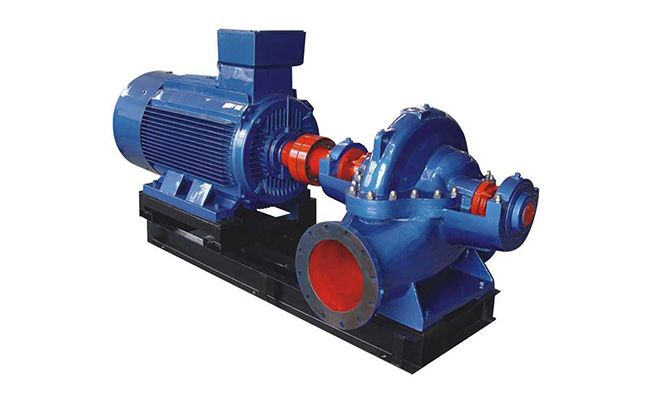

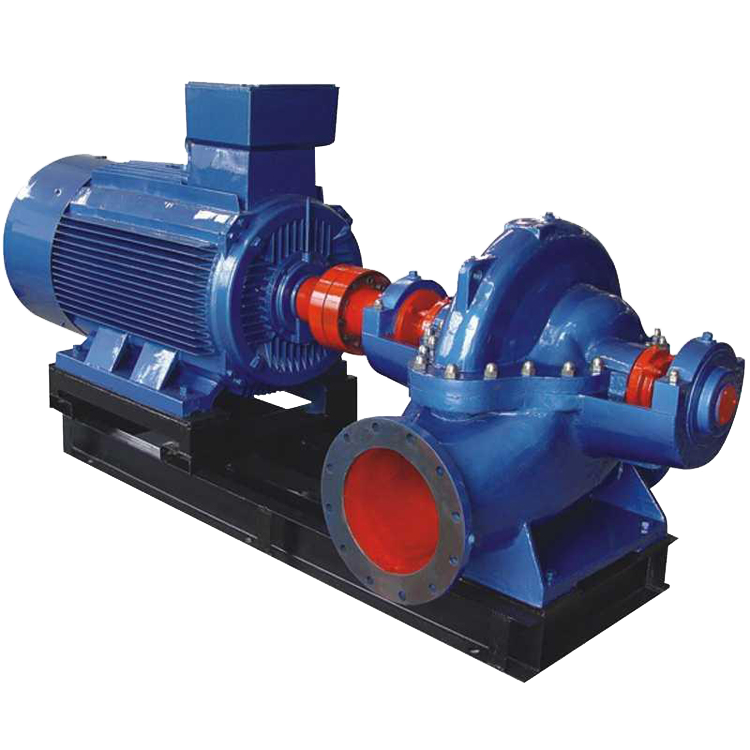

S, SH Double Suction Centrifugal Pump

The S, SH Double Suction series is a single-stage, double-suction, high-center pump with a central opening in the pump casing. It is used for sucking and transporting clean water and liquids with physical and chemical properties similar to water.

When the head of this type of pump is 9 meters to 140 meters, the flow rate is 126 meters / hour to 12500 meters / hour. The maximum temperature of the liquid should not exceed 80 degrees Celsius. It is suitable for factories, mines, urban water supply, power stations, large water conservancy projects, etc. It is used for farmland irrigation and drainage, etc. The 43SF1-22 large pump can also be used as a circulation pump for thermal power stations.

Inquire Now

ADVANTAGE

Fast Delivery
Stock products: 3 days
Customized products: 15 days
After Sale Services
We offer 36 months warranty
OEM&ODM Available
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable
Service Support
Non-disclosure agreement
24-hour online video call after-sales service
Good sealing performance
Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

The material can be customized according to the use requirements

Type: S/SH
Warranty period: 2 years
Maximum power: 680 kw(925 hp)
Maximum flow: 12500 m3/h
Drive mode: electric, diesel
Pump type: ordinary type, outdoor mobile type (two-wheel mobile type and four-wheel mobile type, rain cover can be added)

APPLICATION

Garden sprinkler irrigation
High-rise building
Fire pressurization
Long-distance transportation

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

Performance parameter table
Types	Capacity		Head	Speed	Power		Efficiency	NPSH	Impeller diameter	Weight
	Q		H	N	N(kw)		η
	Q		H	N	N(kw)		η
	m3/h	L/s	(m)	(r/min)	Shaft power	Motor Power	（%）	(m)	mm	kg
6Sh-6	126	35	84	2900	40	55	72	5	248	150
150s78	162	45	78		45.8		75
	198	55	70		51		74
6Sh-6A	112	31	67	2900	30	45	68	5	220	150
150S78A	144	40	62		33.8		72
	180	50	55		38.5		70
6Sh-9	130	36.2	52	2900	25.3	37	74	5	200	145
150S50	170	47.2	47.6		27.6		80
	220	61.2	35		31.3		67
6Sh-9A	120	31	43.8	2900	18.5	30	72	5	186	145
150S50A	144	40	40		20.9		75
	180	50	35		24.5		70
8Sh-6	180	50	100	2900	79.1	110	62	5.5	284	245
200S95	234	65	93.5		85		71
	288	80	82.5		88.6		73
8Sh-6A	160	44.5	85.1	2900	60.8	90	61	5.5	262	245
200S95A	215	59.7	75.6		64.2		69
	265	73.6	70.2		71.4		71
8Sh-9	213	60	69	2900	55	75	74	4.7	236	265
200S63	288	80	62.5		61.3		80	5.5
	351	97.5	50		67.8		70.5	7
8Sh-9A	180	50	54.5	2900	41	55	65	4.5	220	265
200S63A	270	70	46		48.3		70	5
	324	90	37.5		51		65	6.2
8Sh-13	126216	3560	8448	2900	34.9	45	81	5	204	219
200S42	162288	4580	7841.3		38.1		85	6.4
	198342	5595	7035		40.2		81	8.2
8SA-10	198	55	43	2900	30.5	37	76	4.8	139	219
8Sh-13A	270	75	36		33.1		80	5.8
200S42A	310	86	31		34.4		76	7
10Sh-6	360	100	71	1450	91.5	132	76	4	460	565
250S65	486	135	65.1		109		79
	612	170	56		129.6		72
10Sh-6A	342	95	61	1450	76.7	110	74	4	436	565
250S65A	468	135	54		89.4		77
	540	150	50		98		75
10Sh-9	360	100	42.5	1450	55.5	75	75	4	367	428
250S39	486	135	38.5		61.5		83
	612	170	32.5		67.7		80
10Sh-9A	324	90	35.5	1450	40.2	55	78	4	338	428
250S39A	468	130	30.5		45.7		85
	576	160	25		47.8		82
10Sh-13	360	100	27	1450	33.1	45	80	4	296	420
250S24	486	135	23.5		36.2		86
	576	160	19		36.4		82
10Sh-13A	342	95	22.2	1450	25.8	37	80	4	270	420
250S24A	414	115	20.3		27.6		83
	482	134	17.4		28.6		80
10Sh-19	360	100	17.5	1450	21.4	30	80	4	240	405
250S14	486	135	14		21.8		85
	576	160	11		22.1		78
10Sh-19A	320	89	13.7	1450	15.4	22	78	4	224	405
250S14A	432	120	11		15.8		82
	504	140	8.6		15.8		75
12Sh-6	590	164	98	1450	213	300	74	4.6	540	847
300S90	792	220	90		245		80	5.5
	936	260	82		279		75	6.5
12Sh-6A	576	160	86	1450	190	260	71	4.5	510	845
300S90A	755	210	78		217		74	5.3
	918	255	70		246		71	6.4
12Sh-6B	540	150	72	1450	151	250	70	4.4	475	845
300S90B	720	200	67		180		73	5.1
	900	250	57		200		70	6.2
12Sh-9	576	160	65	1450	128	180	80	5.5	435	572
300S58	792	220	58		149		84
	972	270	50		168		79
12Sh-9A	530	147	55	1450	99.2	155	80	5.5	402	572
300S58A	720	200	49		116		83
	893	248	42		131		78
12Sh-9B	504	140	47.2	1450	82.5	135	79	5.5	378	572
300S58B	684	190	43		97.7		82
	835	232	37		108		78
12Sh-13	612	170	38	1450	76.2	90	83	5.5	352	809
300S32	792	220	32.2		79.8		87
	900	250	25.5		78.1		80
12Sh-13A	550	153	31	1450	58.1	75	80	5.5	322	809
300S32A	720	200	26		60.7		84
	810	225	20.5		58		78
12Sh-19	612	170	23	1450	47.3	55	81	5.5	290	660
300S19	792	220	19.4		49.8		84
	935	260	14		47.6		75
12Sh-19A	504	140	20	1450	34.8	45	79	5.5	262	660
300S19A	720	200	16		38.3		82
	900	250	11.5		37.6		75
12Sh-28	611	170	14.5	1450	30.3	37	80	5.5	248	660
300S12	792	220	12		31.2		83
	900	285	10		33.1		74
12Sh-28A	522	145	11.8	1450	22.4	30	75	5.5	225	660
300S12A	685	190	10		23.3		80
	792	220	8.7		24.4		77
14Sh-6	850	236	140	1450	450	680	72	6.5	655	1580
350S125	1250	347	125		525		81
	1663	461	100		620		73
14Sh-6A	800	223	125	1450	391	630	70	6.5	620	1580
350S125A	1180	328	112		462		78
	1570	436	90		550		70
14Sh-6B	745	207	108	1450	313	500	70	6.5	575	1580
350S125B	1100	305	96		373		77
	1460	405	77		422		72.5
14Sh-9	972	270	80	1450	268	400	79	6.5	500	1200
350S75	1260	350	75		306		84
	1440	400	65		319		80
14SA-10	900	250	70	1450	220	300	78	6.5	465	1200
14Sh-9A	1170	325	65		247		84
350S75A	1330	370	56		257		79
14SA-10A	900	250	60	1450	175	250	78	6.5	445	1200
14Sh-9B	1080	300	58		196		84
350S75B	1260	350	54		213		79
14Sh-9B	826	230	59	1450	178	260	75	6.5	428	1200
350S75B	1080	300	55		198		82
	1225	340	47.5		206		77
14ShA-108	972	270	50	1470	164	220	81	6.5	410	1105
14Sh-13	126	350	43.8		179		84
350S44	1480	410	37		188		79
14Sh-13A	864	240	41	1470	121	180	80	6.5	380	1105
350S44A	1120	310	36		130		84
	1330	370	30		136		80
14Sh-19	971	270	32	1450	99.7	132	85	6.5	350	880
350S26	1260	350	26		102		88
	1440	400	22		95.7		82
14Sh-19A	864	240	26	1450	76.5	110	80	6.5	326	880
350S26A	1120	310	21.5		77		85
	1296	360	16.5		80		73
14Sh-28	971	270	20	1450	64.4	75	72	6.5	290	760
350S16	1260	350	16.2		65.3		85
	1440	400	13.4		70		75
14Sh-28A	864	240	16	1450	50.2	55	75	6.5	270	760
350S16A	1044	290	13.4		47.6		80
	1260	350	10		48.3		71
16Sh-9	1080	300	98	1480	400	500	71.5	5.5	535	1910
400S96	1260	350	96		428		77
	1620	450	90		473		84
16Sh-9A	1080	250	85.5	1480	346	440	73	6	510	1910
400S96A	1260	300	85		370		79
	1620	350	78		410		84
16Sh-9B	1080	300	78	1480	29.8	440	77	6	480	1910
400S96B	1260	350	76		318		82
	1620	450	68		349		80
16SA-9J	900	250	40	980	124	185	79	3	535	1910
16SA-9C	1080	300	40		140		84
400S96J	1260	350	38		155.3		84
16SA-9JA	900	250	37	980	112	155	81	5	510	1910
16SA-9D	1080	300	35		123		84
400S96JA	1260	350	32		131		84
20Sh-6	1450	403	108	970	585	800	72.5	6	860	4330
500S98	2016	560	98.4		680		79.5
	2300	640	89		735		76
20Sh-6A	1349	375	93	970	490	630	70	6.4	800	4330
500S98A	1870	520	85		564		77
	2140	595	77		607		74
20Sh-9	1150	430	66	970	340	500	82	6	682	2750
500S59	2016	560	59		390		83
	2450	680	50		433		77
20Sh-9A	1405	390	58	970	300	400	74	6	640	2750
500S59A	1910	530	50		347		75
	2270	630	42		360		72
20Sh-9B	1763	490	42	970	273	355	74	6	600	2750
500S59B	1763	490	42		273		74
	1763	490	42		273		74
20Sh-13	1550	430	40	970	206	280	82	6	550	2340
500S35	2016	560	35.1		219		88
	2410	670	30		247		80
20Sh-13A	1870	520	31	970	186	240	85	6	510	2340
500S35A	1870	520	31		186		85
	1870	520	31		186		85
20Sh-19	1620	450	27	970	148	180	80	6	465	2010
500S22	2016	560	22		147		82
	2340	650	15		137		70
20Sh-19A	1296	360	23	970	111	130	73	6	427	2010
500S22A	1870	520	17		108		80
	2016	560	14		101		76
20Sh-20	2500	694.4	24.5	745	238.3	340	70	4.5	605	3030
	3600	1000	21		248		83	5
	3800	1055	20.4		255.9		82.5	5.2
20Sh-20A	2500	694.4	22	740	218.3	280	70	5	584	3030
	3600	1000	17.2		215		80	5.4
	3800	1055	16		216.5		78	5.6
20Sh-28	1620	450	15.2	970	78.9	110	85	6	390	2000
500S13	2016	560	12.8		79		89
	2325	646	10.6		78		86
24SA-10	2750	764	80	960	689	900	87	8.7	765	4300
24Sh-9	3420	950	71		727		91
600S75	3930	1092	60		730		88
24SA-10B	2550	708	64	960	516	710	86	7.5	710	4300
24Sh-9A	3168	880	61		585		90
600S75A	3640	1010	53		610		86
24Sh-9B	2300	630	60	960	442	550	85	7.5	690	4300
600S75B	2800	778	56		514		88
	3200	889	49		502		85
24Sh-9J	2600	750	39	730	319	380	90	5.2	765	4300
600S39	2600	750	39		319		90
	2600	750	39		319		90
24Sh-13	2502	695	56	970	460	550	83	7.5	630	3200
600S47	3168	880	47.4		465		88
	3499	972	38		426		80
24Sh-15	2500	694	33.5	740	316.7	420	70	5	674	3120
	3600	1000	30		345.9		85	5.5
	4000	1111	28.5		365		83	5.8
24SA-18	2700	750	48.5	970	434	450	83	7.5	615	4000
24Sh-13A	3150	875	44		438		88
600S47A	3600	1000	32		392		80
24Sh-19	2480	700	37	970	295	380	86	7.5	540	2550
600S32	3170	880	32		310		89
	3960	1100	22		279		85

Expand all

Only some product parameters are displayed. For more product information, please contact us.

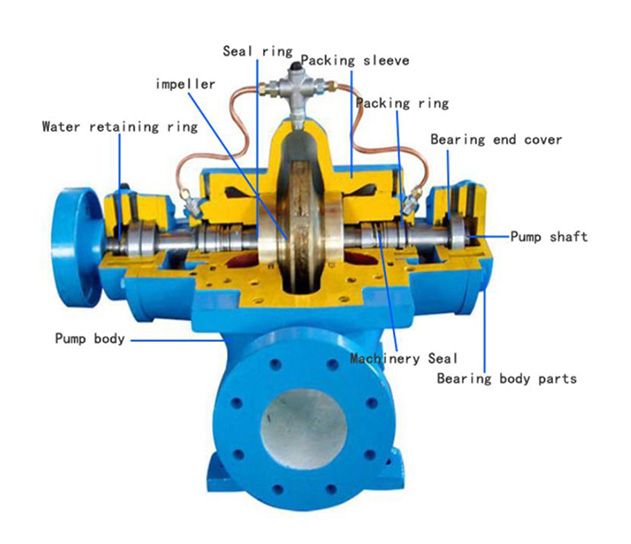

STRUCTURE

LATEST CASE

IS Series End Suction Pump Jun. 20, 2022

Our products have unique advantages in clean water, chemical industry, pressurized water delivery and other fields.

SERVICE SUPPORT

OEM & ODM
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable

DETAILS

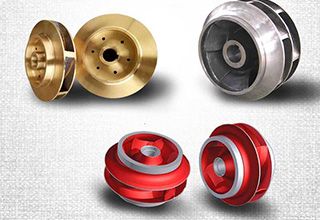

Various Material Impellers
A variety of materials can be selected according to the use environment
Thick cast iron impeller, stainless steel impeller, copper impeller.
Seiko Rotor
High-precision and high-density cast aluminum rotor
Efficient and wear-resistant, long service life.

WORKING CONDITIONS

End suction pump working conditions:

1. Suction pressure ≤ 1.0MPa, or the maximum working pressure of the pump system ≤ 1.6MPa, that is, pump suction inlet pressure + pump head ≤ 1.6MPa, pump static pressure test pressure is 2.5MPa, please specify the system working pressure when ordering. If the working pressure of the pump system is greater than 1.6MPa, it should be specified separately when ordering, so that the flow-through part and connecting part of the pump are made of cast steel.

2. Ambient temperature < 40°C, relative humidity < 95%.

3. The volume content of solid particles in the transported medium does not exceed 0.1% of the unit volume, and the particle size is less than 0.2mm. Note: If the medium used has fine particles, please specify when ordering, so that the manufacturer can use wear-resistant mechanical seals.

Our quality can be trusted

Our products have unique advantages in food, mining, electric power, farmland irrigation, river dredging, pipeline pressurization, sewage treatment and other fields.
