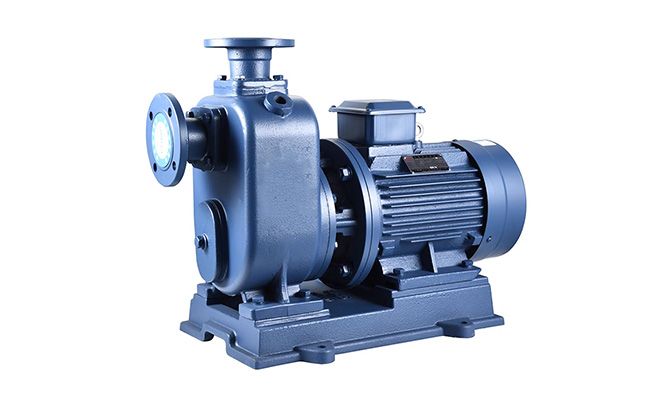

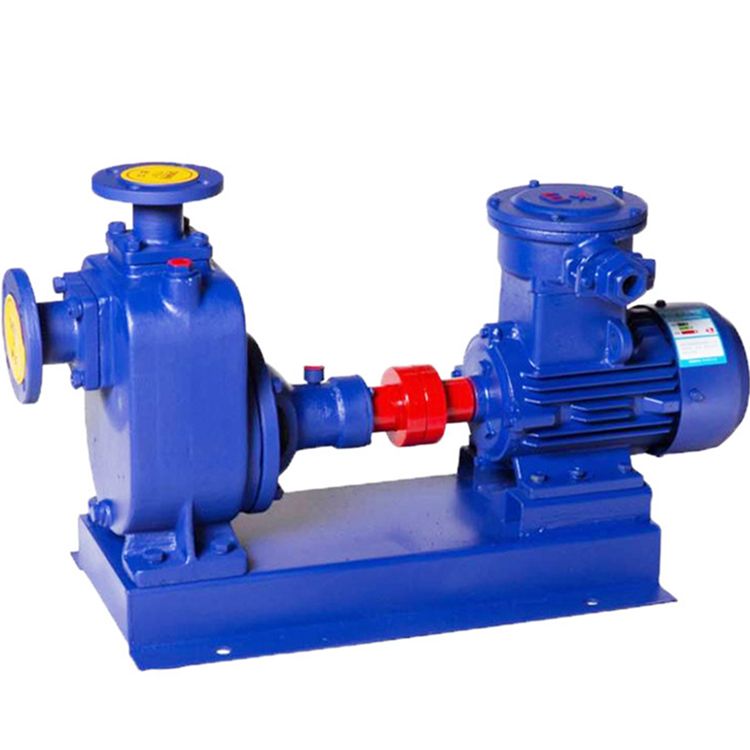

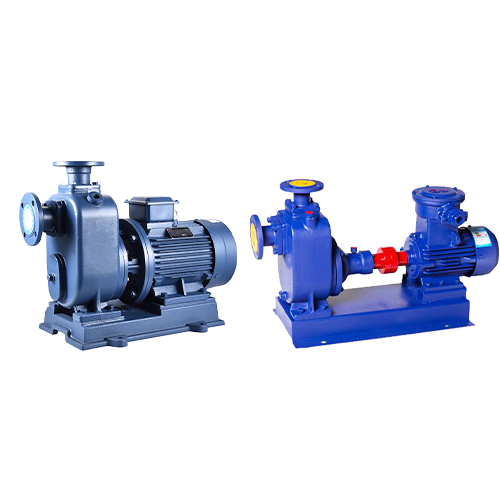

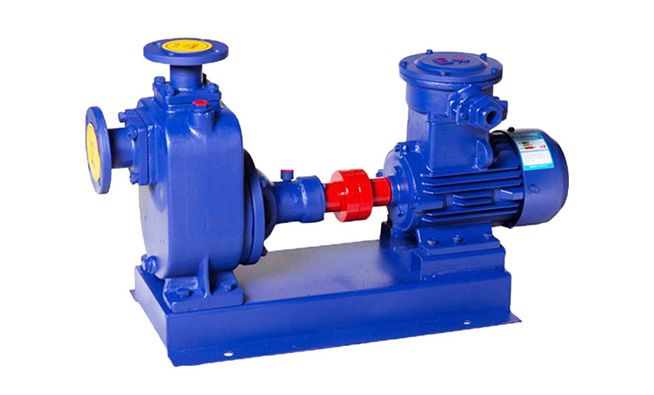

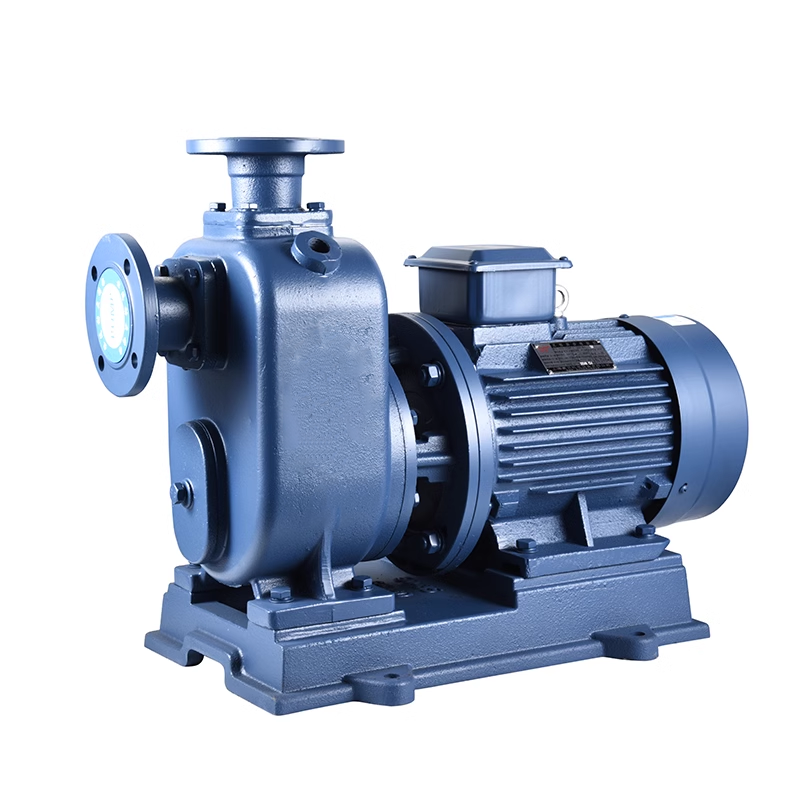

ZX, ZW Centrifugal Pump
The ZX and ZW series self-priming pumps are energy-saving pump products developed based on the absorption, digestion and improvement of relevant domestic and foreign technical data. This pump is a self-priming centrifugal pump. It has the advantages of compact structure, convenient operation, smooth operation, easy maintenance, high efficiency, long life, and strong self-priming ability. There is no need to install a bottom valve in the pipeline. Before working, you only need to ensure that there is a quantitative amount of liquid in the pump body; The unique design of the impeller flow channel does not require the installation of a bottom like a general self-priming clean water pump. valve and water filling, and can suck and discharge liquids containing large solid particles and long fiber impurities, thus simplifying the piping system and improving labor conditions.
The ZX and ZW series self-priming pumps are energy-saving pump products developed based on the absorption, digestion and improvement of relevant domestic and foreign technical data. This pump is a self-priming centrifugal pump. It has the advantages of compact structure, convenient operation, smooth operation, easy maintenance, high efficiency, long life, and strong self-priming ability. There is no need to install a bottom valve in the pipeline. Before working, you only need to ensure that there is a quantitative amount of liquid in the pump body; The unique design of the impeller flow channel does not require the installation of a bottom like a general self-priming clean water pump. valve and water filling, and can suck and discharge liquids containing large solid particles and long fiber impurities, thus simplifying the piping system and improving labor conditions.
ADVANTAGE
Stock products: 3 days
Customized products: 15 days
We offer 36 months warranty
We accept OEM&ODM for any quantity
All materials customizable
All capabilities customizable
Non-disclosure agreement
24-hour online video call after-sales service
Alloy seals of different materials are used to transport different media without leakage.
FUNCTION
The material can be customized according to the use requirements
Model: ZX/ZW
Warranty period: 2 years
Flow: 3.2-800 m3/h
Lift: 10-80 m
Motor power: 0.75-132 KW
Speed: 1450-2900 r/min
Drive mode: diesel, electric
Water pump type: ordinary type, outdoor type, mobile type (two-wheel mobile type, four-wheel mobile type)
Model: ZX/ZW
Warranty period: 2 years
Flow: 3.2-800 m3/h
Lift: 10-80 m
Motor power: 0.75-132 KW
Speed: 1450-2900 r/min
Drive mode: diesel, electric
Water pump type: ordinary type, outdoor type, mobile type (two-wheel mobile type, four-wheel mobile type)
APPLICATION
Dry Land Water Delivery
Farmland Irrigation
Fire Pressurization

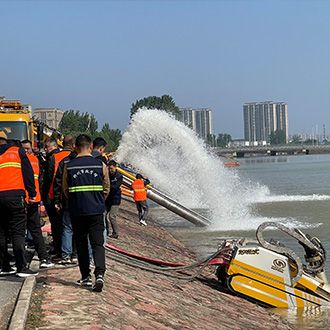

Flood Control and Drainage
High-rise Water Supply
Do You Have Any Questions In Your Mind?
Ask us we will solve your questions and try to send free sample kit of your requested matierial
SPECIFICATION
| Types | Discharge | Capacity | Head | Power | speed |
| (mm) | (m3/h) | (m) | (kw) | (r/min) | |
| ZW40-15-30 | 40 | 15 | 30 | 3 | 2900 |
| ZW50-10-20 | 50 | 10 | 20 | 2.2 | 2900 |
| ZW65-65-25 | 65 | 65 | 25 | 7.5 | 2900 |
| ZW80-50-60 | 80 | 50 | 60 | 22 | 2900 |
| ZW100-80-80 | 100 | 80 | 80 | 45 | 2900 |
| ZW150-180-14 | 150 | 180 | 14 | 15 | 1450 |
| ZW200-280-28 | 200 | 280 | 28 | 55 | 1450 |
| ZW250-420-20 | 250 | 420 | 20 | 55 | 1450 |
Expand all
DETAILS

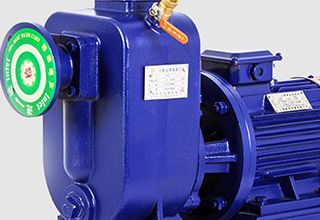

Strong self-priming performance,
Install the pump above the liquid level.
Almost zero clogging:
Large solids and extra long fibers,
The semi-open impeller design allows the pump to pass.
All copper movement
Mute experience

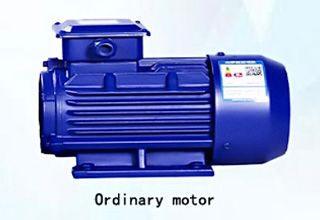

100% copper core wire
Motor protection class: IP68

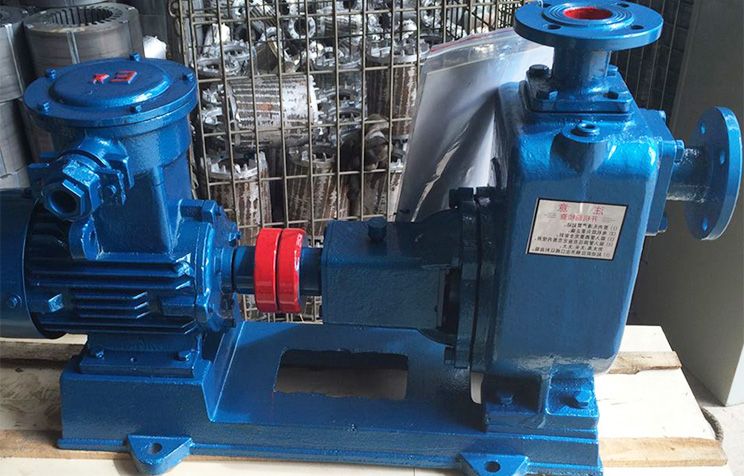

Explosion-proof motors can also be
equipped under special operating conditions
WORKING CONDITIONS
End suction pump working conditions
1. Suction pressure ≤ 1.0MPa, or the maximum working pressure of the pump system ≤ 1.6MPa, that is, pump suction inlet pressure + pump head ≤ 1.6MPa, pump static pressure test pressure is 2.5MPa, please specify the system working pressure when ordering. If the working pressure of the pump system is greater than 1.6MPa, it should be specified separately when ordering, so that the flow-through part and connecting part of the pump are made of cast steel.
2. Ambient temperature <40°C, relative humidity <95%.
3. The volume content of solid particles in the transported medium does not exceed 0.1% of the unit volume, and the particle size is less than 0.2mm.
Note: If the medium used has fine particles, please specify when ordering, so that the manufacturer can use wear-resistant mechanical seals.
