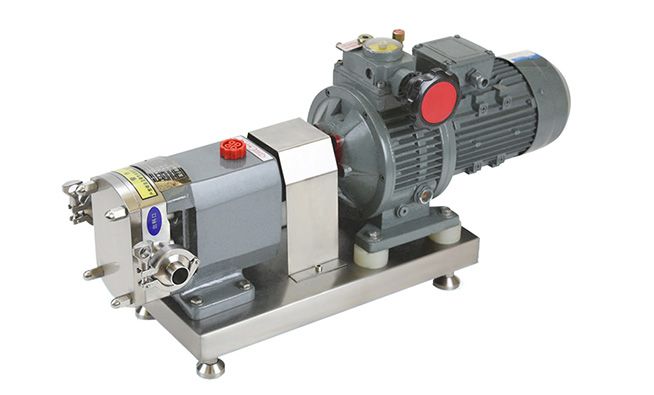

Cam Type Double Rotor Pump
The cam type double rotor pump is a multi-purpose two-way positive displacement pump produced by our company. This product uses two rotors running synchronously. The cam rotor pump adopts gear transmission, and the main shaft and the auxiliary shaft drive the rotor to rotate synchronously and reversely, so that the volume of the pump changes, forming a higher vacuum degree and discharge pressure, especially suitable for sanitary media and highly corrosive high viscosity medium.
The cam type double rotor pump is a multi-purpose two-way positive displacement pump produced by our company. This product uses two rotors running synchronously. The cam rotor pump adopts gear transmission, and the main shaft and the auxiliary shaft drive the rotor to rotate synchronously and reversely, so that the volume of the pump changes, forming a higher vacuum degree and discharge pressure, especially suitable for sanitary media and highly corrosive high viscosity medium.
ADVANTAGE
Stock products: 3 days
Customized products: 15 days
We offer 36 months warranty
We accept OEM&ODM for any quantity
All materials customizable
All capabilities customizable
Non-disclosure agreement
24-hour online video call after-sales service
Alloy seals of different materials are used to transport different media without leakage.
FUNCTION
The material can be customized according to the use requirements
Product name: Rotor Pump
Flow: 0-120 m³
Pressure: 1-1.5 m
Speed: 4-700 r/min
Motor Power: 0.25~90 kw
Inlet diameter: 1-4 inch
outlet diameter: 20-150 inch
APPLICATION

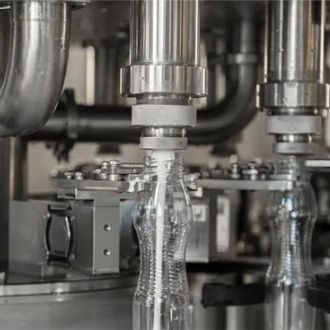

Beverage industry
Food Industry
Pharmaceutical industry
Cosmetics industry
Do You Have Any Questions In Your Mind?
Ask us we will solve your questions and try to send free sample kit of your requested matierial
SPECIFICATION
| Model | Discharge Capacity | Flow | Speed Range | Max Pressure | Motor Power | Caliber |
| L/100r | (m³/h) | (rpm) | (MPa) | (kw) | (Clamp/Flange) | |
| RP-1-5 | 5 | 0~1 | 4~700 | 1 | 0.25~1.5 | 1''/DN25 |
| RP-2-10 | 10 | 0.2~2 | 40~700 | 1.2 | 0.55~2.2 | 1.25''/DN32 |
| RP-3-17 | 17 | 0.4~3 | 40~500 | 1.5 | 0.75~3 | 1.5''/DN40 |
| RP-5-26 | 26 | 0.6~5 | 40~500 | 1.5 | 1.5~5.5 | 2''/DN50 |
| RP-8-46 | 46 | 1~8 | 40~450 | 1.5 | 2.2~11 | 2.5''/DN65 |
| RP-12-70 | 70 | 1.6~1.2 | 40~450 | 1.5 | 3~15 | 2.5''/DN65 |
| RP-20-120 | 120 | 2.8~20 | 40~400 | 1.5 | 4~18.5 | 3''/DN80 |
| RP-35-210 | 210 | 5~35 | 40~400 | 1.5 | 7.5~30 | 4''/DN100 |
| RP-55-420 | 420 | 10~55 | 40~350 | 1.5 | 11~45 | DN125 |
| RP-80-670 | 670 | 16~80 | 40~350 | 1.5 | 15~75 | DN125orDN150 |
| RP-120-1100 | 1100 | 26~120 | 40~300 | 1.5 | 22~90 | DN150 |
| Only some product parameters are displayed. For more product information, please contact us. | ||||||
Expand all
LATEST CASE
SERVICE SUPPORT
OEM & ODM
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable

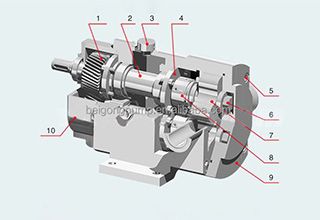

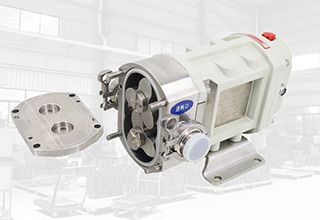

DETAILS
1> Gear
2> Transmission shaft
3> Vent plug
4> Bearing cap
5> Tighten
6> Rotor locking
7> Rotor
8> Sealed
9> The cover
10> Gearbox
1> Material
304/316stainless steel
2> Characteristic
Multiple interface design
No leakage
High temperature resistance
3> Transfer
Chocolate, jam, chili paste, tomato paste, honey, rubber, meat foam, cosmetics, resin, etc.

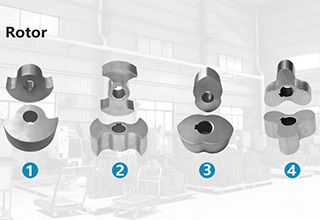

1> Single lobe rotor
2> Two lobe rotor
Butterfly type roto
3> Three lobe rotor
Helical three lobe rotor
4> Multi lobe rotor

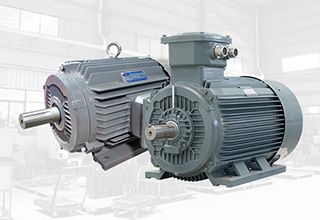

1> Material
100% Copper wire
2> Characteristic
Pole: 2 /4 /6
Protection class: IP168
Voltage: 220V/380V Optional: ordinary motor, servo motor, reduction motor, stepless speed regulating motor, variable frequency motor, etc
