Home / Products/Screw Pump/Three Screw Pump

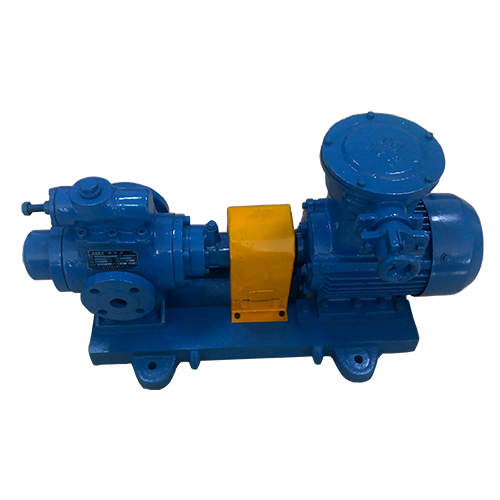

  • Three Screw Pump

    The three-screw pump is formed by the pump body and the screw. When the driving screw rotates, it drives the driven screw that engages with it to rotate together. The volume of the screw meshing space at one end of the suction chamber gradually increases and the pressure decreases. Generally, a mechanical seal is used, and the pump is driven by a motor through a claw coupling. Viewed from the extended end of the main shaft to the pump, it rotates clockwise.


    Inquire Now

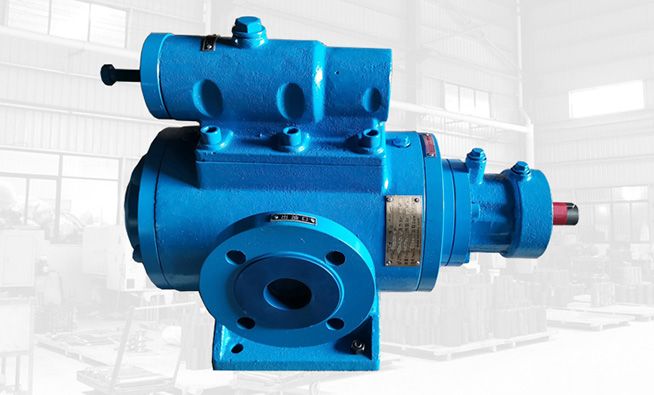

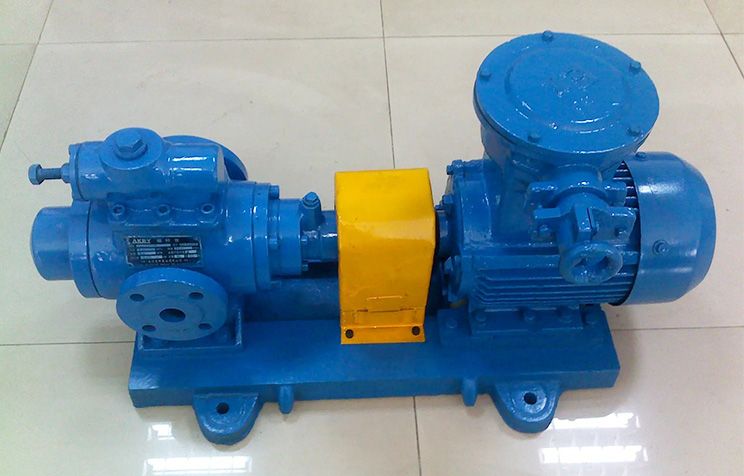

    Three Screw Pump

Three Screw Pump

The three-screw pump is formed by the pump body and the screw. When the driving screw rotates, it drives the driven screw that engages with it to rotate together. The volume of the screw meshing space at one end of the suction chamber gradually increases and the pressure decreases. Generally, a mechanical seal is used, and the pump is driven by a motor through a claw coupling. Viewed from the extended end of the main shaft to the pump, it rotates clockwise.


Inquire Now

ADVANTAGE

  • Fast Delivery
    Fast Delivery

    Stock products: 3 days

    Customized products: 15 days


  • After Sale Services
    After Sale Services

    We offer 36 months warranty

  • OEM&ODM Available
    OEM&ODM Available

    We accept OEM&ODM for any quantity

  • Customize Capability
    Customize Capability

    All materials customizable

    All capabilities customizable

  • Service Support
    Service Support

    Non-disclosure agreement

    24-hour online video call after-sales service

  • Good sealing performance
    Good sealing performance

    Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

1> Material
HT200, QT450-10, ZG270-500
2> Characteristic
High pressure High efficiency
3> Transfer
Heavy fuel oil, light fuel oil, high temperature heating oil, high viscosity oil

Pump Shell

1> Material
100% Copper wire
2> Characteristic
Pole: 2 /3
Speed: 1450-2900 r/min
Hz: 50 or 60
Voltage: 220V//380V

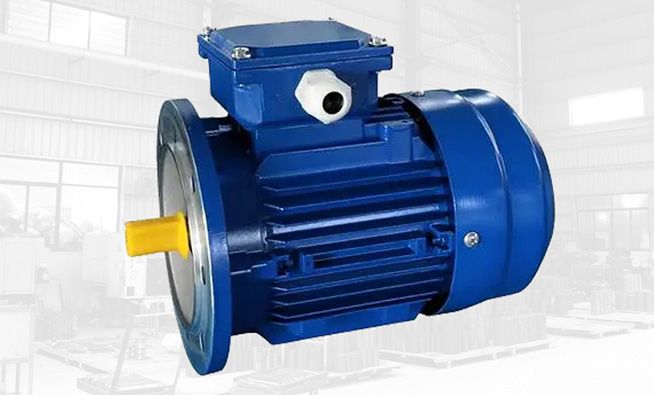

Motor

APPLICATION

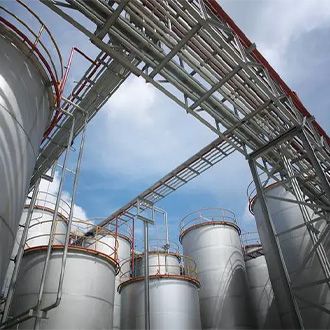

  • Petrochemical

    Petrochemical

  • Bio-pharmacy

    Bio-pharmacy

  • Daily chemical

    Daily chemical

  • Petrochemical

    Petrochemical

  • Ship industry

    Ship industry

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

ModelPressure PMPaCapacitySpeed n
r/min		NPSHR
m		Power
m³/hL/min
25x4-461.0
2.5		0.8
0.6		13
10		145040.75
1.5
1.0
2.5		2.0
1.6		33
26		29004.51.5
3
25x6-464.0
6.0		0.6
0.4		10
6.6		14503.52.2
3
4.0
6.0		1.6
1.4		26
23		290044
5.5
30x6-461.0
2.5		1.6
1.2		26
20		14504.51.1
2.2
1.0
2.5		3.6
3.2		60
53		290052.2
4
36x4-461.0
2.5		2.8
2.4		45
40		14504.54
7.5
1.0
2.5		6.5
6		108
100		290055.5
11
36x6A-464.0
6.0		2.4
2		40
33		1450515
4.0
6.0		6
5		100
83		29005.518.5
42x4-461.0
2.5		4.8
4.2		80
70		145054
5.5
1.0
2.5		10.5
10		175
166		29005.55.5
15
45x4-461.0
2.5		6.3
5.9		106
99		145053
7.5
1.0
2.5		13.5
13		225
217		29005.57.5
15
50x2-460.6
0.8
1.0		8.2
7.5
6.5		135
125
108		145053
4
5.5
0.6
0.8
1.0		17.5
16
15		290
265
250		29005.55.5
75
11
60x4-461.0
2.5		15.5
14.5		255
245		1450511
15
1.0
2.5		32
31.5		533
525		29005.518.5
37
70x2-460.6
1.0
1.6		24
23.5
22.5		400
390
370		145057.5
11
15
70x4-461.0
2.5		24.5
23.5		408
392		1450518.5
30
80x2-460.6
1.0
1.6		36.5
35
34.5		608
594
575		1450511
18.5
22
80x4-461.0
2.5		37
35		617
590		14505.530
45

Expand all

STRUCTURE

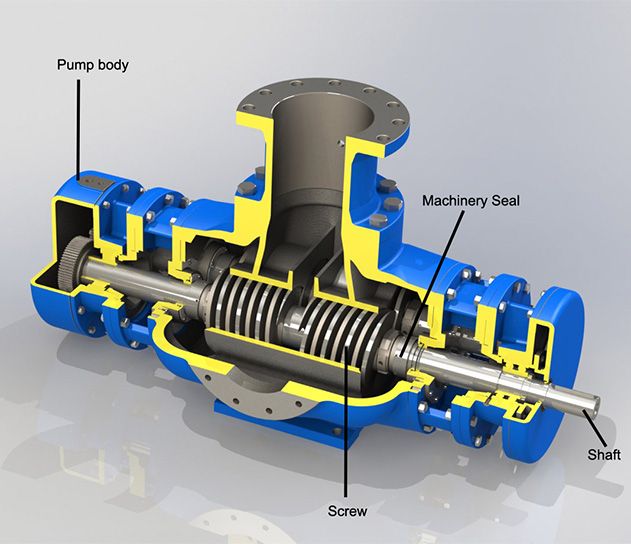

Screw Pump Composition

Screw Pump Composition

LATEST CASE

Contact us

DETAILS

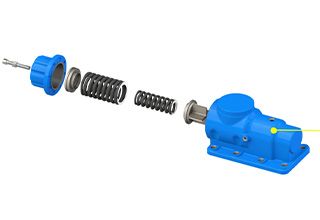

  • Safety valve
    Safety valve

    HT200, QT450-10

  • Glanding
    Glanding

    HT200, QT450-10

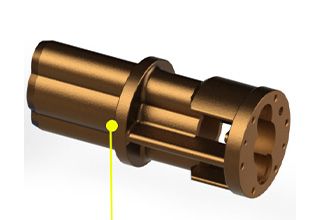

  • Bushing
    Bushing

    ZL109, ZCuSn5Pb5Zn5, ZCusn10P1, wear-resistant ductile iron

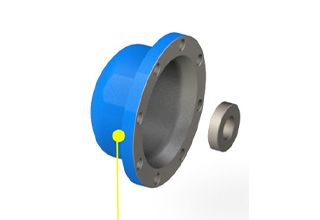

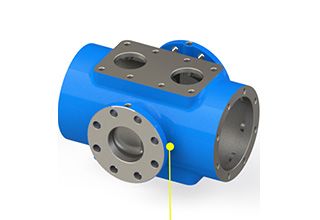

  • Pump Body
    Pump Body

    HT200, QT450-10, ZG270-500

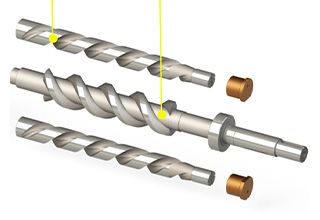

  • Auxiliary Screw
    Auxiliary Screw

    16MnCrS5, 40Cr, 45, 38CrMoAl

  • Main Screw
    Main Screw

    16MnCrS5, 40Cr, 45, 38CrMoAl

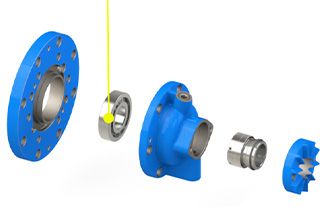

  • Bearing
    Bearing

    GCr15, SUS440C

WORKING CONDITIONS

Precautions for use:

1. The direction must be determined before turning on the machine, and no reversal is allowed: 2. It is strictly forbidden to run dry without medium to avoid damage to the stator; 3. The pump that is newly installed or stopped for several days cannot be started immediately. You should inject a proper amount of oil or soapy water into the pump body, and then use a pipe wrench for a few turns before starting; 4. After transporting high-viscosity or particle-containing and corrosive media, water or solvent should be used for flushing to prevent blockage, so as to avoid difficulty in starting next time; 5. In winter, the effusion should be removed to prevent freezing and cracking; 6. Lubricating oil should be added to the bearing seat regularly during use, and if there is leakage at the shaft end, the oil seal should be treated or replaced in time; 7. If an abnormal situation is found during operation, stop immediately to check the cause and eliminate the fault.
