Submersible Pump Series

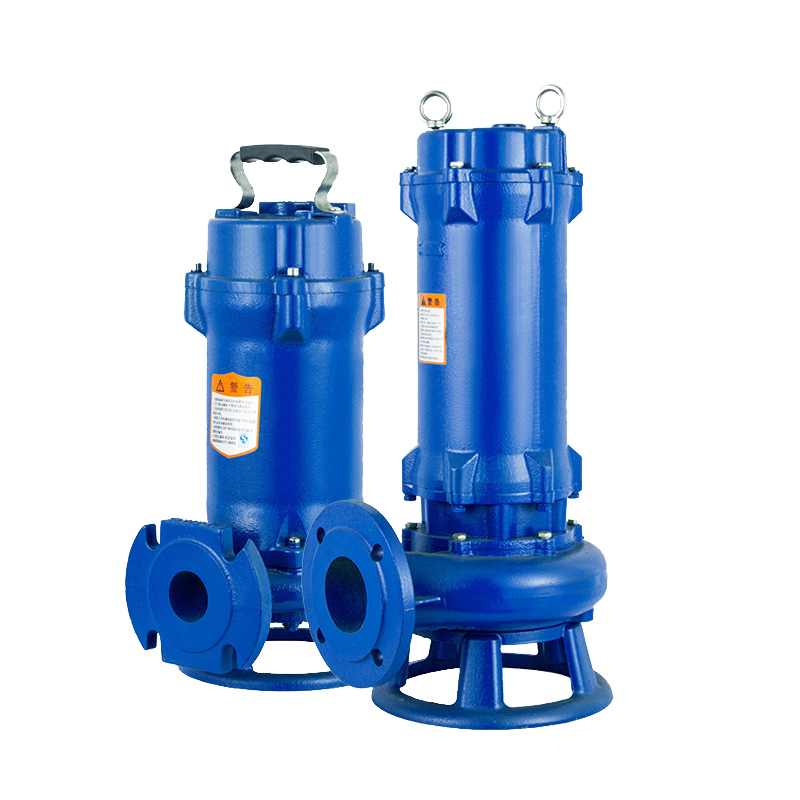

WQ type sewage pump and ZJQ type slurry pump are both submersible pump series, but their usage and materials are still different.

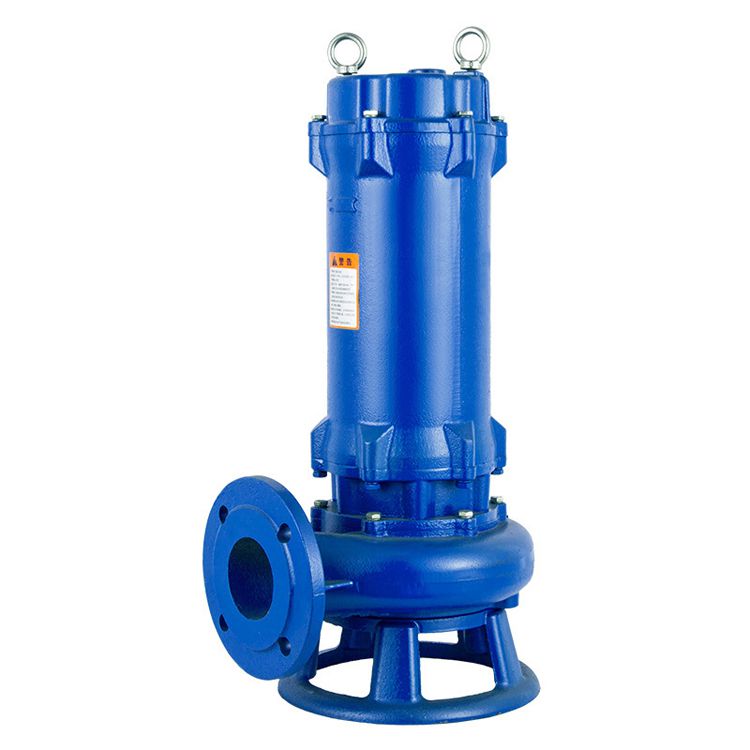

WQ series submersible sewage pumps are mainly made of cast iron and stainless steel, featuring anti-winding, non-clogging, easy installation, and automatic control.

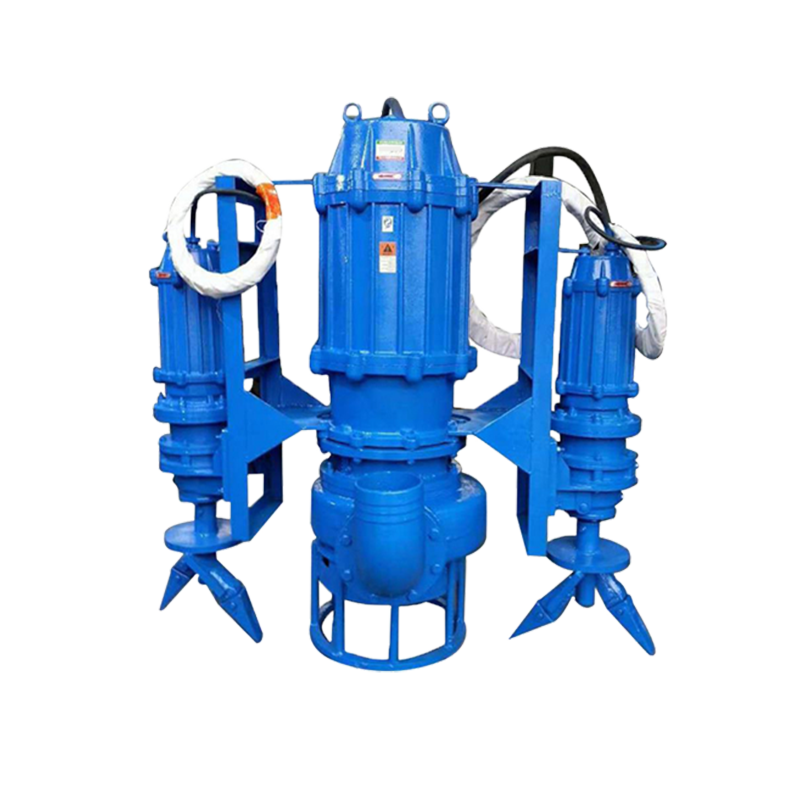

ZJQ series submersible slurry pumps are mainly made of high-chromium alloy materials, which have the characteristics of simple structure, convenient installation and movement, safe and reliable use, and long service life.

Inquire Now

ADVANTAGE

Fast Delivery
Stock products: 3 days
Customized products: 15 days
After Sale Services
We offer 36 months warranty
OEM&ODM Available
We accept OEM&ODM for any quantity
Customize Capability
All materials customizable
All capabilities customizable
Service Support
Non-disclosure agreement
24-hour online video call after-sales service

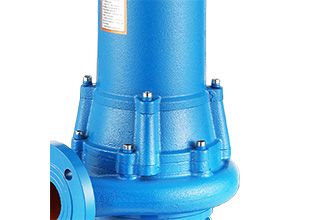

Good sealing performance
Alloy seals of different materials are used to transport different media without leakage.

FUNCTION

The material can be customized according to the use requirements

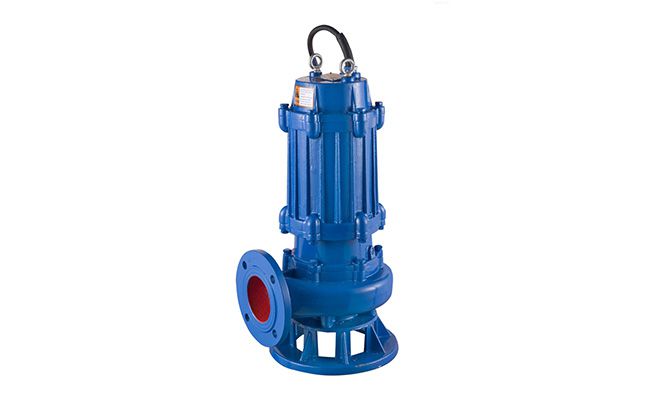

WQ cast iron submersible sewage pump is used to convey clean water with a medium temperature not exceeding 60 ° C, as well as sewage and dirt with particles. (A cutting knife is installed at the bottom of the water pump to pump liquid containing solid particles such as short fibers, paper scraps, sand, or soft solids.)

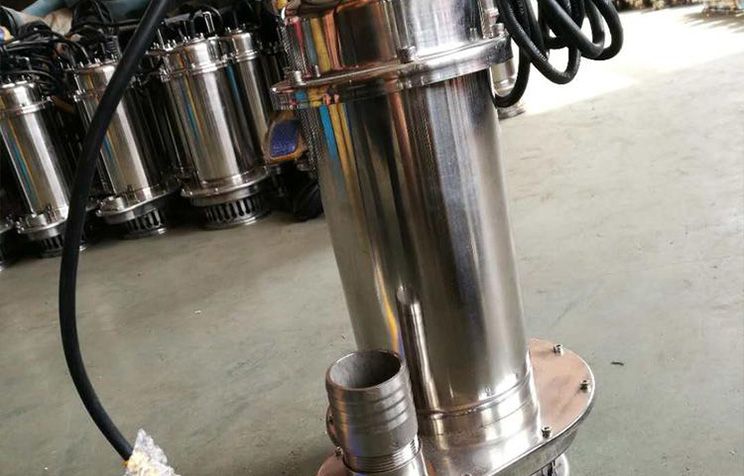

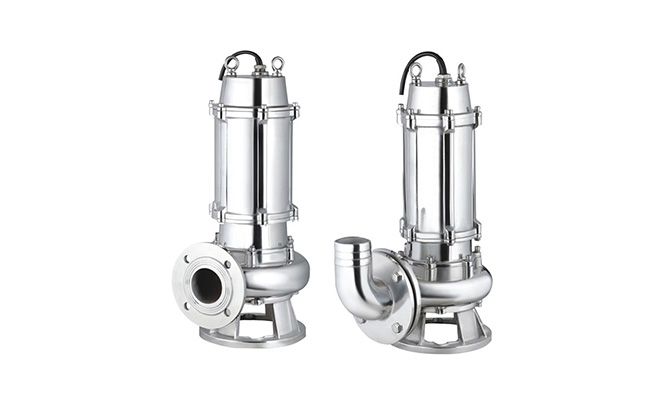

WQ stainless steel submersible sewage pump is used to transport clean water and sewage that are also corrosive. 304/316 stainless steel materials can be selected based on the concentration of corrosive media. (Explosion-proof submersible sewage pumps are used in coal mines, chemical, petroleum, and other industries that contain methane or coal dust explosive gas mixtures for safe discharge and other explosion-proof locations.)

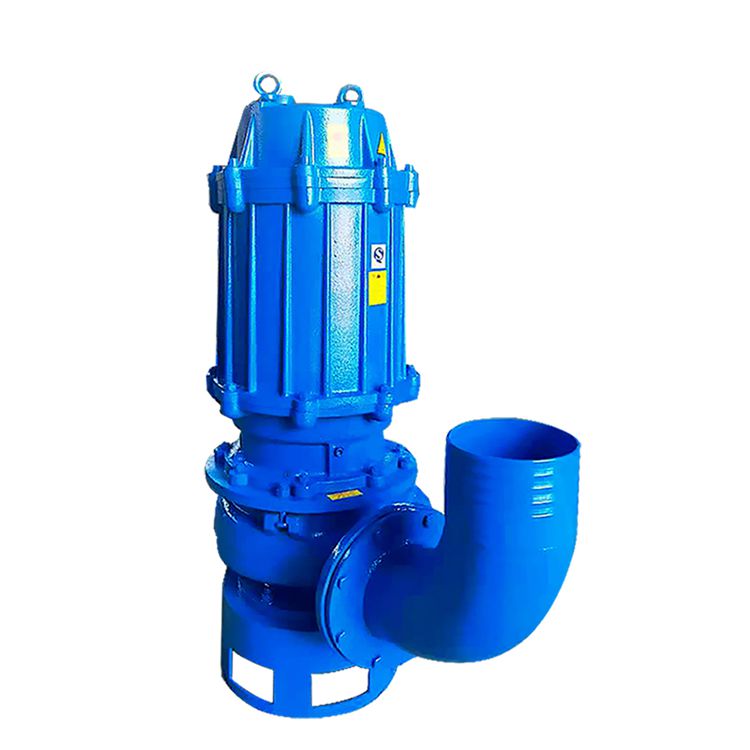

ZJQ submersible slurry pump is made of corrosion-resistant and wear-resistant high chromium alloy material. Suitable for transporting corrosive solid particles and chemical pastes in industries such as mining, electric power, metallurgy, coal, and environmental protection. (Can be customized according to the use environment: dedicated control cabinet, forced cooling system, external mixing wheel, conical protective cover, high-pressure water nozzle)

APPLICATION

Chemical Industry

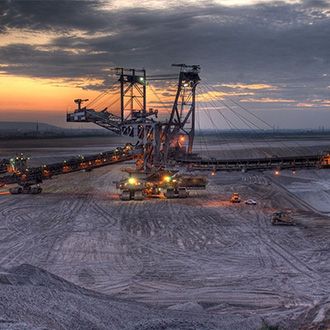

Mining Industry

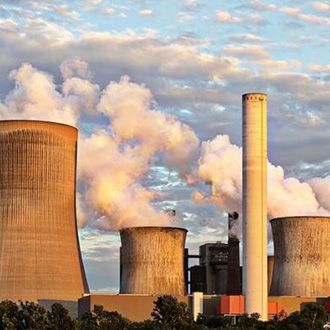

Power Plant

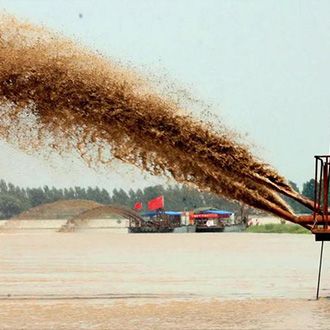

Sand Mining

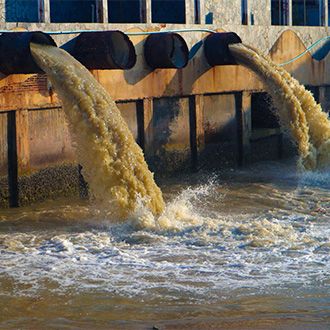

Wastewater Treatment

Do You Have Any Questions In Your Mind?

Ask us we will solve your questions and try to send free sample kit of your requested matierial

Inquire Now

SPECIFICATION

Performance parameter table
Types	Flow	Head	Power	Speed
Types	(m3/h)	(m)	(kw)	(r/min)
50ZJQ25-15-4	25	15	4	1450
80ZJQ40-12-4	40	12	4	1450
80ZJQ45-15-5.5	45	15	5.5	1450
80ZJQ70-12-5.5	70	12	5.5	1450
50ZJQ25-30-7.5	25	30	7.5	1450
80ZJQ30-30-7.5	30	30	7.5	1450
80ZJQ80-15-7.5	80	15	7.5	1450
80ZJQ50-20-7.5	50	20	7.5	1450
100ZJQ100-12-7.5	100	12	7.5	1450
80ZJQ80-20-11	80	20	11	1450
80ZJQ50-30-11	50	30	11	1450
100ZJQ90-17-11	90	17	11	1450
80ZJQ80-35-15	80	35	15	1450
100ZJQ100-20-15	100	20	15	1450
100ZJQ120-16-15	120	16	15	1450
100ZJQ150-20-18.5	150	20	18.5	1450
150ZJQ200-12-18.5	200	12	18.5	1450
100ZJQ150-25-22	150	25	22	1450
100ZJQ100-40-22	100	40	22	1450
100ZJQ120-35-22	120	35	22	1450
80ZJQ80-45-22	80	45	22	1450
80ZJQ50-50-22	50	50	22	1450
50ZJQ40-52-22	40	52	22	1450
150ZJQ180-22-22	180	22	22	1450
150ZJQ250-15-22	250	15	22	1450
150ZJQ200-22-22	200	22	22	1450
150ZJQ250-18-22	250	18	22	1450
100ZJQ120-25-22	120	25	22	1450
100ZJQ150-38-30	150	38	30	1450
150ZJQ300-15-30	300	15	30	1450
150ZJQ250-22-30	250	22	30	1450
150ZJQ350-22-37	350	22	37	1450
150ZJQ300-25-37	300	25	37	1450
150ZJQ200-35-37	200	35	37	1450
100ZJQ80-60-37	80	60	37	1450
100ZJQ100-50-37	100	50	37	1450
100ZJQ100-60-45	100	60	45	1450
100ZJQ120-50-45	120	50	45	1450
100ZJQ100-70-45	100	70	45	1450
150ZJQ250-40-45	250	40	45	1450
100ZJQ220-45-55	220	45	55	1450
100ZJQ140-60-55	140	60	55	1450
200ZJQ450-25-55	450	25	55	1450
100ZJQ170-70-75	170	70	75	1450
200ZJQ500-25-75	500	25	75	1450
100ZJQ230-60-75	230	60	75	1450
200ZJQ500-30-90	500	30	90	1450
200ZJQ450-35-90	450	35	90	1450
100ZJQ200-70-90	200	70	90	1450
100ZJQ200-80-110	200	80	110	1450
100ZJQ330-78-132	330	78	132	1450
100ZJQ300-95-132	300	95	132	1450

Performance parameter table
Types	Caliber	Flow	Head	Speed	Power
	(mm)	(m³/h)	(m)	(r/min)	(kw)
50WQ10-12-1.1	50	10	12	2900	1.1
65WQ15-9-1.1	65	15	9	2900	1.1
50WQ10-16-1.5	50	10	16	2900	1.5
50WQ15-15-1.5	50	15	15	2900	1.5
65WQ20-10-1.5	65	20	10	2900	1.5
50WQ9-22-2.2	50	9	22	2900	2.2
50WQ15-20-2.2	50	15	20	2900	2.2
65WQ20-15-2.2	65	20	15	2900	2.2
80WQ40-10-2.2	80	40	10	2900	2.2
100WQ50-7-2.2	100	50	7	2900	2.2
50WQ15-25-3	50	15	25	2900	2.2
65WQ25-18-3	65	25	18	2900	3
65WQ37-13-3	65	37	13	2900	3
80WQ45-12-3	80	45	12	2900	3
80WQ43-13-3	80	43	13	2900	3
100WQ60-9-3	80	60	9	2900	3
50WQ15-30-4	50	15	30	2900	4
65WQ25-25-4	65	25	25	2900	4
80WQ40-16-4	80	40	16	2900	4
100WQ60-12-4	100	60	12	2900	4
100WQ80-10-4	100	80	10	2900	4
50WQ20-35-5.5	50	20	35	2900	5.5
65WQ25-30-5.5	65	25	30	2900	5.5
80WQ40-22-5.5	80	40	22	2900	5.5
100WQ60-18-5.5	100	60	18	2900	5.5
150WQ120-8-5.5	150	120	8	2900	5.5
50WQ20-42-7.5	50	20	42	2900	7.5
65WQ25-36-7.5	65	25	36	2900	7.5
80WQ40-28-7.5	80	40	28	2900	7.5
100WQ65-22-7.5	100	65	22	2900	7.5
150WQ120-10-7.5	150	120	10	2900	7.5
50WQ20-55-11	50	20	55	2900	11
65WQ30-40-11	65	30	40	2900	11
80WQ60-30-11	80	60	30	2900	11
100WQ80-25-11	100	80	25	2900	11
150WQ100-20-11	150	100	20	2900	11
150WQ120-15-11	150	120	15	2900	11
200WQ180-11-11	200	180	11	2900	11
50WQ20-70-15	50	20	70	2900	15
65WQ30-60-15	65	30	60	2900	15
80WQ60-40-15	80	60	40	2900	15
100WQ80-35-15	100	80	35	2900	15
150WQ100-30-15	150	100	30	2900	15
150WQ120-25-15	150	120	25	2900	15
200WQ180-15-15	200	180	15	2900	15
50WQ20-80-18.5	50	20	80	2900	18.5
65WQ30-68-18.5	65	30	68	2900	18.5
80WQ60-45-18.5	100	80	40	2900	18.5
100WQ80-40-18.5	100	80	40	2900	18.5
150WQ100-36-18.5	150	100	36	2900	18.5
200WQ180-18-18.5	200	180	18	2900	18.5
50WQ20-90-22	50	20	90	2900	22
65WQ30-75-22	65	30	75	2900	22
80WQ60-50-22	80	60	50	2900	22
100WQ80-45-22	100	80	45	2900	22
150WQ100-40-22	150	100	40	2900	22
200WQ200-20-22	200	200	20	2900	22
80WQ80-13-5.5	80	80	13	1450	5.5
100WQ110-10-5.5	100	110	10	1450	5.5
150WQ150-7-5.5	150	150	7	1450	5.5
80WQ80-20-7.5	80	80	20	1450	7.5
100WQ100-15-7.5	100	100	15	1450	7.5
150WQ145-9-7.5	150	145	9	1450	7.5
200WQ250-6-7.5	200	250	6	1450	7.5
100WQ100-25-11	100	100	25	1450	11
150WQ180-11-11	150	180	11	1450	11
200WQ300-7-11	200	300	7	1450	11
250WQ400-5-11	250	400	5	1450	11
100WQ100-30-15	100	100	30	1450	15
150WQ200-15-15	150	200	15	1450	15
200WQ250-11-15	200	250	11	1450	15
250WQ500-5-15	250	500	5	1450	15
100WQ100-35-18.5	100	100	35	1450	18.5
150WQ180-20-18.5	150	180	20	1450	18.5
200WQ250-15-18.5	200	250	15	1450	18.5
200WQ350-10-18.5	200	350	10	1450	18.5
250WQ500-7-18.5	250	500	7	1450	18.5
300WQ650-5-18.5	300	650	5	1450	18.5
100WQ100-40-22	100	100	40	1450	22
150WQ200-22-22	150	200	22	1450	22
200WQ300-16-22	200	300	16	1450	22
200WQ400-10-22	200	400	10	1450	22
250WQ500-9-22	250	500	9	1450	22
300WQ650-7-22	300	650	7	1450	22
100WQ120-45-30	100	120	45	1450	30
150WQ180-30-30	150	180	30	1450	30
200WQ250-22-30	200	250	22	1450	30
250WQ500-12-30	250	500	12	1450	30
250WQ600-9-30	250	600	9	1450	30
300WQ800-7-30	300	800	7	1450	30
350WQ1500-4-30	350	1500	4	980	30
100WQ120-50-37	100	120	50	1450	37
150WQ200-35-37	150	200	35	1450	37
200WQ300-28-37	200	300	28	1450	37
200WQ350-25-37	200	350	25	1450	37
250WQ600-12-37	250	600	12	1450	37
300WQ800-9-37	300	800	9	1450	37
350WQ1000-6-37	350	1000	6	1450	37
350WQ1100-6-37	350	1100	6	980	37
400WQ1300-5-37	400	1300	5	980	37
100WQ100-57-45	100	100	57	1450	45
150WQ200-40-45	150	200	40	1450	45
200WQ300-32-45	200	300	32	1450	45
200WQ400-25-45	200	400	25	1450	45
250WQ600-15-45	250	600	15	1450	45
300WQ800-12-45	300	800	12	1450	45
350WQ1200-8-45	350	1200	8	1450	45
350WQ1300-8-45	350	1300	8	980	45
400WQ1700-6-45	400	1700	6	980	45
100WQ100-65-55	100	100	65	1450	55
150WQ180-50-55	150	180	50	1450	55
200WQ300-40-55	200	300	40	1450	55
200WQ400-30-55	200	400	30	1450	55
250WQ600-20-55	250	600	20	1450	55
300WQ800-15-55	300	800	15	1450	55
350WQ1000-10-55	350	1000	10	1450	55
350WQ1100-10-55	350	1100	10	980	55
400WQ1300-8-55	400	1300	8	1450	55
400WQ1500-8-55	400	1500	8	980	55
500WQ2200-5-55	500	2200	5	980	55
100WQ120-75-75	100	120	75	1450	75
150WQ200-60-75	150	200	60	1450	75
200WQ350-45-75	200	350	45	1450	75
250WQ600-25-75	250	600	25	1450	75
300WQ800-20-75	300	800	20	1450	75
350WQ1000-15-75	350	1000	15	1450	75
350WQ1500-12-75	350	1500	12	980	75
400WQ1300-13-75	400	1300	13	1450	75
400WQ1700-10-75	400	1700	100	980	75
500WQ2000-8-75	500	2000	8	980	75
500WQ2700-6-75	500	2700	6	740	75
100WQ120-85-90	100	120	85	1450	90
150WQ200-70-90	150	200	70	1450	90
200WQ300-60-90	200	300	60	1450	90
200WQ400-50-90	200	400	50	1450	90
250WQ600-30-90	250	600	30	1450	90
300WQ800-25-90	300	800	25	1450	90
350WQ1000-18-90	350	1000	18	1450	90
350WQ1200-18-90	350	1200	18	980	90
400WQ1300-16-90	400	1300	16	1450	90
400WQ1500-15-90	400	1500	15	980	90
500WQ2000-10-90	500	2000	10	980	90
500WQ2500-8-90	500	2500	8	740	90
600WQ3000-6-90	600	3000	6	740	90
100WQ100-100-110	100	100	100	1450	110
150WQ180-80-110	150	180	80	1450	110
200WQ300-65-110	200	300	65	1450	110
250WQ600-40-110	250	40	600	1450	110
300WQ1000-25-110	300	1000	25	1450	110
350WQ1300-20-110	350	1300	20	1450	110
350WQ1600-16-110	350	1600	16	980	110
400WQ1500-17-110	400	1500	17	1450	110
400WQ1800-15-110	400	1800	15	980	110
500WQ2500-10-110	500	2500	10	980	110
500WQ3000-8-110	500	3000	8	740	110
600WQ3200-7-110	600	3200	7	980	110
600WQ3800-6-110	600	3800	6	740	110
150WQ200-90-132	150	200	90	1450	132
200WQ400-75-132	200	400	75	1450	132
250WQ600-50-132	250	600	50	1450	132
300WQ800-36-132	300	800	36	1450	132
350WQ1100-28-132	350	1100	38	1450	132
350WQ1500-20-132	350	1500	20	980	132
400WQ1700-16-132	400	1700	16	1450	132
400WQ2000-15-132	400	2000	15	980	132
500WQ2800-10-132	500	2800	10	980	132
500WQ3100-10-132	500	3100	10	740	132
600WQ3700-8-132	600	3700	8	980	132
600WQ4000-8-132	600	4000	8	740	132
150WQ220-100-160	150	220	100	1450	160
200WQ400-85-160	200	400	85	1450	160
250WQ600-60-160	250	600	60	1450	160
300WQ800-40-160	300	800	40	1450	160
350WQ1000-35-160	350	1000	35	1450	160
350WQ1200-35-160	350	1200	35	980	160
400WQ1600-20-160	400	1600	20	1450	160
400WQ1600-22-160	400	1600	22	980	160
500WQ2600-16-160	500	2600	16	980	160
500WQ3000-14-160	500	3000	14	740	160
600WQ3700-10-160	600	3700	10	980	160
600WQ4000-10-160	600	4000	10	740	160
150WQ200-110-185	150	200	110	1450	185
200WQ400-90-185	200	400	90	1450	185
250WQ600-70-185	250	600	70	1450	185
300WQ900-40-185	300	900	40	1450	185
350WQ1100-38-185	350	1100	38	1450	185
400WQ1600-25-185	400	1600	25	1450	185
400WQ2000-20-185	400	2000	20	980	185
500WQ3000-15-185	500	3000	15	980	185
600WQ3700-12-185	600	3700	12	980	185
250WQ750-75-200	250	750	75	1450	200
300WQ1000-45-200	300	1000	45	1450	200
350WQ1300-35-200	350	1300	35	1450	200
400WQ1500-30-200	400	1500	30	1450	200
400WQ2300-22-200	400	2300	22	980	200
500WQ3500-15-200	500	3500	15	980	200
600WQ4500-12-200	600	4500	12	980	200
300WQ1200-45-250	300	1200	45	1450	250
350WQ1500-36-250	350	1500	36	1450	250
400WQ1800-30-250	400	1800	30	1450	250
400WQ2200-28-250	400	2200	28	980	250
500WQ3000-21-250	500	3000	21	980	250
600WQ4000-18-250	600	4000	18	980	250
300WQ1000-55-315	300	1000	55	1450	315
350WQ1500-45-315	350	1500	45	1450	315
400WQ2000-36-315	400	2000	36	1450	315
500WQ3500-25-315	500	3500	25	980	315
600WQ4500-20-315	600	4500	20	980	315
500WQ3000-35-400	500	3000	35	980	400
600WQ5000-22-400	600	5000	22	980	400
500WQ4000-32-550	500	4000	32	980	550
600WQ5500-25-550	600	5500	25	980	550

Expand all

STRUCTURE

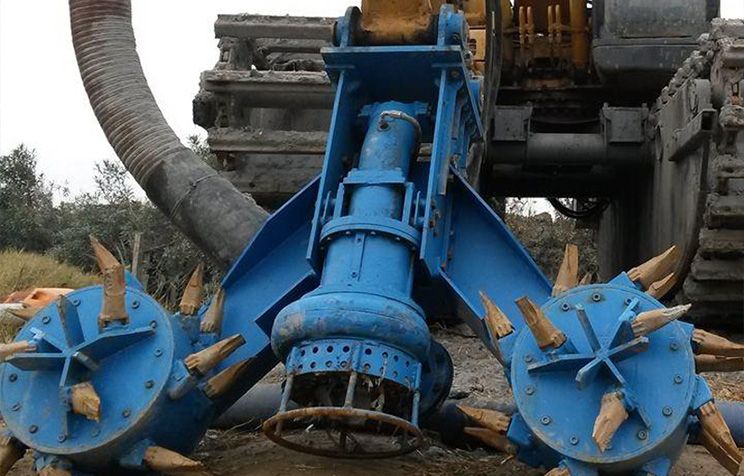

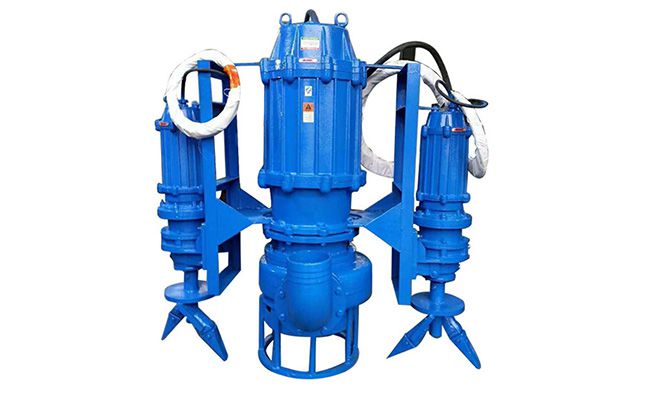

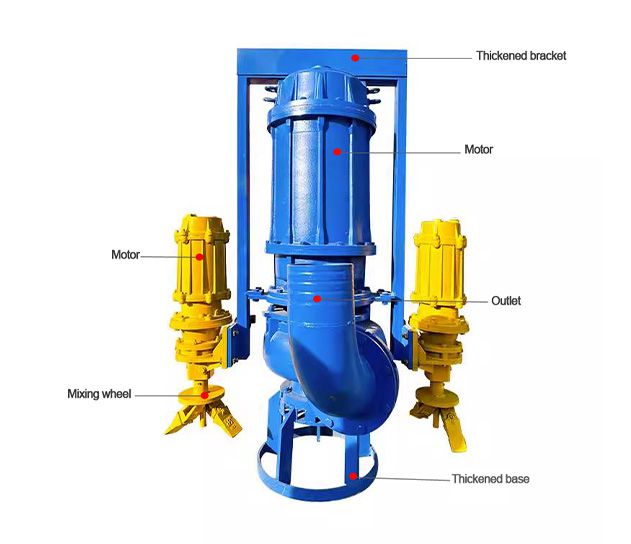

ZJQ series sand mud pump

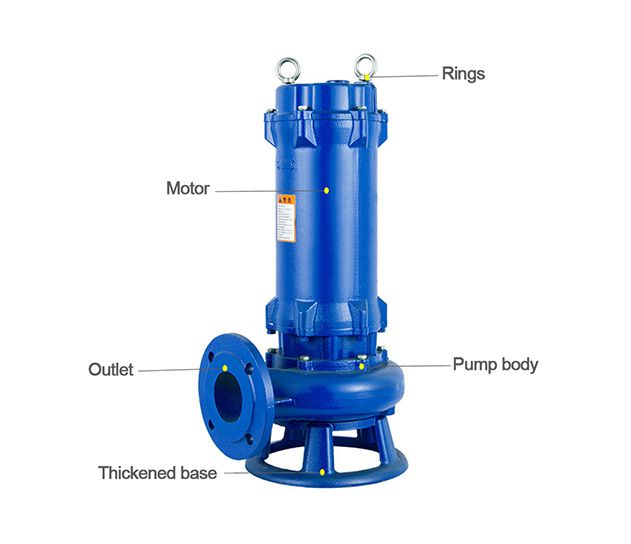

WQ series submersible sewage pump

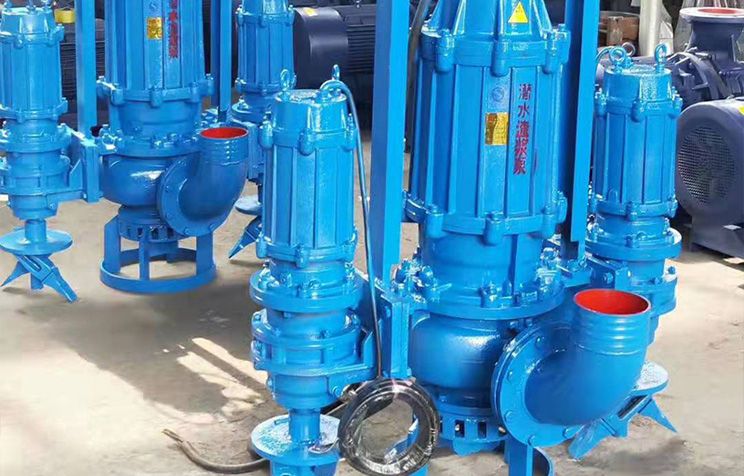

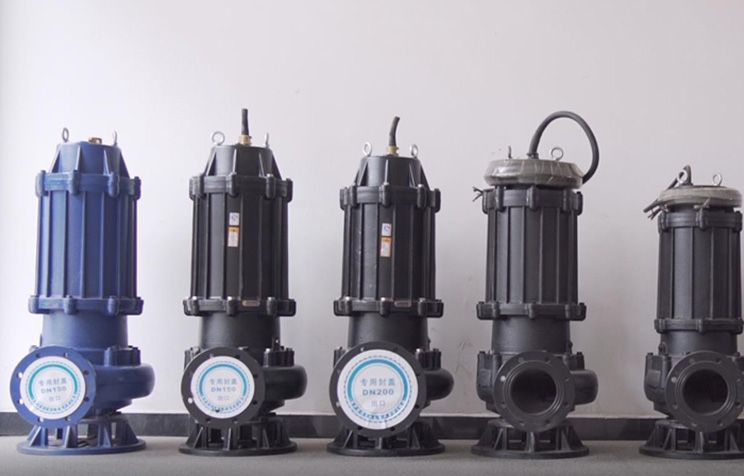

LATEST CASE

Submersible Pump Series

Our products have unique advantages in the fields of sand mining, sewage discharge, mud, sewage and so on.

DETAILS

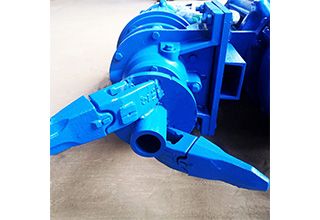

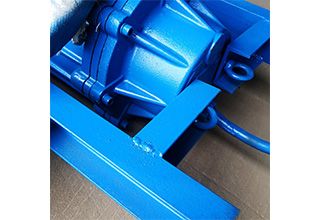

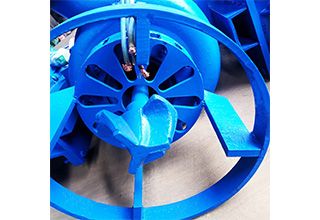

ZJQ series sand mud pump

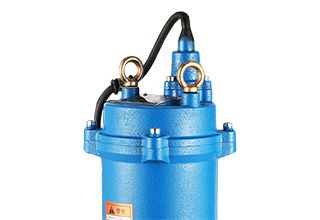

Sturdy metal rings
Reliable metal rings,
Anti-rust, anti-corrosion, wear-resistant,
Humanized design, easy to lift,
Effectively prevent slippage and better protect the pump.
ZJQ series sand mud pump

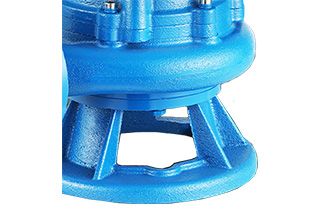

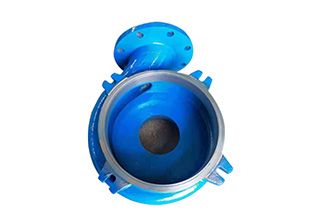

Corrosion-resistant and wear-resistant pump casing
Casting with high chromium alloy material,
High hardness, strong and wear-resistant,
Good flow performance and high efficiency,
Corrosion resistance and long service life.
ZJQ series sand mud pump
External agitator (optional)
For working conditions where the medium has a large proportion,
Assist in mixing evenly,
The agitator can muddy the mud at the bottom of the river,
Enhance sand pumping efficiency and pressurize sand output can be increased by about 50%.
ZJQ series sand mud pump
With mixing wheel at the bottom
The stirring wheel can stir the sludge deposited on the bottom of the water into a turbulent flow and then extract it.
It integrates diving, mixing, sand blowing, and sand pumping,
High sand suction efficiency and more thorough dredging.
WQ series submersible sewage pump
Metal rings
Anti-rust and anti-corrosion
Wear-resistant
Humanized design
Convenient lifting
Effectively prevent slippage
Longer use time
(Note: Do not lift the cable when the pump is in the water)

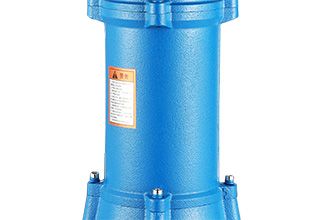

WQ series submersible sewage pump
Thickened pump body
High precision thickened pump body
Beautiful appearance and excellent design
Fix with fastening screws
Rugged and durable, with longer service life
(304/316 stainless steel material can be customized according to use requirements)
WQ series submersible sewage pump
Thickened base
Thickened four-corner base
Uniform force
Internally coated with anti-corrosion and anti-rust materials
Meet various use environments
Enhanced service life
WQ series submersible sewage pump
Stable and reliable motor
100% copper wire motor
Protection class: IP68
Explosion-proof motors can be equipped under special working conditions

WORKING CONDITIONS

Installation and debugging

1. Before starting up, carefully check whether the electric pump is deformed or damaged during transportation, storage and installation, and whether the fasteners are loose or falling off.

2. Check the cable for damage or breaks. If it is damaged in any way, it will need to be replaced to avoid leaks.

3. Check whether the power supply device is safe and reliable, and the rated voltage must be consistent with the nameplate.

4. It is strictly forbidden to use the cable of the pump as the installation and lifting rope to avoid danger.

5. The rotation direction of the pump is counterclockwise when viewed from the water inlet. If the water pump is reversed, as long as any two cables at the wiring positions are exchanged, the water pump can run forward.

6. The water pump should be submerged into the water vertically, and it is not allowed to be placed horizontally. When the water pump is running, the power supply must be cut off.

7. After the electric pump has been used for many times, it must be put into clean water and run for a few minutes to prevent residual sediment in the pump and ensure that the electric pump is clean.

8. When the electric pump is not used for a long time, the electric pump should be taken out of the water to reduce the chance of the stator winding of the motor getting wet and increase the service life of the electric pump.

9. Under normal working conditions, after the electric pump has been working for one year, maintenance should be carried out, the wearing parts should be replaced, the fastening state should be checked, and the bearing grease and mechanical oil in the oil should be checked. Replenish or replace chambers to ensure pump is in good condition.

Our quality can be trusted

Our products have unique advantages in food, mining, electric power, farmland irrigation, river dredging, pipeline pressurization, sewage treatment and other fields.

Hot Products

Interested in our Woven Metal Interiors

OurWoven Metal Interiors is beautiful and built to last, while providing a variety of functional applications.
